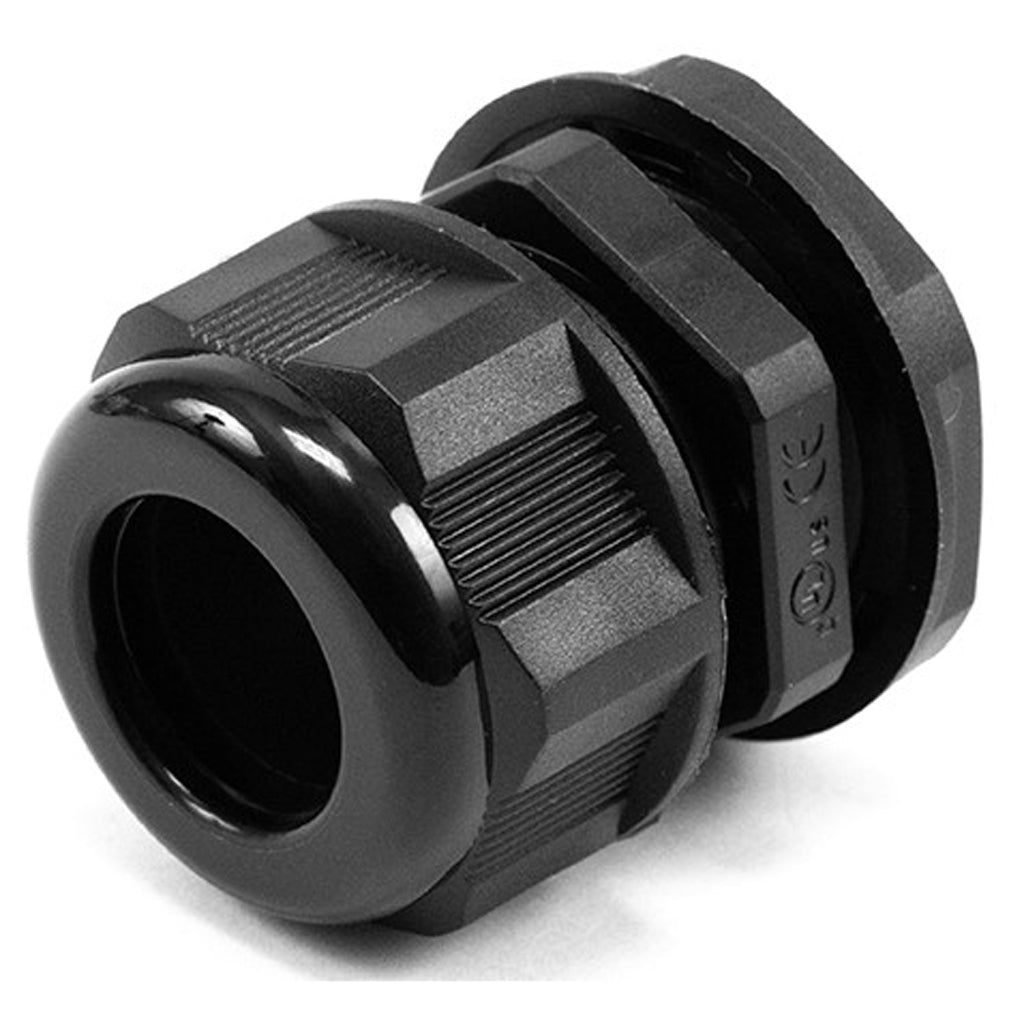

- Liquidtight cordgrip made from nylon
- Available in black (RAL 9005)
- Used where cable is entering or leaving an enclosure.
- Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
- The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
- Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
- Nylon locknut and EPDM oring included (as shown).
- Operating Temperatures:
- Static state: 40°C to 100°C (up to 120° instantaneous)
- Dynamic state: 20°C to 80°C (up to 100° instantaneous)
- Designed to meet NEMA Type 4 4X 6 6P 12 & 13 Protection to IP68.
- UL94V2 flammability rating.
- UL listed.
