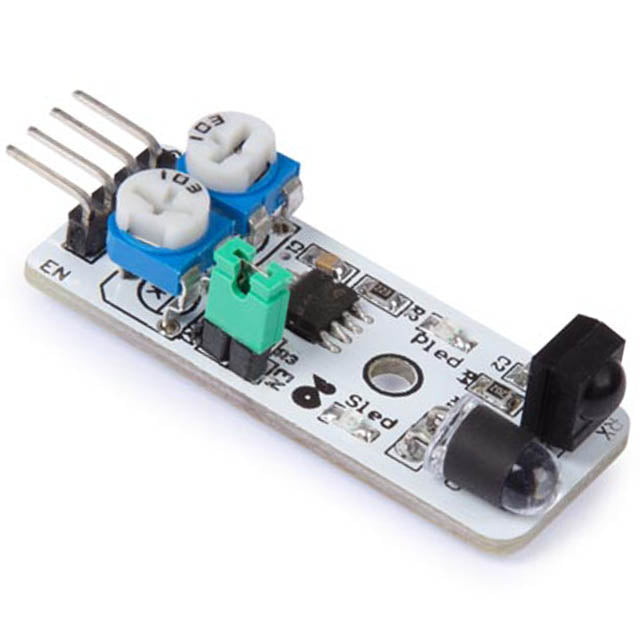

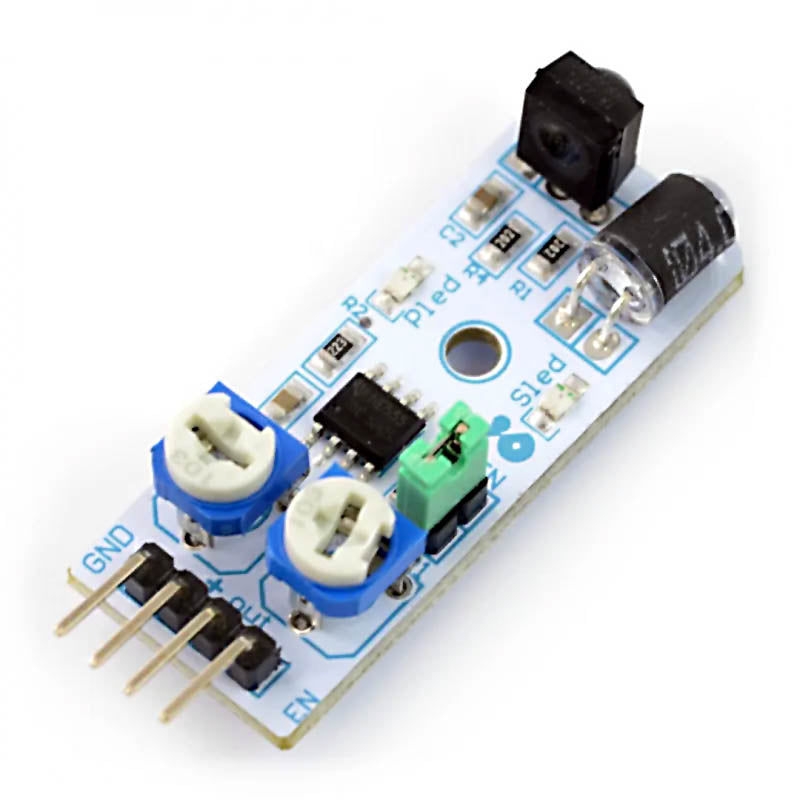

This module is an inexpensive solution for an obstacle avoidance sensor
perfect for robotic projects and very easy to interface directly with
Arduino® and compatible boards. The module has two potentiometers one
to control frequency and one to control the intensity.
Specifications
- operating voltage: 3.3 V to 5 V
- Output: Digital (On/Off)
- Detection threshold: Adjustable by 2 trimmers
- distance range: 2 to 10 cm
- adjustment R6: frequency adjustment 38 KHz (already optimised)
- adjustment R5: IR LED power adjustment (already optimised)
- Operating temperature: 10°C to +50°C
- Effective angle: 35°
- I/O interface: 4 wire interface ( / + / S / EN )
- dimensions: 45 x 16 x 10 mm
- weight: 9 g
