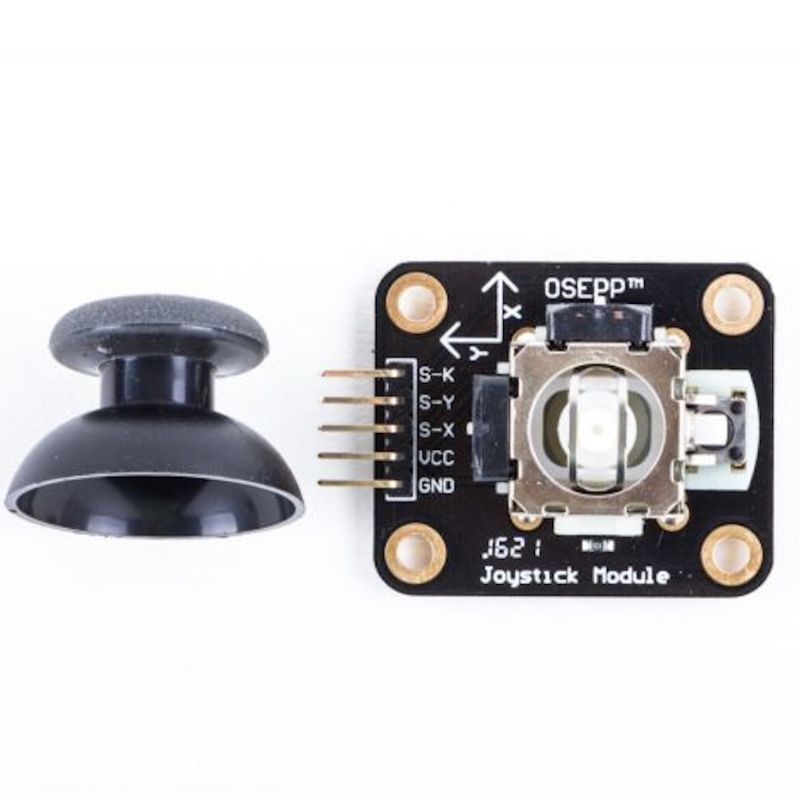

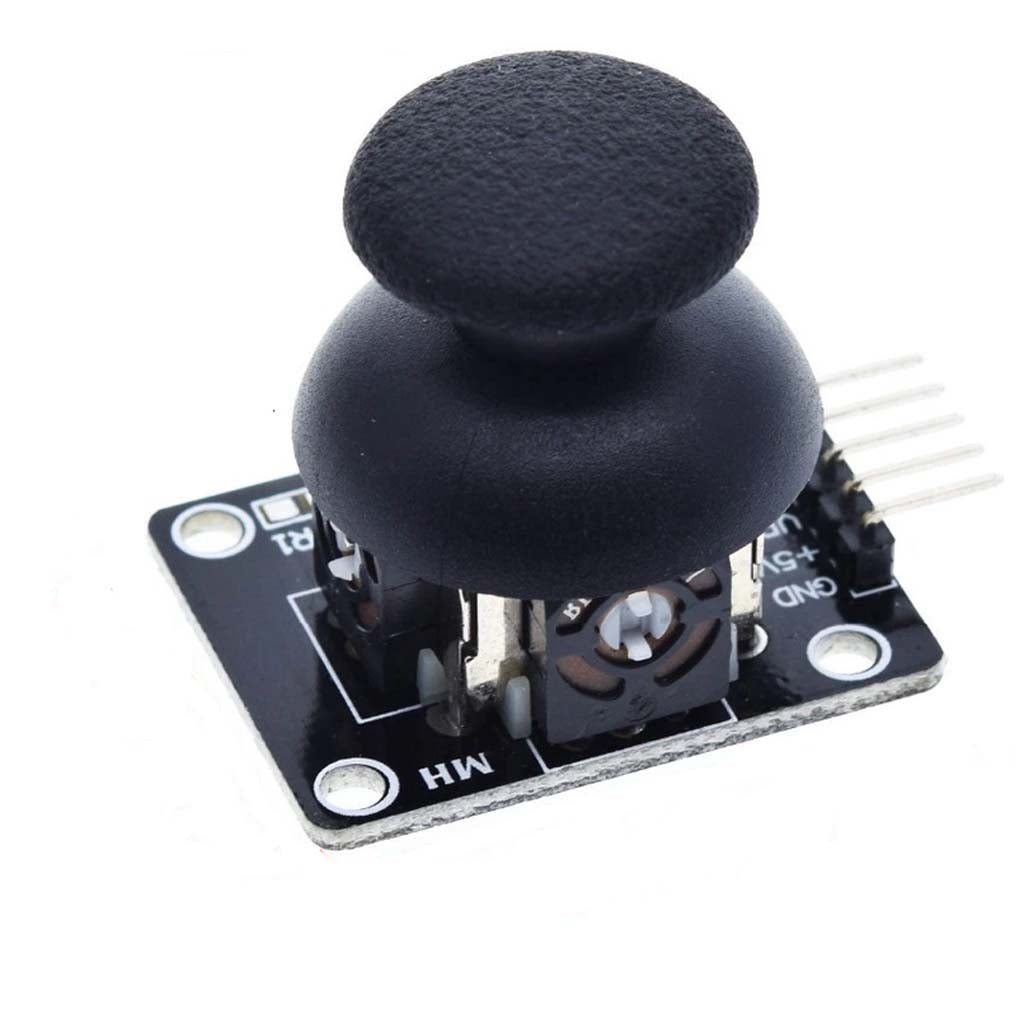

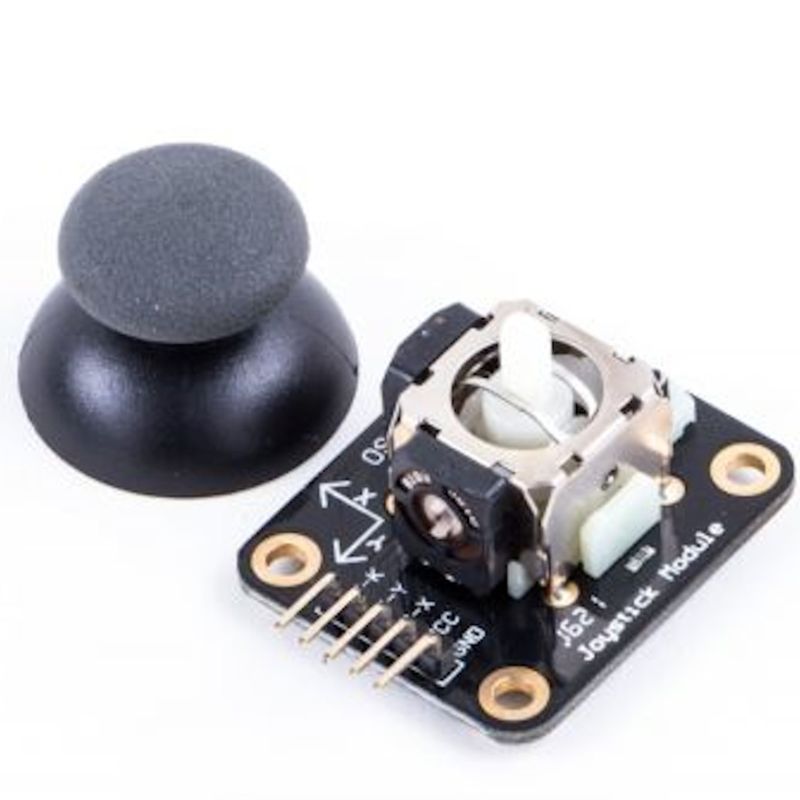

Twoaxis key joystick sensor module by the use of PS2 rocker potentiometer with (X Y) 2axis analog output (Z) 1 button digital output. With the Arduino sensor expansion board can produce remote control and other interactive works. In addition this product in order to allow customers to more easily with the arduino expansion board and other standard interfaces in the design of the X Y Z axis of the circuit are separate leads the user can use 3pin ARDUINO special line really plug into the expansion board .
Product performance:
1. Input voltage range: DC 3.3V to 5V
2. Output signal: the module special twoway analog output and a digital output interface the output value corresponding to (X Y) biaxial offset the type of analog; keys that the user press the Z axis Its type is digital switch.
3. Arduino controller can be programmed the sensor expansion board plug complete with creative remote interactive works.
4. Cross joystick is a bidirectional 10K resistor with the rocker in different directions the tap resistance with the change. This module uses 5V power supply the original state of X Y read voltage of 2.5V or so when pressed with the arrow direction the read voltage value increases with the maximum to 5V; arrows in the opposite direction to press read the voltage decreases The minimum is 0V.
