VMA208 - ACCELERATION SENSOR MODULE 3-AXIS DIGITAL MMA8452

  • Sale
  • Regular price $14.95 CAD

12 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

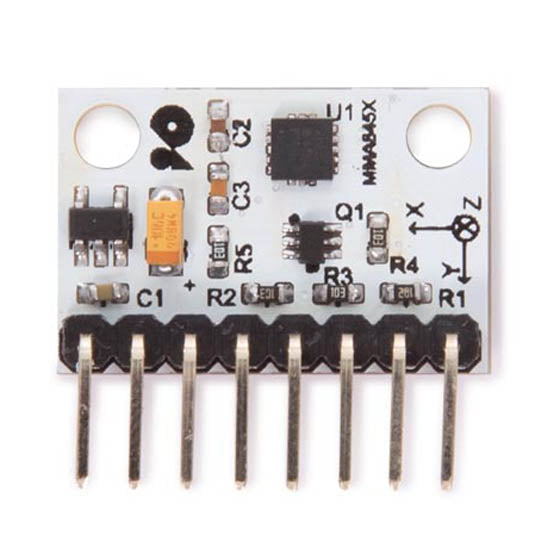

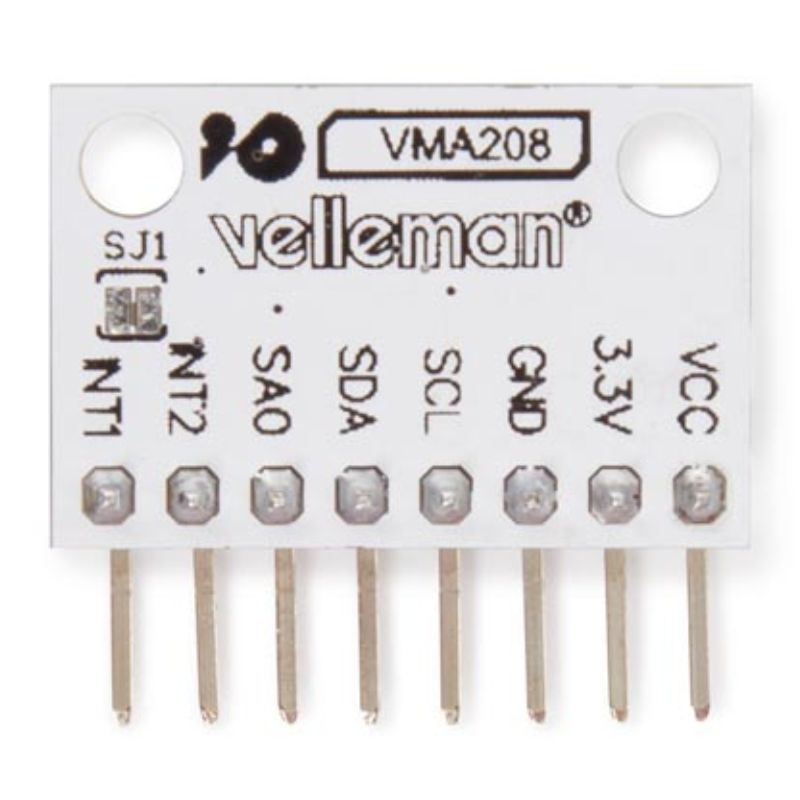

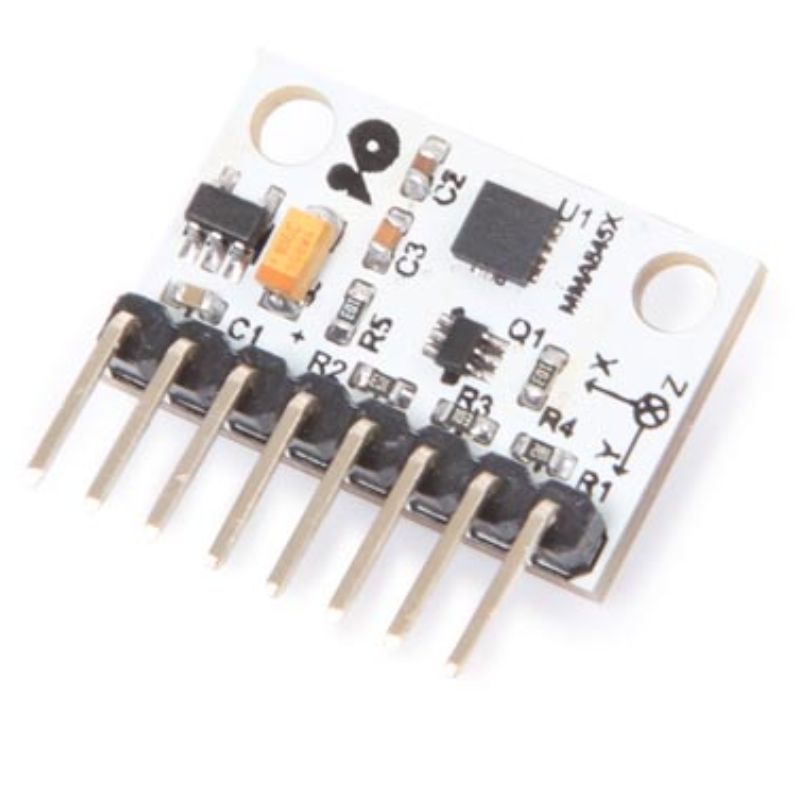

The MMA8452Q accelerometer module is a smart lowpower threeaxis capacitive MEMS accelerometer with 12 bits of resolution. It is packed with embedded functions with flexible user programmable options configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. It has user selectable full scales of +2g/+4g/+8g with high pass filtered data as well as non filtered data available realtime.
Features

+2g/+4g/+8g dynamically selectable fullscale
output data rates (ODR) from 1.56 Hz to 800 Hz
12bit and 8bit digital output
I2C digital output interface (operates to 2.25 MHz with 4.7 kO pullup)
two programmable interrupt pins for six interrupt source
three embedded channels of motion detection
orientation (portrait/landscape) detection with set hysteresis
high pass filter data available realtime

Specifications

supply voltage: 1.95 V 3.6 V
interface voltage: 1.6 V 3.6 V
current consumption: 6 µA 165 µA
