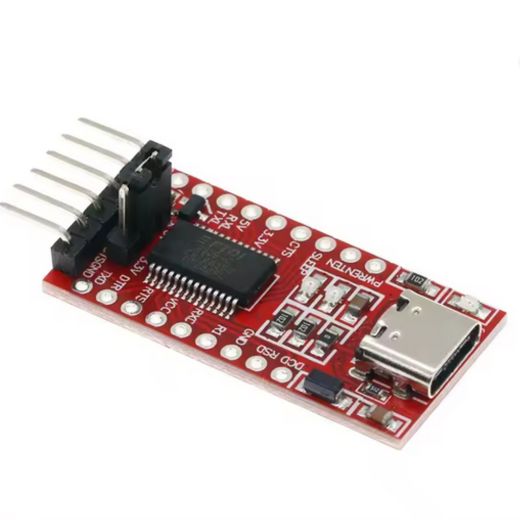

This USB to TTL serial adapter is ideal for many uses including: programming microprocessors such as ARM AVR; working with computing hardware like routers and switches; serial communication with many devices including GPS devices or serial terminals on devices like Raspberry Pi.
Unlike most USB to TTL serial adapters this adapter supports both 5V and 3.3V operation! Simply set the jumper as required to choose between 5V and 3.3V as labelled on the board.
The FTDI adapter comes with a fitted rightangle connector allowing you to use it straight away. If you need to access any of the other inputs or outputs of the FT232RL all the useful signals are provided as throughhole solder pads – ideal for use with straight headers into a breadboard for example.
Features:
- Product performance: Standard interface compatible with a variety of For Official Controller OriginalFT232Chip stable performance With power sending receiving indicator working status Have 3.3V And 5V Power supply options Do ordinary USB Serial TTL Modules download STCSCM
- Introduction FT23R
- With the development of computer technology parallel and serial ports on the PC slowly disappeared and now even the parallel port of the desktop are rare . But for engineers parallel and serial interfaces are essential especially in the serial . For computers without serial ports the most convenient solution is to use USB to serial chip to virtual serial port out many manufacturers have produced such a chip such as silicon LABS of CP210x series TI ‘s TUSB3410 Nanjing Qin Heng CH34x series FTDI’s FT232 series Prolific ‘s PL230x series Echo ‘s ARK3116 so on. From the stability point of view the most reliable or FT232 series you can use it to ease the debugging process without fear of a blue screen appears.
- FT232R chip is a singlechip solution generally do not need to use basic peripherals and even crystal USB matching resistor place the product information have been integrated in the internal EEPROM of the . FT232R There are some more useful features details can be found FT232R data sheet .
- Datasheet Download : www.ftdichip.com/Products/ICs/FT232R.htm
- Introduction: hardware
- using FTDI FT232RL chip companies ;
- FT232RL chip lead all the signal port TTL / CMOS level ;
- RXD / TXD Transceiver Communications LED ;
- USB powered 5V or 3.3V
Pin functionality
- DTR – Reset the other hardware device
- RX – Used to receive the serial data.
- TX – Used to transmit the serial data.
- VCC – Provides 5V or 3.3V voltage output as per the requirement
- CTS – Enable or disable the programming mode of the device
- GND – Ground pin
