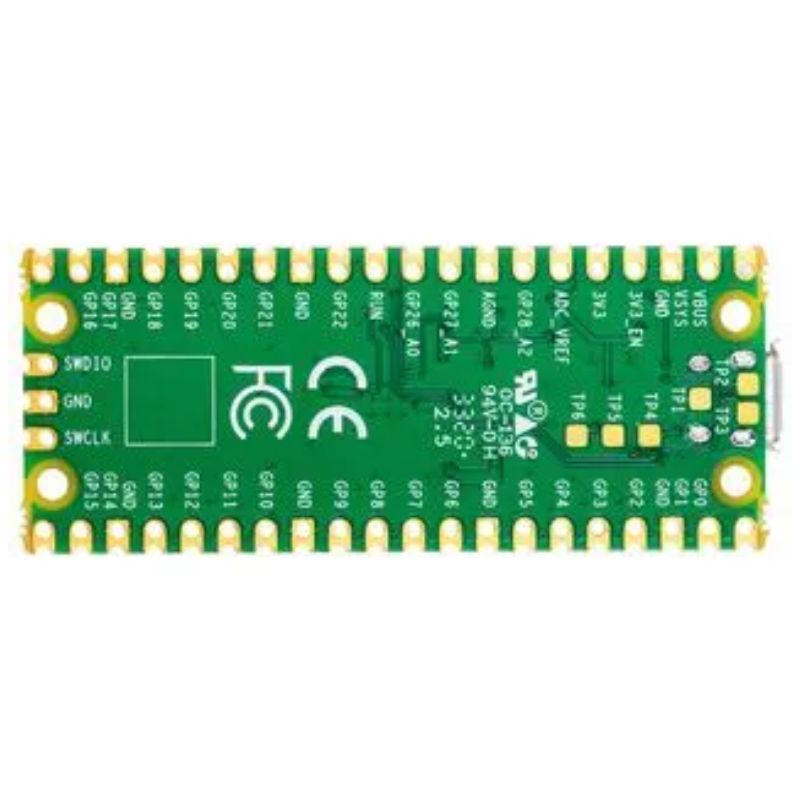

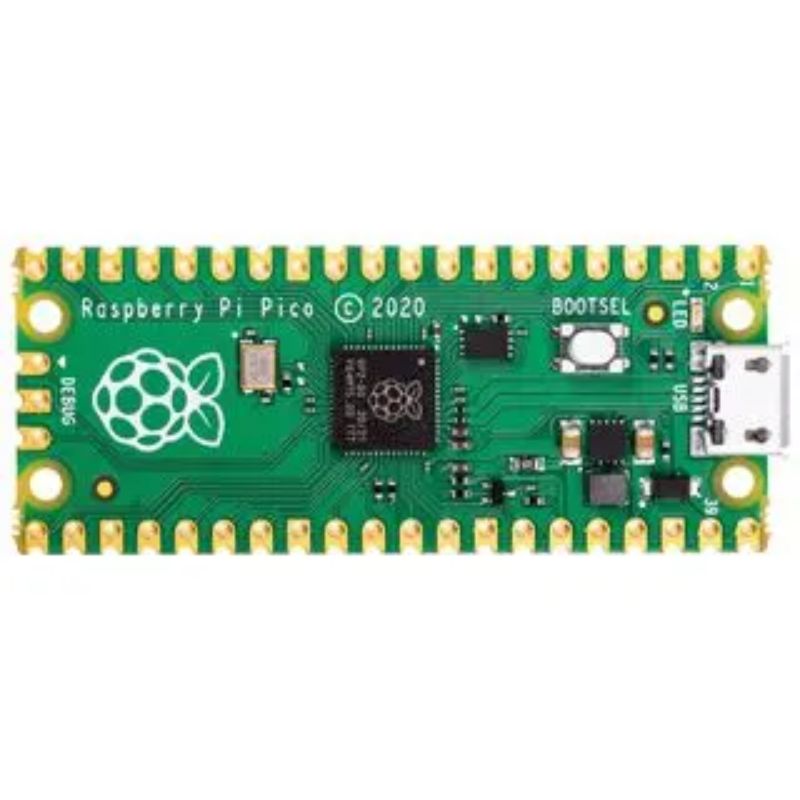

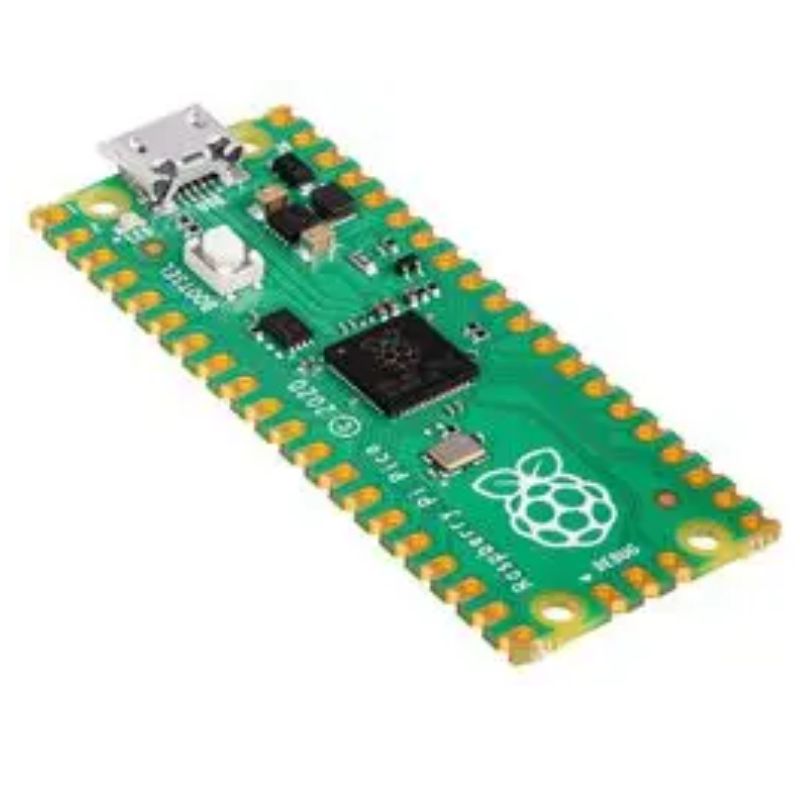

The Raspberry Pi Pico is the first product built on silicon designed inhouse at Raspberry Pi (“Raspberry Silicon”). At its heart is RP2040 a Raspberry Pidesigned chip which features two ARM CortexM0+cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

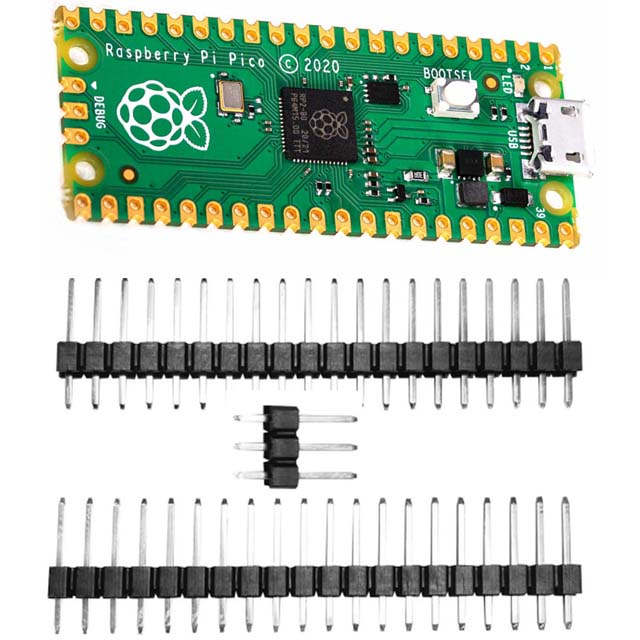

A a solderin header (like two sets of Break Away Header Straight 40Pin cut into 2x20 strips and 1x3 strip) Once the header pins are in place the Pico can be attached directly to a breadboard for wiring and prototyping.
Key Features
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dualcore Arm Cortex M0+ processor flexible clock running up to 133 MHz
- 264KB of SRAM and 2MB of onboard Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Lowpower sleep and dormant modes
- Draganddrop programming using mass storage over USB
- 26 × multifunction GPIO pins (3.3V ONLY)
- 2 × SPI 2 × I2C 2 × UART 3 × 12bit ADC 16 × controllable PWM channels
- Accurate clock and timer onchip
- Temperature sensor
- Accelerated floatingpoint libraries onchip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
