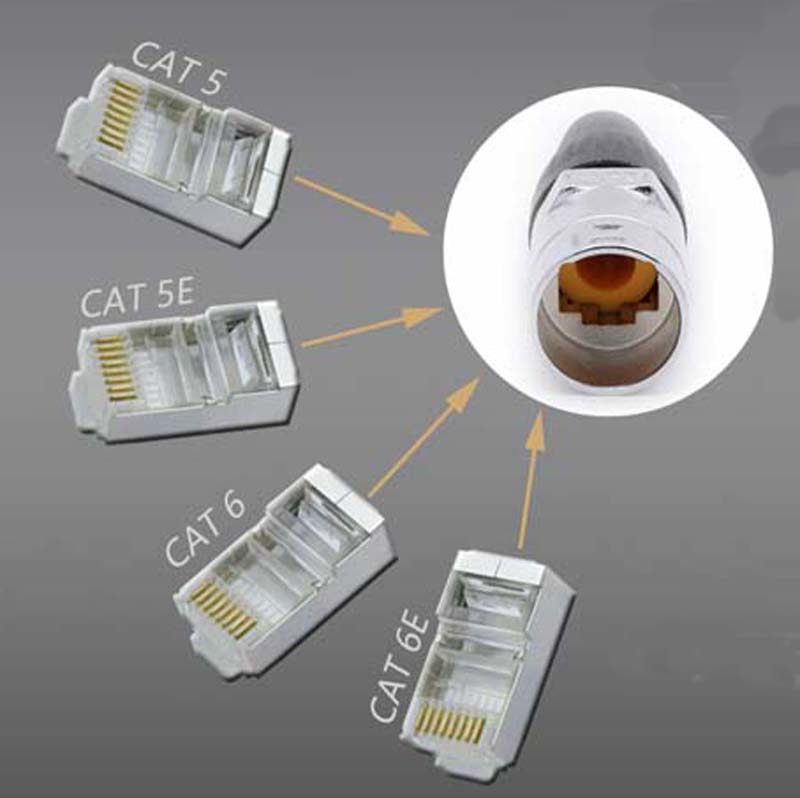

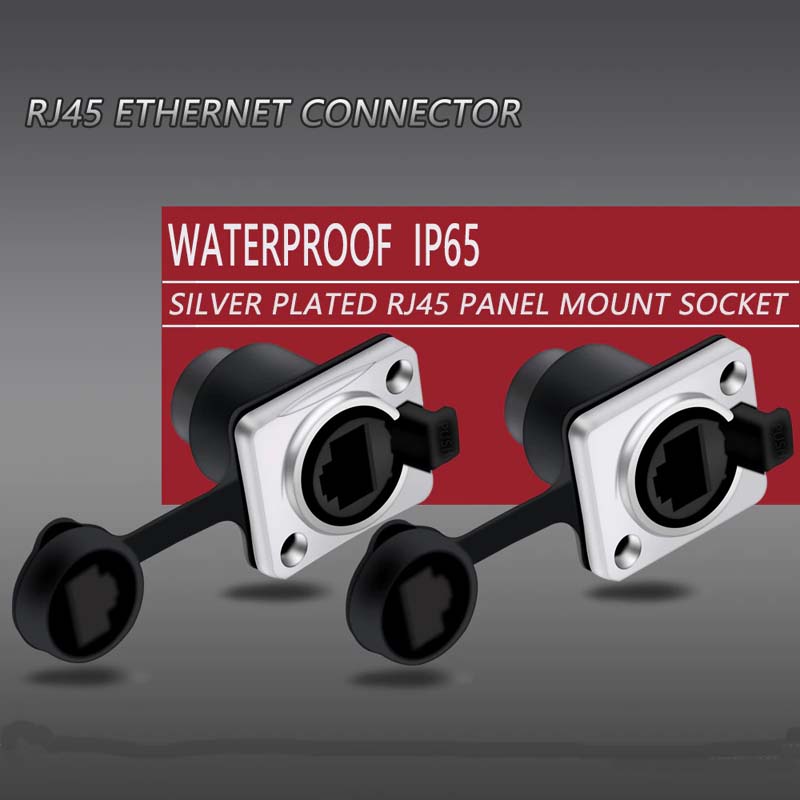

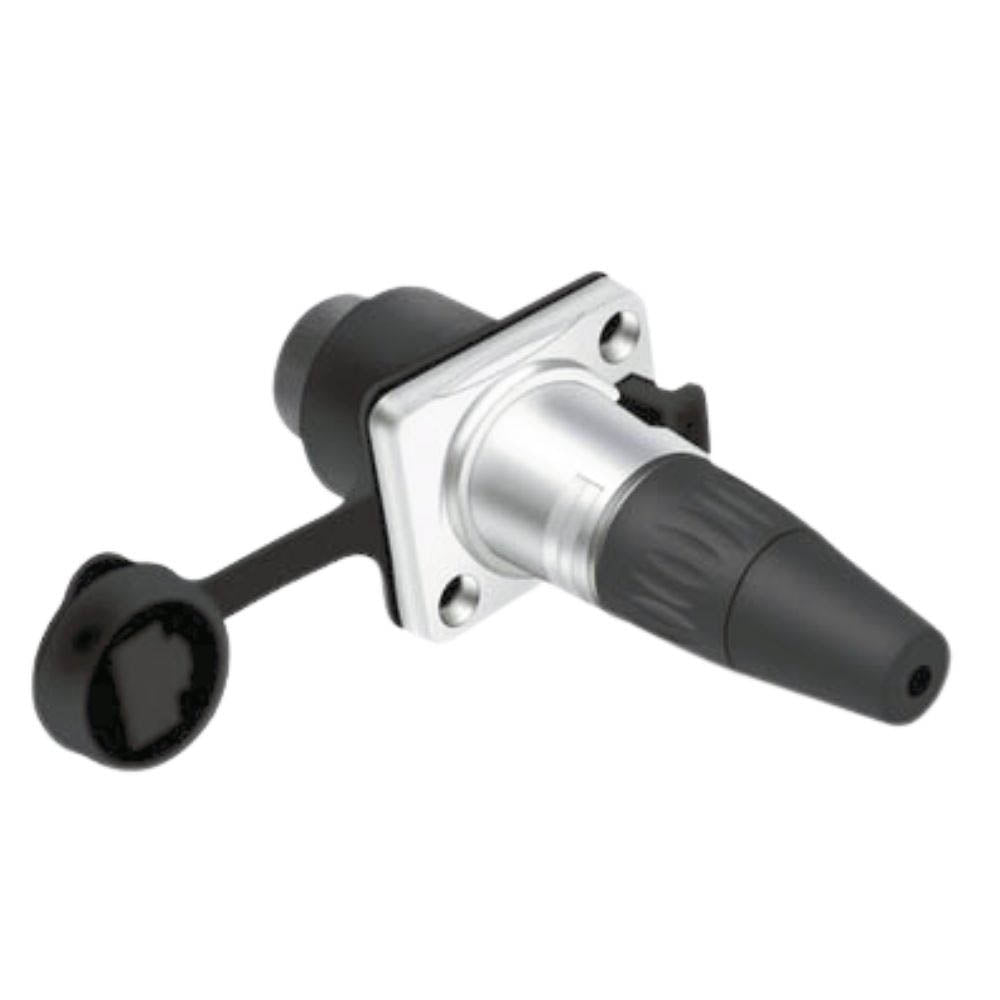

8P8C RJ45 PLUG Waterproof Housing IP65 ( RJ45 Plug Networking crimp connector Not ProvidedNeed to buy Separately) + RJ45 Waterproof IP65 Panel Mount Coupler with cover.
Connecting mode: Plug/unplug
Protection level: IP65
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: Φ5.5mm ~Φ7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Durability: ≥500 mating & Disconnecting cycles
Temperature rating: 40°C~80°C
Method of connecting cable: Solder
Prevent the combustion level: UL94V0
Temperature rise: 20A per contact at 30°C 25A per contact at 40°C 30A per contact at 50°C.
