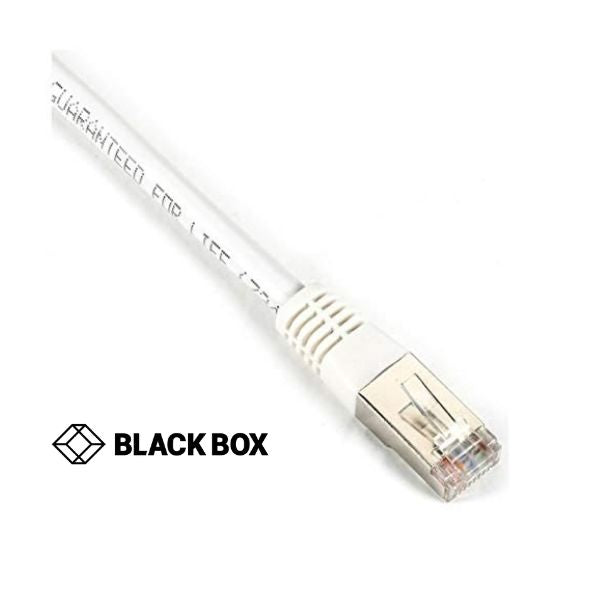

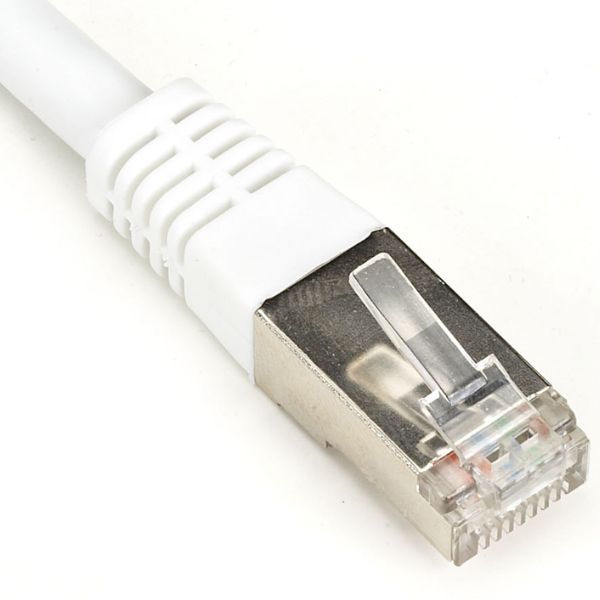

CAT5e 100MHz Molded Snagless Solid Ethernet Patch Cable Shielded (F/UTP) CM PVC (RJ45 M/M)
100MHz backbone cable for CAT5e runs
Solid dependable CAT5e backbone cable for new and existing networks
Meets or exceeds CAT5e specifications
Ideal for use in data audio and video applications and for horizontal network connections
ACR 13.3 dB/100 m at 100 MHz
ACRF 23.8 db/100 m at 100 MHz
Attenuation 22.0 dB/100 m at 100 MHz
Cable Outside Diameter (Nominal) 0.2 (6.1 mm)
Capacitance Unbalance (Pair to Ground) 330 pF/100 m maximum
Conductor 24 AWG solid bare copper
Delay Skew (Maximum) 45 ns/100 m (328 ft.)
Impedance 1000 ± 15%
Insulation HDPE: 0.009 (0.225 mm)
Jacket PVC; CM; RoHS compliant
NEXT 35.3 dB/100 m at 100 MHz
Propagation Delay 538 ns/100 m at 100 MHz
PSACR 10.3 dB/100 m at 100 MHz
PSACRF 20.8 dB/100 m at 100 MHz
PSNEXT 32.3 dB/100 m at 100 MHz
Return Loss 20.1 dB/100 m at 100 MHz
Standards UL® 444; ISO/IEC 11801; TIA/EIA568B.21 CAT5e; 2002/95/EC (RoHS)
Temperature/Voltage Rating 167° F (75° C) at 300 V
