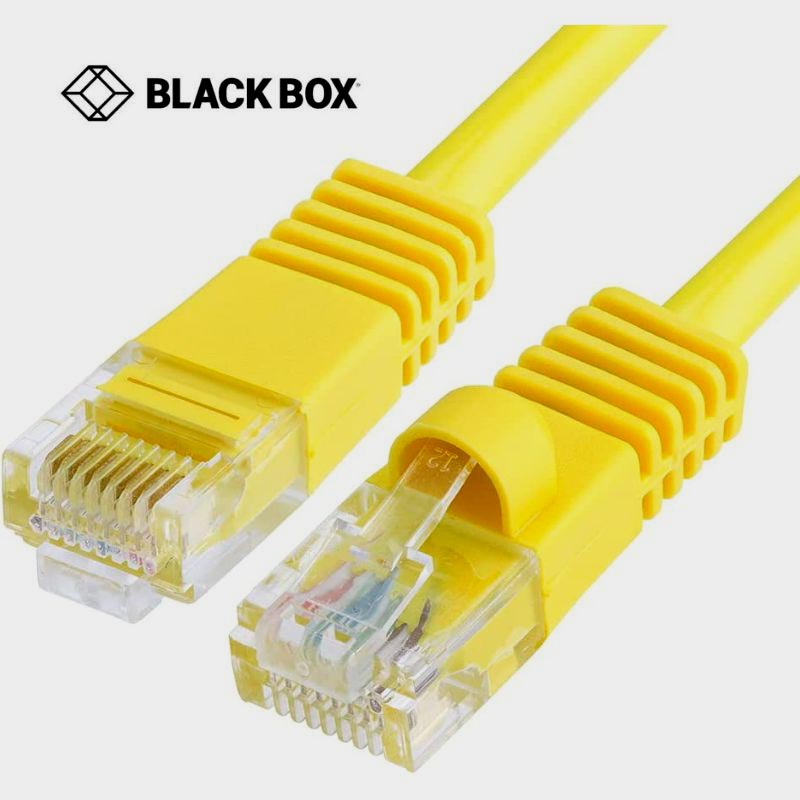

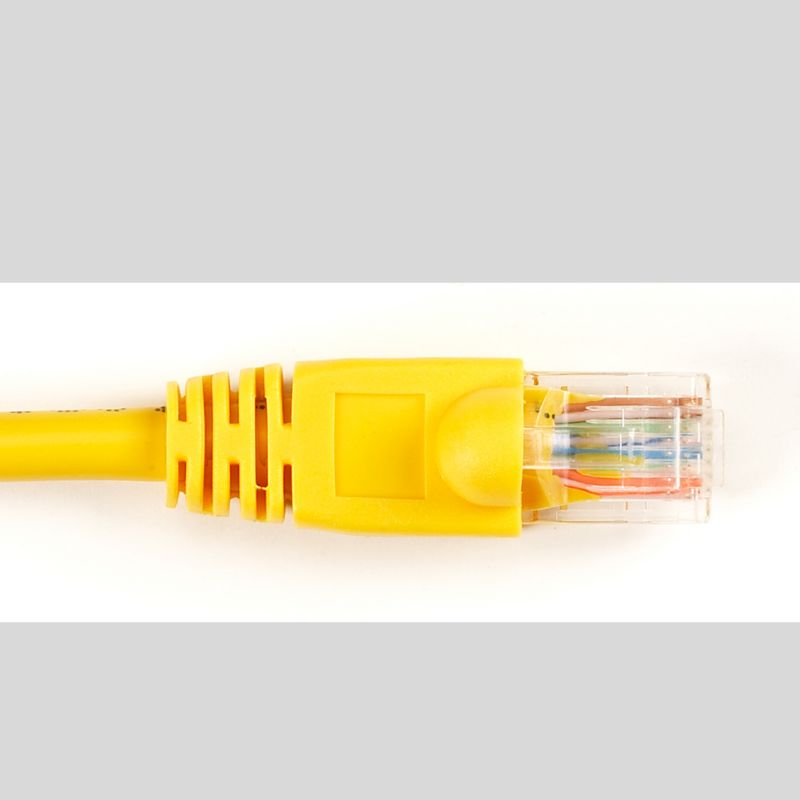

GigaTrue® CAT6 550MHz Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC No Boot (RJ45 M/M)
- High quality stranded 24 AWG unshielded copper wire
- Tested to 550 MHz and meets or exceeds CAT6 specifications
- Cable construction: stranded 24AWG copper wire RJ45 connectors 4pair T568B PVC jacket straightpinned
- For 1000BASET 100BASETX 100BASEVG 155Mbps ATM 100Mbps FDDI/CDDI and other highspeed applications
| General | |
| Conductor Gauge | 24 AWG |
| Delay Skew (Maximum) | 25 ns/100 m (328 ft.) |
| Impedance | 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz |
| Mutual Capacitance | 56 pF/m (maximum) |
| NEXT | 45.0 dB at 100 MHz; 39.0 dB at 250 MHz |
| PSACR | 32 dB (typical) at 100 MHz |
| PSNEXT | 43.0 dB at 100 MHz; 37.0 dB at 250 MHz |
| Resistance | 9.09 ohms/100 m (328 ft.) |
| Return Loss | 22.5 dB at 100 MHz; 20.5 dB at 250 MHz |
| Standards | TIA/EIA568B.21 Category 6 |
| Attenuation (Maximum) | 23.6 dB at 100 MHz; 39.1 dB at 250 MHz |
| Structured Return Loss | 22.5 dB at 100 MHz; 20.5 dB at 250 MHz |
| Item Specifications | |
| Connector A Type/Gender | (1) RJ45 (Male) |
| Connector B Type/Gender | (1) RJ45 (Male) |
