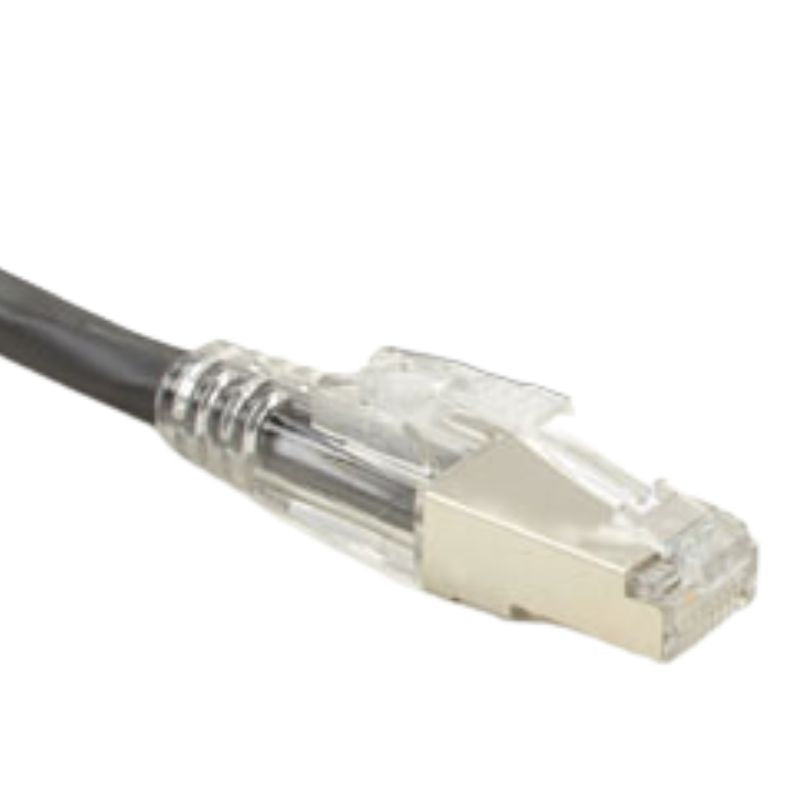

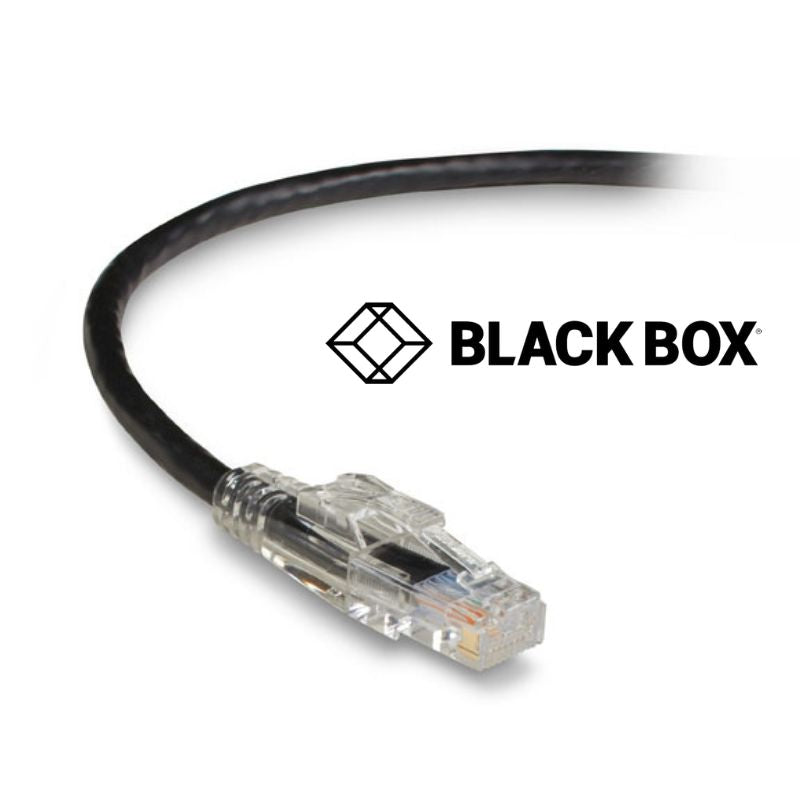

GigaBase® 3 CAT5e 350MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
GigaBase 3 Premium Cable constructed to exceed industry standards
Cable tested to 350 MHz surpassing 100MHz CAT5e standard
Cabling ETL verified to ANSI/TIA568C.2
50micron goldplated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles
Offers superior nearend crosstalk (NEXT) compared to standard CAT6 cable
Snagless boots prevent connector damage due to snags during installation
Ideal for highspeed applications
Electrical Performance
Attenuation (Maximum) 22.5dB at 100 MHz 45.8dB at 350MHz
NEXT (Minimum) 35.3dB at 100 MHz 27.1dB at 350MHz
PSNEXT (Minimum) 32.3dB at 100 MHz 24.1dB at 350MHz
Return Loss (Minimum) 19dB at 100 MHz 4.56dB at 350MHz
General
Approvals TIA/EIA568C.2 Category 5e
Conductor Gauge 24 AWG
Impedance 100+/15 ohms
Jacket CM PVC
Shielding UTP
Conductor Type Stranded
Standards TIA/EIA568C.2 CAT5e
Cable Frequency Up to 350 MHz
Connector Plating 50µ
Connector Type Snagless
