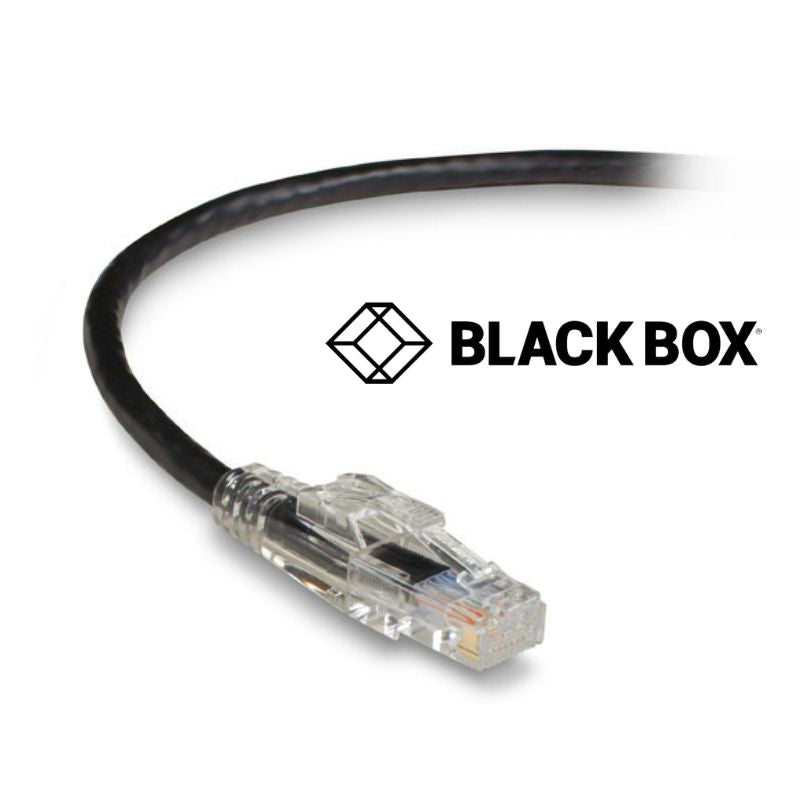

GigaBase® 3 CAT5e 350MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
GigaBase 3 Premium Cable constructed to exceed industry standards
Cable tested to 350 MHz surpassing 100MHz CAT5e standard
Cabling ETL verified to ANSI/TIA568C.2
50micron goldplated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles
Offers superior nearend crosstalk (NEXT) compared to standard CAT6 cable
Snagless boots prevent connector damage due to snags during installation
Ideal for highspeed applications
- Connect line of basic cabling is constructed to industry standards
- Tested to exceed CAT5e industry standard of 100 MHz
- Cabling is ETL verified to ANSI/TIA568C2
- Snagless boots prevent connector damage due to snags during installation
- Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications
| General | |
| Approvals | RoHS CE UL/cUL |
| Return Loss (Minimum) | 19dB at 100MHz |
| Impedance | 100+/15 ohms |
| NEXT (Minimum) | 35.3dB at 100MHz |
| Connector Plating | Gold Flash |
| Shielded | No |
| Snagless Connector | Yes |
| Standards | TIA/EIA568C.2 Category 5e |
| Attenuation (Maximum) | 22.5dB at 100MHz |
| Cable Type | Stranded |
| PSNEXT (Minimum) | 32.3dB at 100MHz |
| Conductor | 26 AWG |
| Frequency | Up to 100 MHz |
| Jacket | CM PVC |
| Item Specifications | |
| Connector A Type/Gender | (1) RJ45 (Male) |
| Connector B Type/Gender | (1) RJ45 (Male) |
