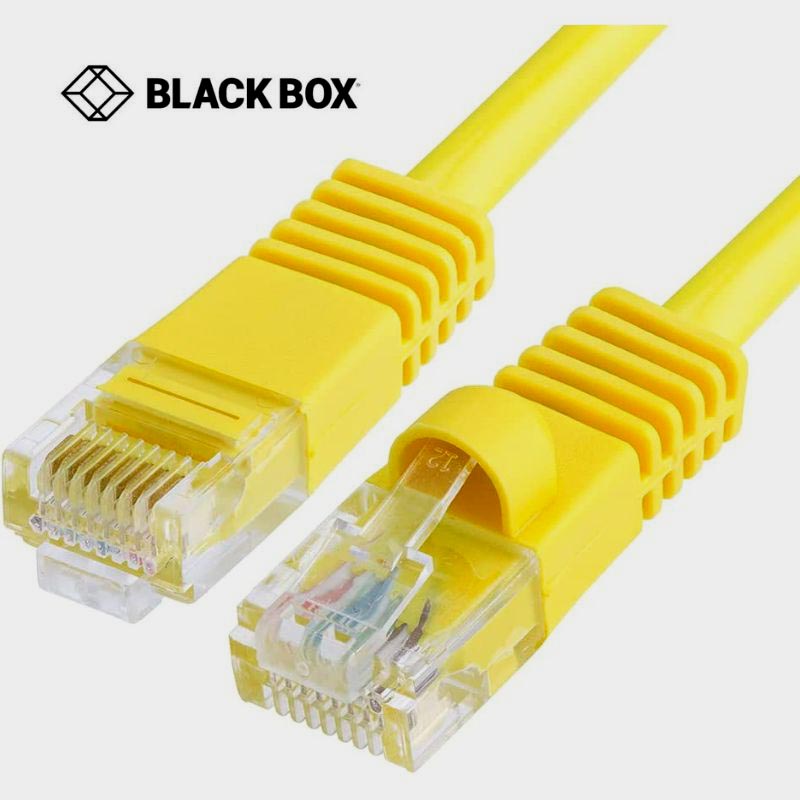

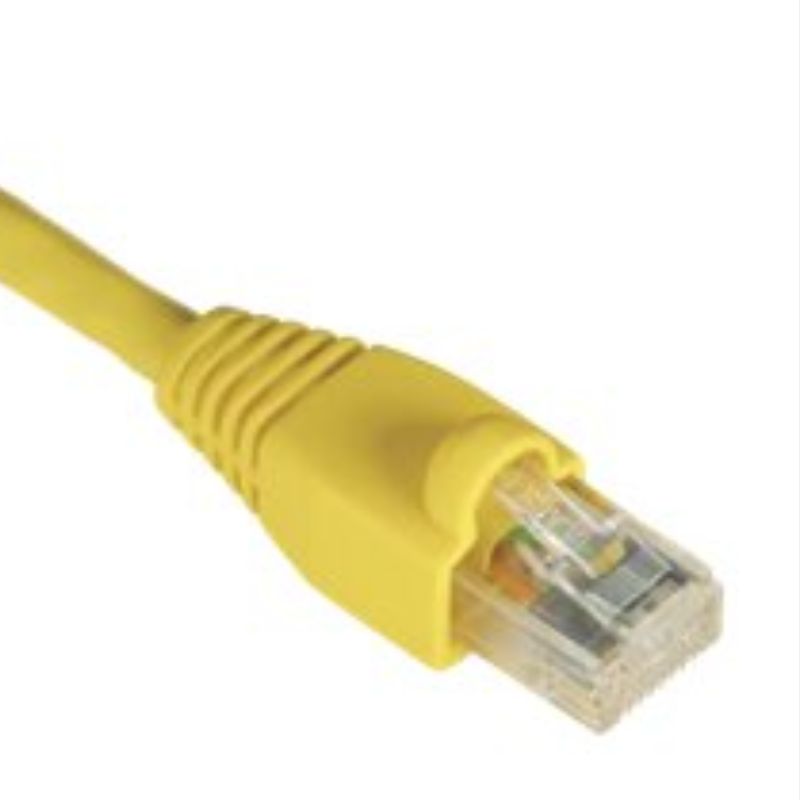

GigaBase® CAT5e 350MHz Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
- Constructed to exceed industry standards
- Tested to 350 MHz surpassing 100MHz CAT5e standard
- Cabling ETL verified to ANSI/TIA568C2
- 50micron goldplated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior nearend crosstalk (NEXT) compared to standard CAT5e cable
- Snagless boots prevent connector damage due to snags during installation
- The cable is ideal for 1000BASET 100BASETX 10BASET and other highspeed applications
General Approvals RoHS CE UL/cUL Snagless Connector Yes Shielded No Connector Plating 50μ Attenuation (Maximum) 22.5dB at 100MHz 45.8dB @ 350MHz Cable Type Stranded Conductor Gauge 24 AWG Frequency Up to 350 MHz Impedance 100 ± 15 ohms Jacket CM PVC NEXT (Minimum) 35.3dB at 100MHz 27.1dB at 350MHz PSNEXT (Minimum) 32.3dB at 100MHz 24.1dB at 350MHz Return Loss (Minimum) 19dB at 100MHz 4.56dB at 350MHz Standards TIA/EIA568C.2 Category 5e Item Specifications Connector A Type/Gender (1) RJ45 (Male) Connector B Type/Gender (1) RJ45 (Male)
