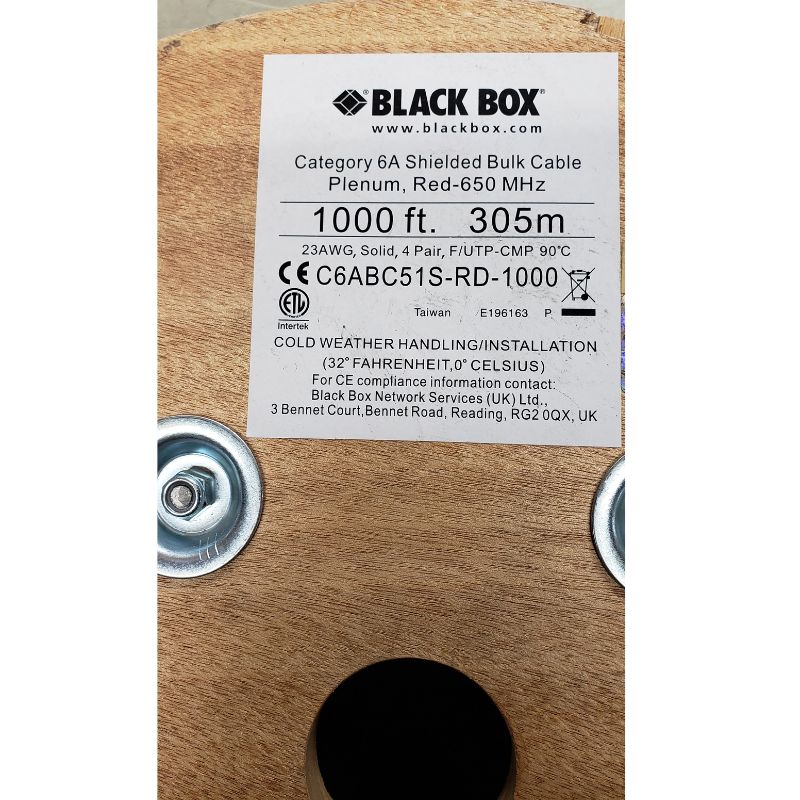

C6ABC51S-RD-1000 - CABLE CAT6A FT6 SOL SH RED 1000F 4PR 23AWG 650MHZ F/UTP CMP SPOOL

148 In-Stock.

To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.

All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

cUL Approved

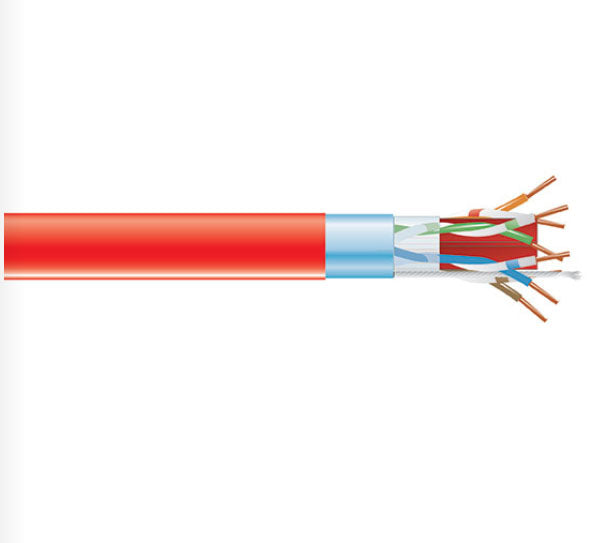

Constructed from Internal separator FEP insulation dielectric tape drain wire aluminum/Mylar tape
A center isolation member maintains pair separation for optimal NEXT performance
CAT6A UTP comes with 0.271 outside diameter
Tested up to 650 MHz
Foil shield construction virtually eliminates alien crosstalk
Supports IEEE 802.3 and 10GBASET and TIA 568C.2. ETL tested

ACRF	28 dB at 100 MHz; 20 dB at 250 MHz; and 14 dB at 500 MHz
Bend Radius	2.17” (55 mm)
Conductors	4pair 23 AWG Solid Copper
Construction	Internal separator FEP insulation dielectric tape drain wire aluminum/Mylar® tape
Insertion Loss (Maximum)	19.1 at 100 MHz; 45.3 at 500 MHz
Insulation	Fluoropolymer (FEP)
Jacket	FR PVC (Low Smoke)
NEXT	45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
Frequency	650MHz
Safety Testing	NFPA262 CMP
Shielding	Aluminum Foil/Mylar Tape with Tinned Drain Wire (F/UTP)
Outside Diameter	0.271” (6.9 mm ± 0.2 mm)
PSNEXT	43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz
Return Loss	20.1 at 100 MHz; 15.5 at 500 MHz
Standards	IEEE 802.an; TIA 568C.2; UL® ETL Tested
