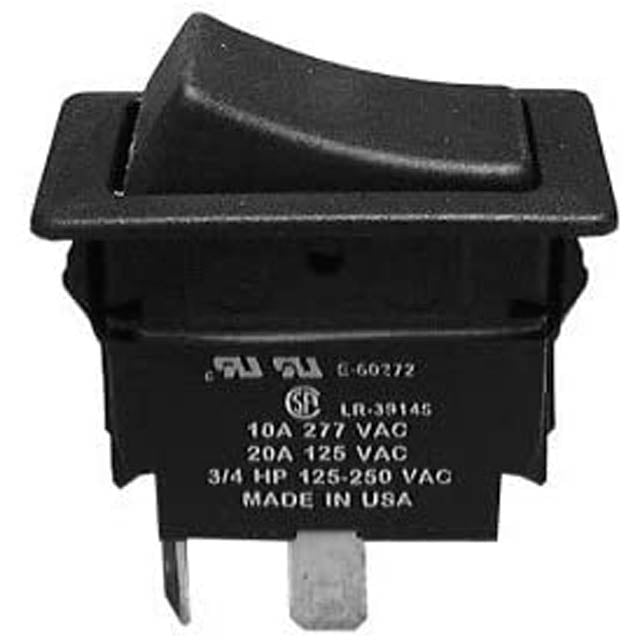

SINGLE POLE SINGLE THROW ( SPST ) HEAVY DUTY ROCKER SWITCH
Moisture and Dust Resistant
Current Rating: 20A @ 125V AC 10A @ 277V AC
3/4 HP @ 125250V AC
Initial Contact Resistance: 5 Meg ohm (Max.)
Insulation Resistance: 100 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 minute
Gasket: Molded Elastomer
Case: UL94 Flame Class 94v2
Contact Material: Brass
Terminal Material: Brass
Terminal Type: .250” Quick Connect
Recommended Mounting Hole:
+.01: 9.381 9.00: 9.127
Fits .830 (21.08) ; 1.4:0 (36.83) panel cutout in
.093 (2.36)<.12: (3.18)<.187 (4.7:) thick panels
