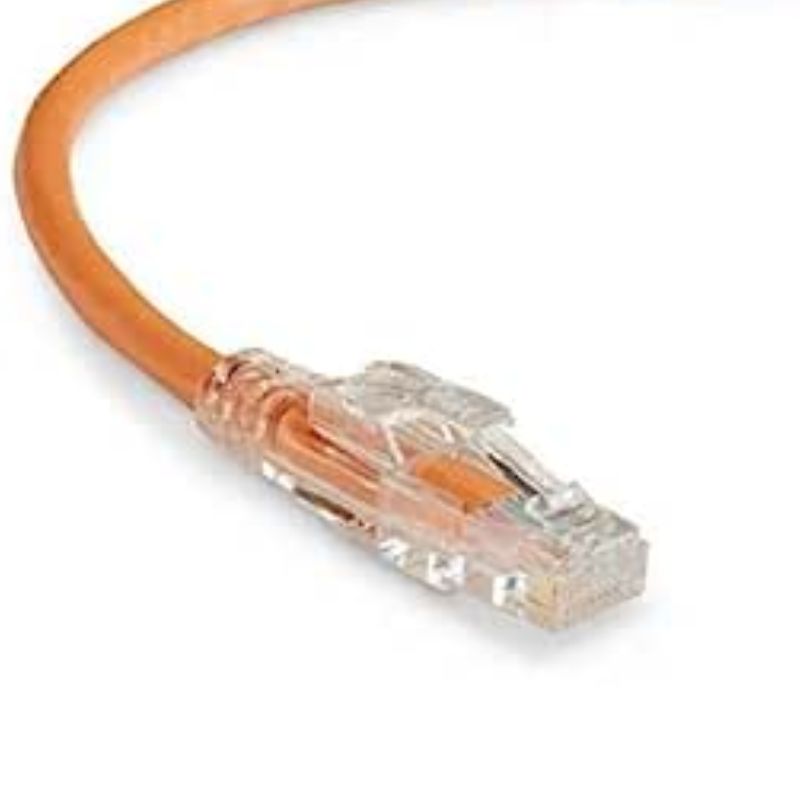

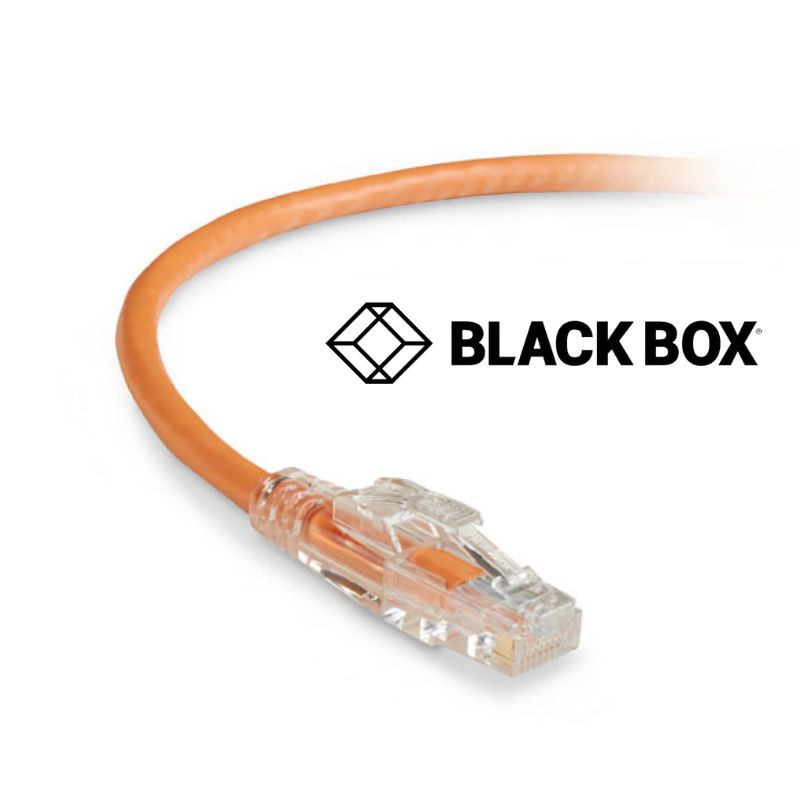

GigaTrue® 3 CAT6 550MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
Two levels of lockability
Cable tested to 550 MHz surpassing 250MHz CAT6 standard
Cabling ETL verified to ANSI/TIA568C2
50micron goldplated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles
Superior nearend crosstalk (NEXT) compared to standard CAT6 cable
Snagless boots prevent connector damage due to snags during installation
Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications
GigaTrue® 3 CAT6 550MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
- Two levels of lockability
- Cable tested to 550 MHz surpassing 250MHz CAT6 standard
- Cabling ETL verified to ANSI/TIA568C2
- 50micron goldplated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Superior nearend crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications
Attenuation (Maximum) 39.4dB at 250 MHz 62.1dB at 550MHz NEXT (Minimum) 38.3db at 250MHz 33.1dB at 550MHz PSNEXT (Minimum) 36.3dB at 250MHz 31.2dB at 550MHz Return Loss (Minimum) 15.3dB at 250MHz 2.98dB at 550MHz General Approvals RoHS CE UL/cUL Conductor Gauge 24 AWG Impedance 100+/15 ohms Jacket CM PVC Cable Frequency Up to 550 MHz Connector Type Snagless Conductor Type Stranded Connector Plating 50µ Standards TIA/EIA568C.2 CAT6 Item Specifications Connector A Type/Gender (1) RJ45 (Male) Connector B Type/Gender (1) RJ45 (Male) Specifications Shielding UTP
