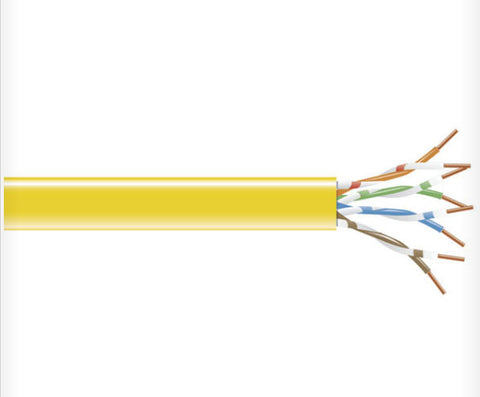

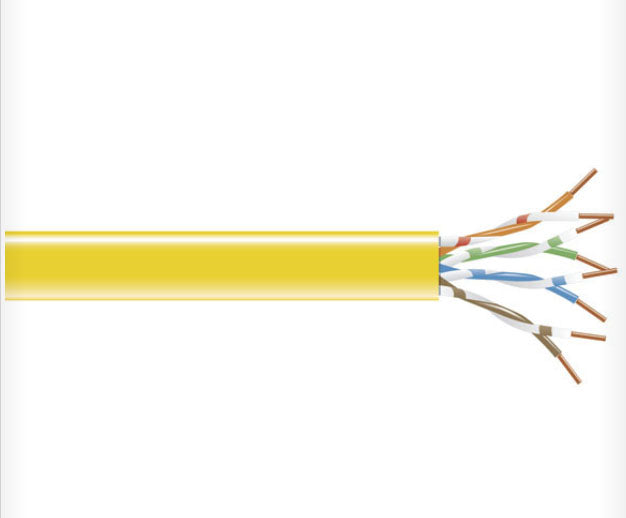

GigaBase® CAT5e 200MHz Solid Ethernet Bulk Cable Unshielded (UTP) CMR PVC
- Supports applications such as 10BASET 100BASETX 155Mbps ATM as well as applications such as 622Mbps ATM and Gigabit Ethernet. Certified for use in the WideBand™ networking system.
- Meets or exceeds minimum standards for CAT5e.
- Tested to 200 MHz.
| Attenuation (Maximum) | 22 dB/100 m typical at 100 MHz |
| Cable Type | 4pair UTP |
| Capacitance (Nominal) | 15 pF/ft. at 1 kHzConductors 24 AWG solid copperDelay Skew (Maximum) 45 ns/100 m |
| Impedance | 100 ± 15 ohms at 100 MHz; 100 ± 25 ohms at 200 MHz |
| NEXT (Minimum) | 35.3 dB at 100 MHzPSACR 11 dB at 100 MHz |
| PSELFEXT | 20.8 dB/100 m at 100 MHzPSNEXT (Minimum) 32.3 dB at 100 MHz |
| Return Loss | 20.1 dB at 100 MHz |
| Velocity of Propagation | 70% |
