PRM-01 - OSEPP PRO MINI BOARD ATMEGA328P MICROCONTROLLER BASED

  • Sale
  • Regular price $26.95 CAD

Only 10 In-Stock Remaining.

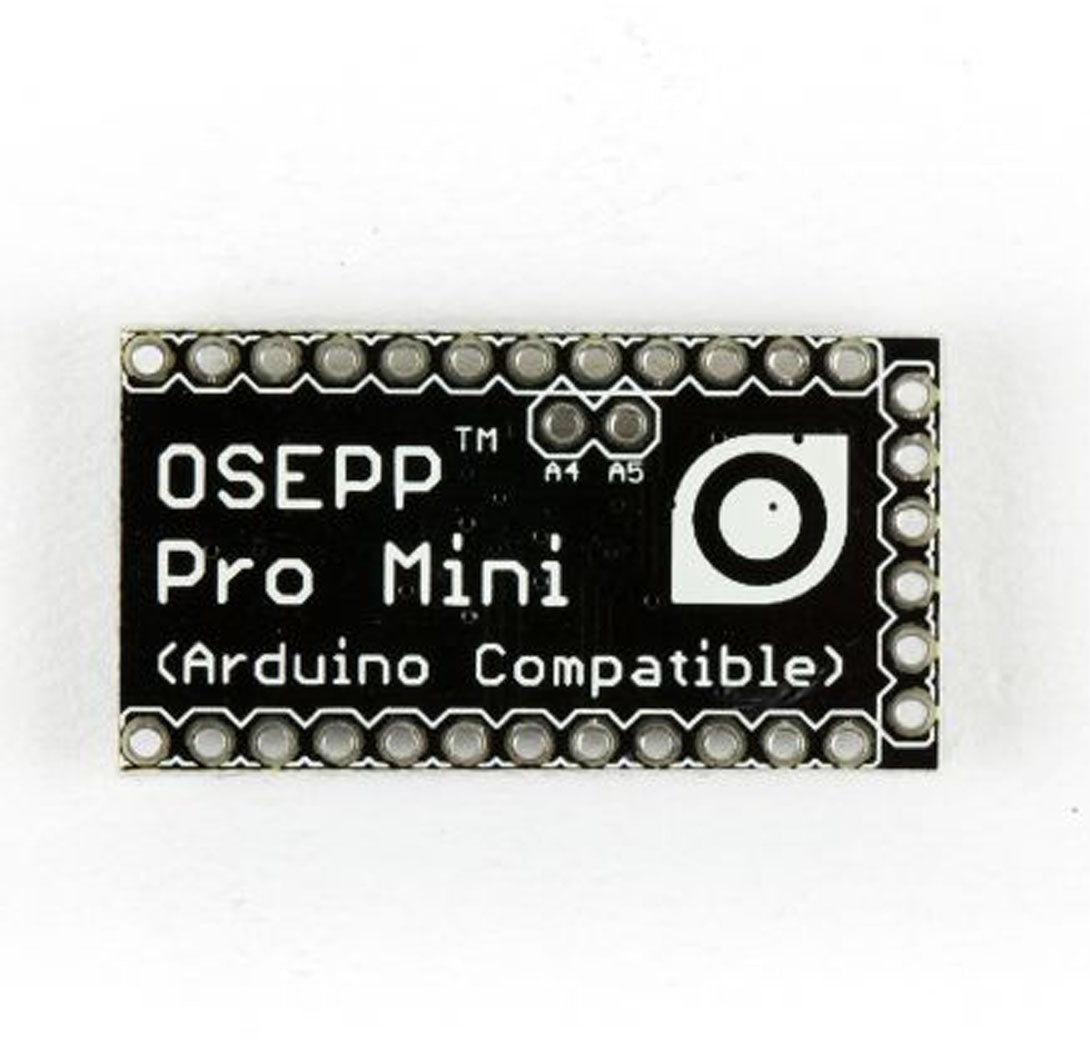

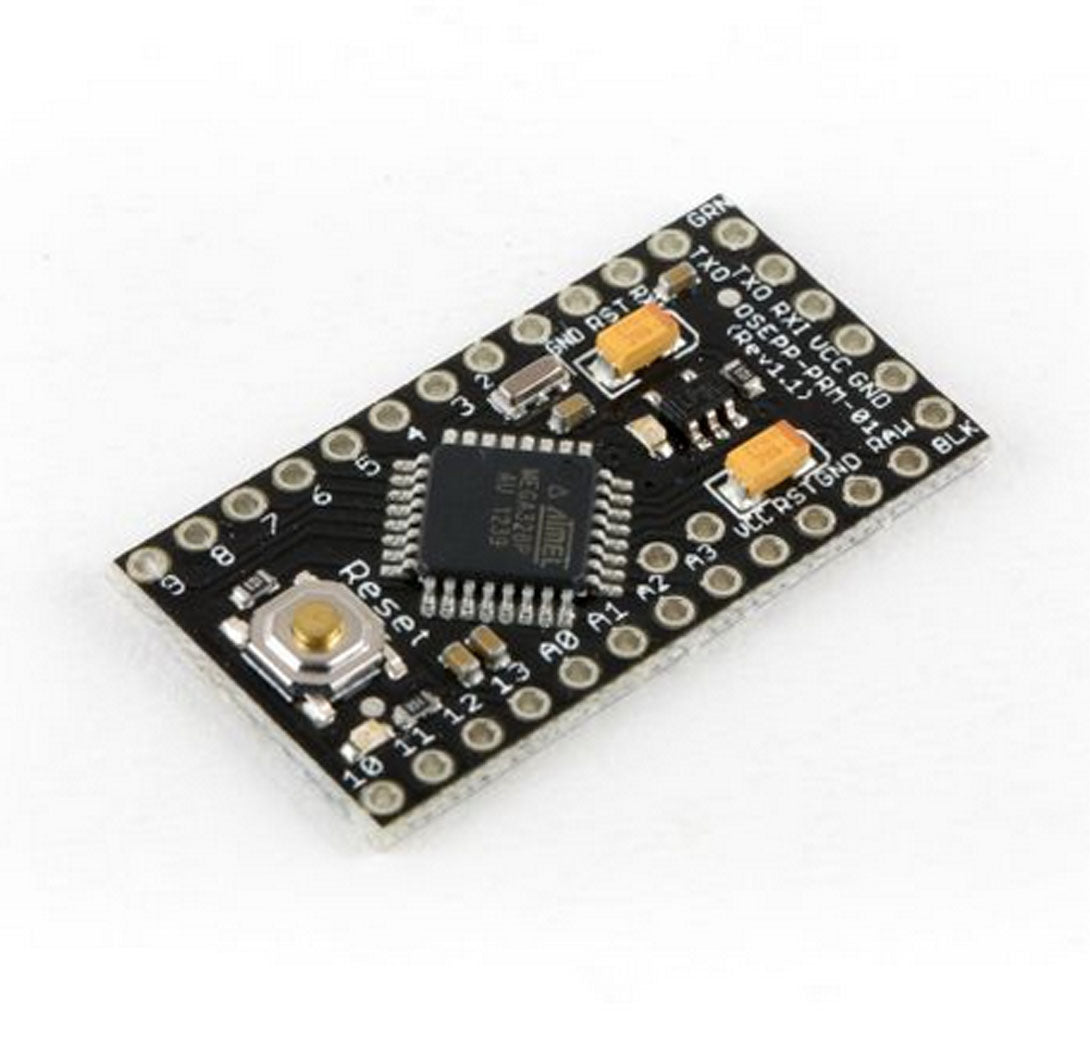

OSEPP Pro Mini The OSEPP Pro Mini board is a miniaturized version of the OSEPP Pro which in turn is a stripped down version of the OSEPP Uno.
Basically this is as small as it gets which allows for easy concealment in projects. This 8bit AVR RISCbased microcontroller running at 16 MHz with extremely small profile less than 1/5 the size of the OSEPP Pro board Compatible with existing Arduino software libraries.
This board is the smallest OSEPP board thus far but it still packs the same ATmega328P microcontroller running at 16 MHz. Many of the optional connections and devices for development have been stripped out thus allowing for a massive reduction in PCB estate. This board is meant to be a permanent low cost fixture in a developed project.
  • Microcontroller ATmega328P
  • Clock Speed 16 MHz
  • Flash Memory 32 KB SRAM
  • 2 KB EEPROM 1 KB
  • Operating Voltage 5V
  • Input Voltage 512 V
  • Digital I/O Pin Count 14 (including 6 for PWM output)
  • Analog Input Pin Count 6 Other Connections Serial communication (requires header)
  • Power (requires header)
  • Dimensions 1.34 x 0.71 x 0.08 inches (34.0 x 18.0 x 2.0 mm)
  • Power Source DC power supply
