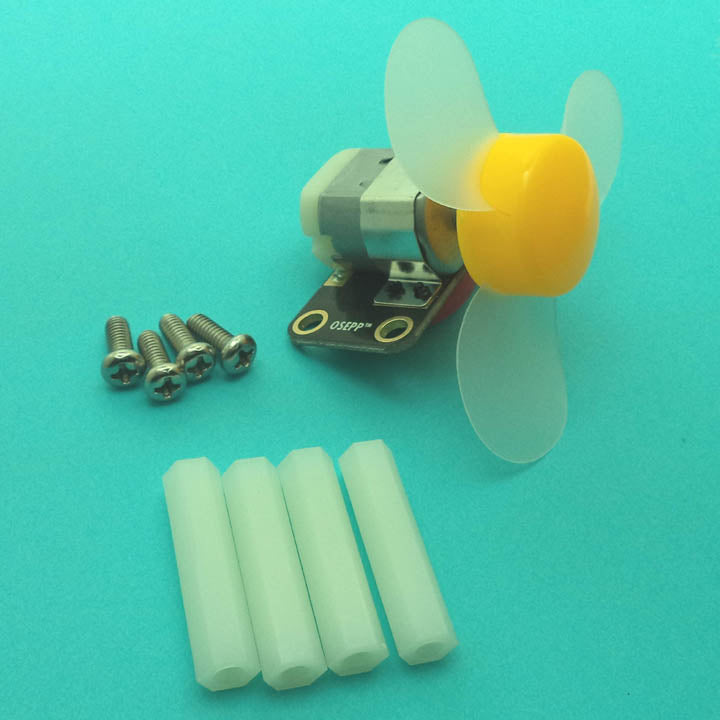

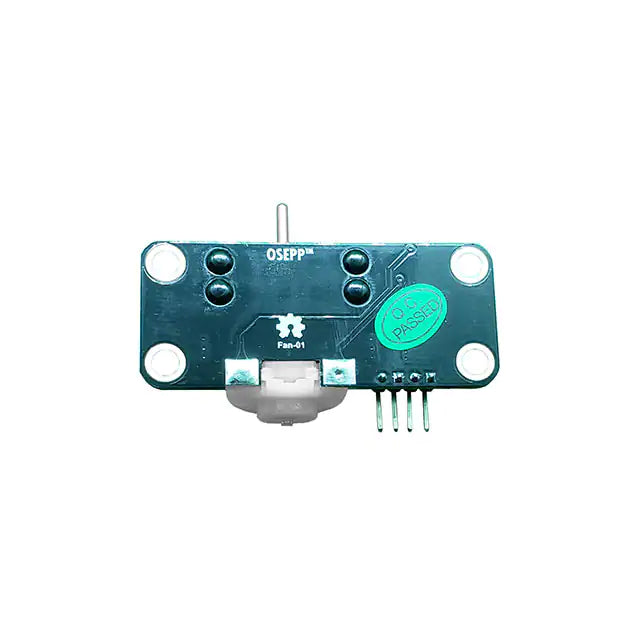

Fan Motor Module The fan motor controller board allows speed and direction control of a low power DC motor. 100% Arduino Compatible.   Features
  • Motor controller chip: L9110H
  • Package: SOP8
  • Operating voltage output: 3V – 6V MAX
  • Speed (no load): 15000 rpm
  • Speed (6V): 8000 rpm
  • Current (6V): 40mA
  • Stall current (6V): 360mA
  • Torque (6V): 0.111kg/cm
