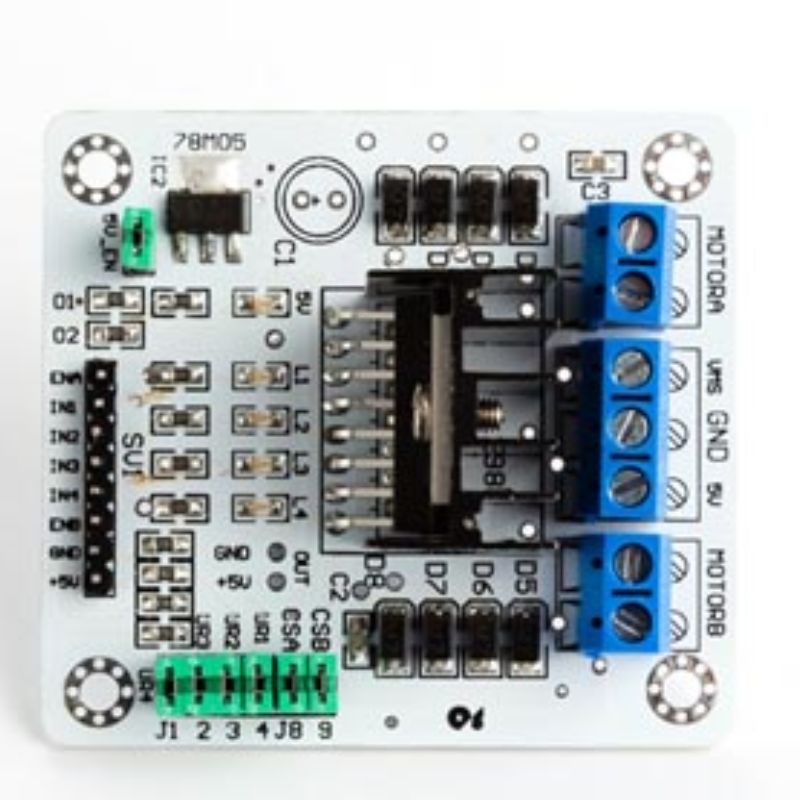

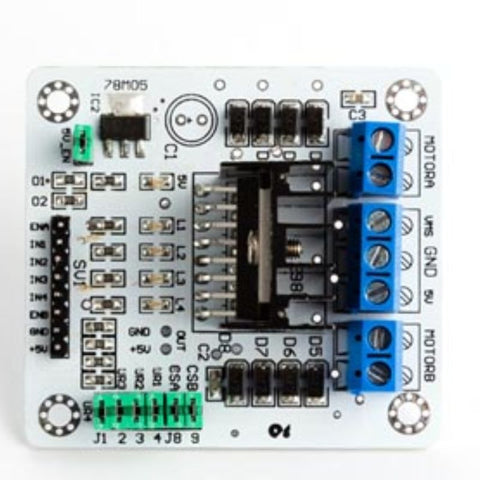

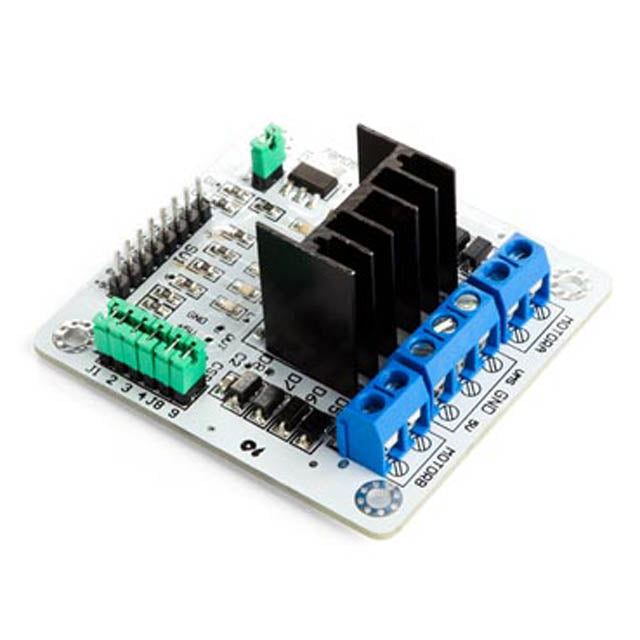

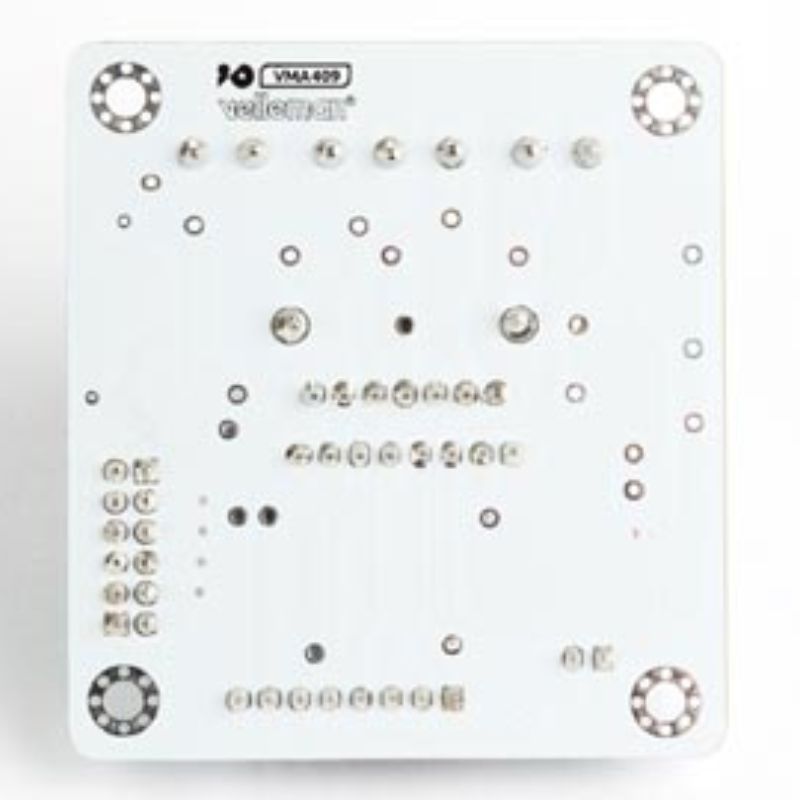

WPI409 - MOTOR DRIVER MODULE L298N 4 WIRE STEPPER OR 2 DC MOTORS

  • Sale
  • Regular price $14.95 CAD

33 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


This module allows full control of two DC motors or one stepper motor.

Specifications

  • driver: L298N
  • driver power supply: + 5 V to + 35 V
  • driver output current (max.): 2A
  • logic power output Vss: +5 V to +7 V (internal supply +5 V)
  • logic current: 036 mA
  • controlling level: low 0.3 V to 1.5 V high: 2.3 VVss
  • enable signal level: low 0.3 V to 1.5 V high: 2.3 VVss
  • max. power: 25 W
  • working temperature: 25 to +130 °C ( 13 to 266 °F )
  • dimensions: 69 x 56 x 36 mm ( 2.71 x 2.2 x 1.41 inches )
