The K8055 interface board has 5 digital input channels and 8 digital output channels. In addition there are two analogue inputs and two analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC's USB connectors.
All communication routines are contained in a Dynamic Link Library (DLL). You may write custom Windows (98SE 2000 Me XP) applications in Delphi Visual Basic C++ Builder or any other 32bit Windows application development tool that supports calls to a DLL.

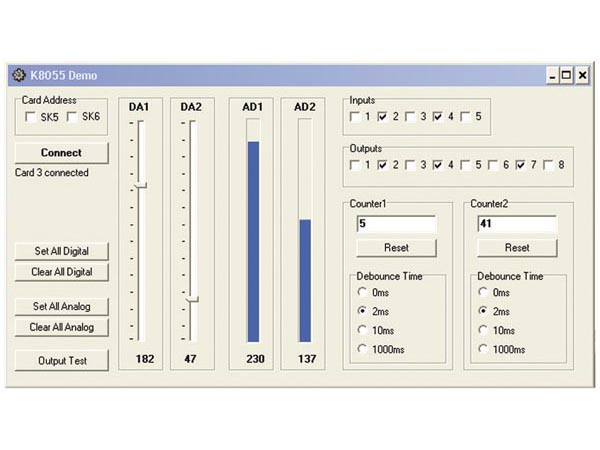

  • separate output / input test
  • clear all / set all function
  • counter function on inputs 1 and 2 with adjustable debounce (max 2kHz depends on total I/O load)
  • analogue output set sliders
  • analogue input bargraph indication
Minimum system requirements:
  • Pentium class CPU
  • USB1.0 or higher connection
  • Windows 98SE or higher (Win NT excluded)
  • CD ROM player and mouse
  • 5 digital inputs (0= ground 1= open) (on board test buttons provided)
  • 2 analogue inputs with attenuation and amplification option (internal test +5V provided)
  • 8 digital open collector output switches (max. 50V/100mA) (on board LED indication)
  • 2 analogue outputs:
  • 0 to 5V output resistance 1K5
  • PWM 0 to 100% open collector outputs max 100mA / 40V (on board LED indication)
  • general conversion time: 20ms per command
  • power supply through USB: approx. 70mA
  • dimensions: 145 x 88 x 20mm / 5.7 x 3 x 0.8 inches
K8055 K8055N VM110 VM110N application for Android This is an Android version of the demonstration app used for the Velleman K8055 K8055N VM110 & VM110N USB Experiment Interface Board. Download the application here: K8055 Android application https://market.android.com/search?q=digiwack+k8055&so=1&c=apps Plugin for IPEmotion measurement software Students who are already working with the Velleman K8055 Experiment board will benefit from the plugin for IPEmotion measurement software.. Download Velleman K8055 Plugin http://www.ipemotion.com/maldownloads
