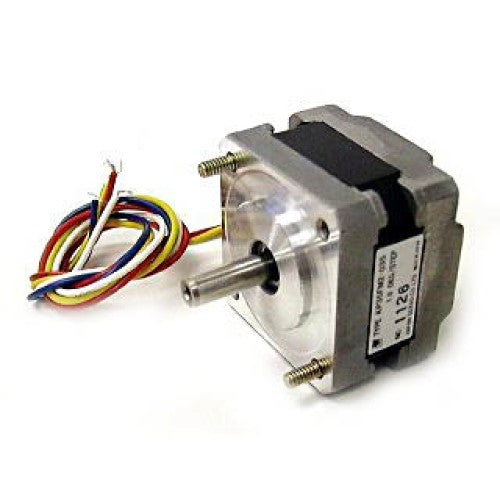

KP35FM2-035 - MOTOR STEPPER 1.8DEG/STEP W/WIRE

  • Sale
  • Regular price $9.95 CAD

4191 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


  • Manufacturer: Japan Servo Co. Ltd.
  • Step Angle: 1.8 degrees
  • Winding Voltage: 1224 Volts
  • Resistance per Phase: 37 Ohms
  • Coil Winding: Bipolar
  • Number of Steps: 200
  • Amperage per Phase: 0.6 Amps
  • Holding Torque: 700 grams / cm
  • Number of Leads: 4 Phase One Blue/Red Phase Two Yellow/White
  • Body Size Square: 35 mm
  • Body Depth: 24 mm
  • Shaft Length: 14 mm
  • Shaft Diameter: 5 mm
Wiring/Step Diagram:
bipolar
