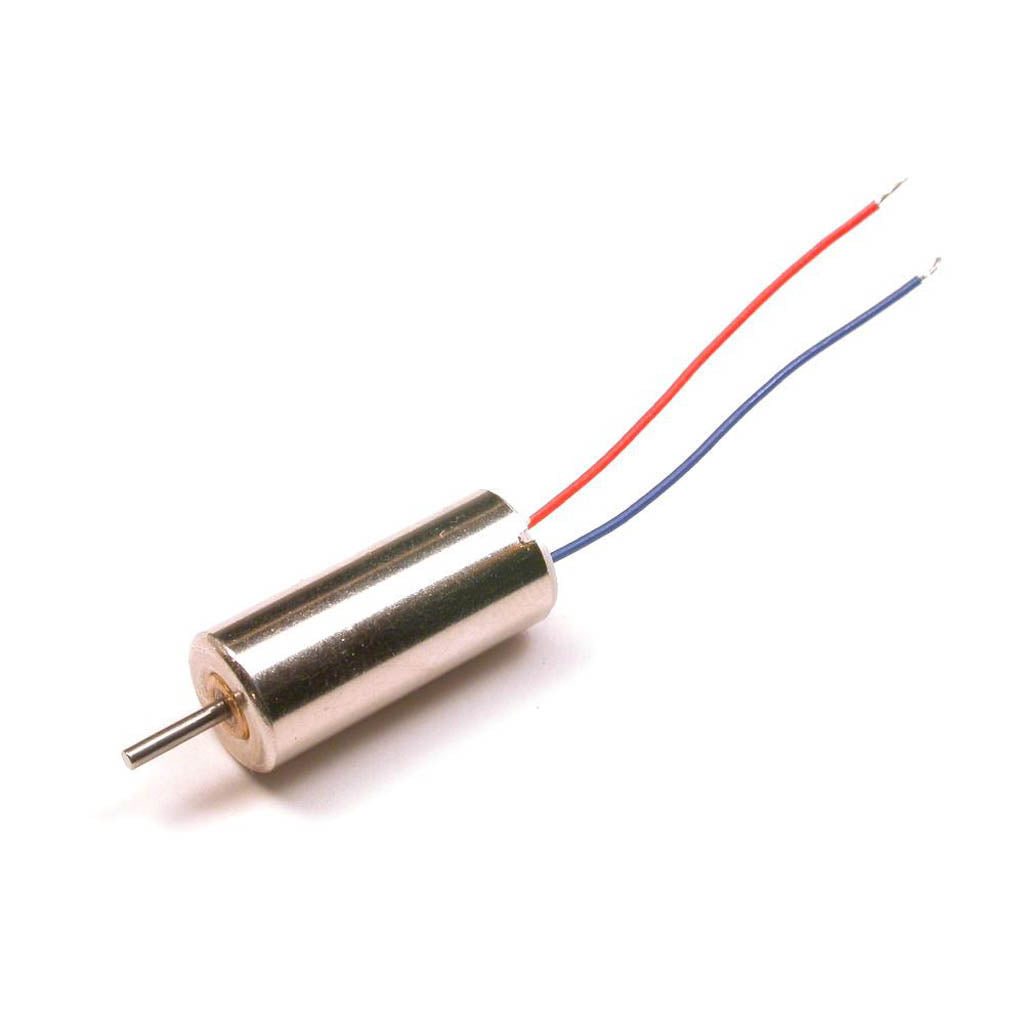

RPM2-MOTOR PAGER 1.5-5V 9700-31900RPM 17.5MA-32.1MA

  • Sale
  • Regular price $6.95 CAD

In stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com


MFR. No. : RPM2
STOCK No. : 2645-EA1
These new factory-fresh pager motors come ready-to-run:
no eccentric weight removal necessary like on surplus pager motors!
These new motors are comparable in performance and quality to the originals.
The only major difference is the lack of a steel sleeve on the 1mm
diameter output shaft.
- if you need a 1.5mm diameter shaft we've found that 18 gauge wire
insulation slips on and makes a very suitable bushing!

Measures 7.05mm diameter 16.54mm body length and 21.7mm overall length
or 0.277'' diameter 0.651'' body length and 0.854'' overall length
with the shaft diameter of 1.01mm (0.039'').
At 1.5V it gives 17.5mA free draw current (120mA stall) at 9700RPM.
At 3V gives 22mA free (260mA stall) at 18 420RPM.
At 5V operation give 32.1mA free (420 stall) at 31900RPM
