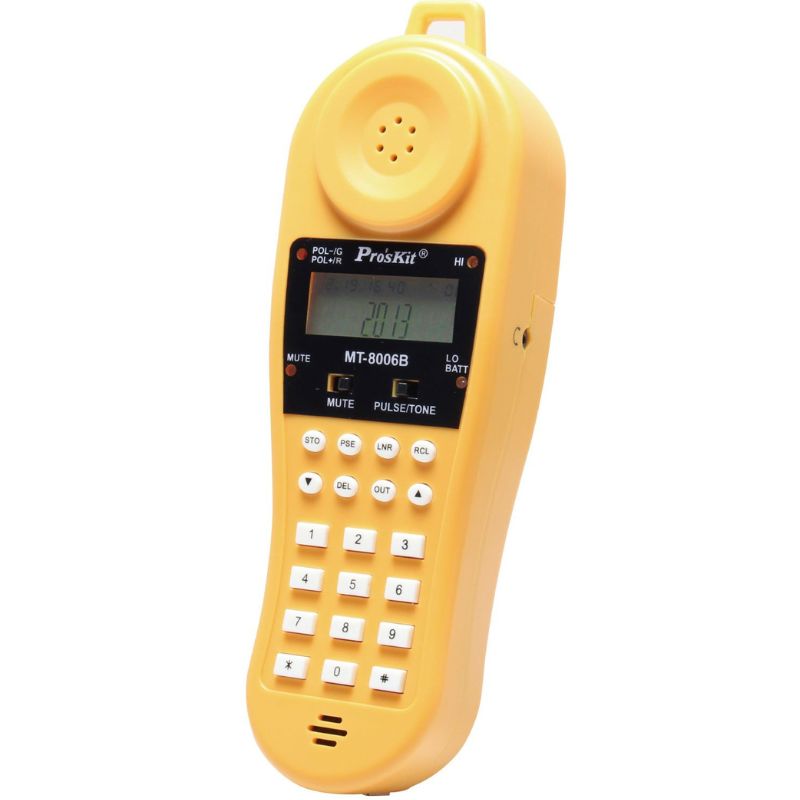

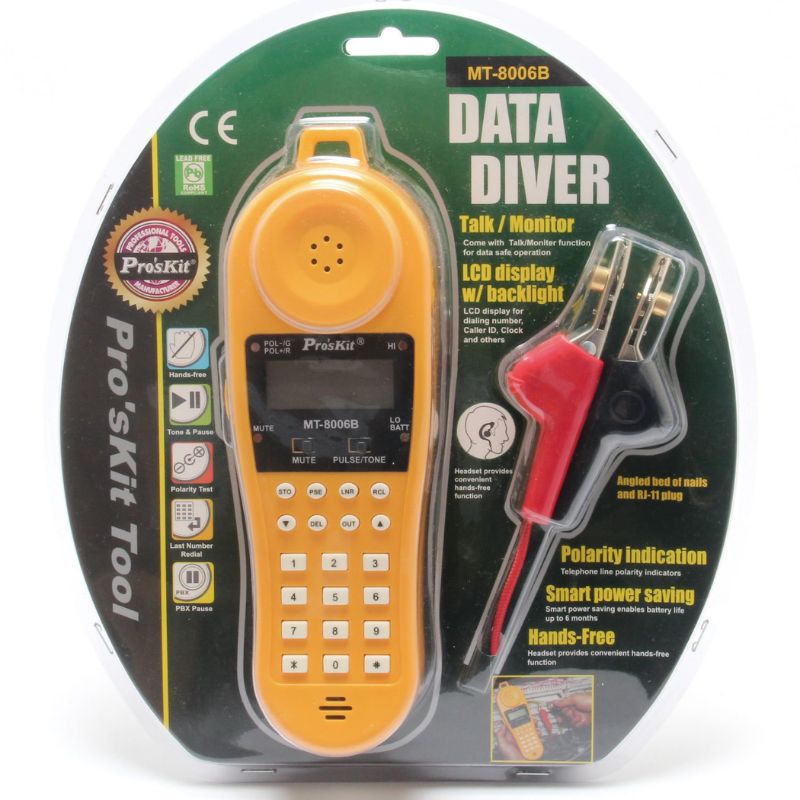

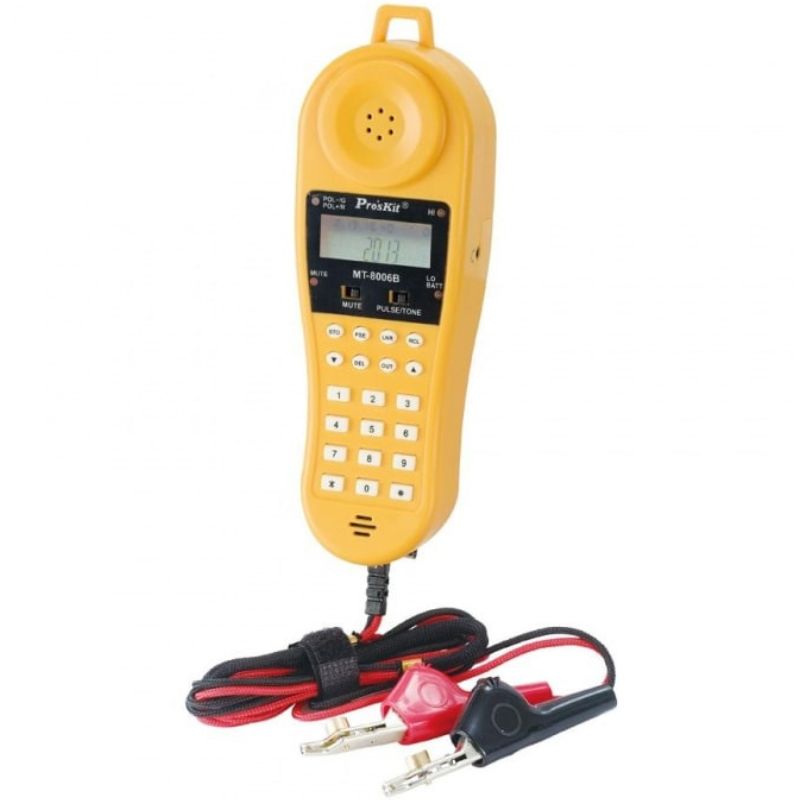

Eclipse MT8006B
Data Diver

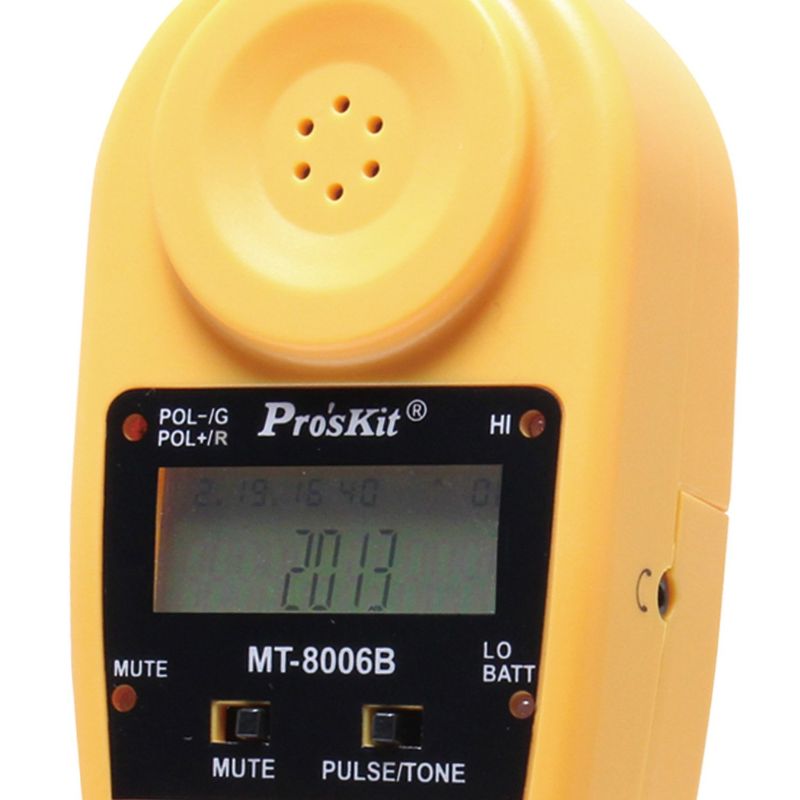

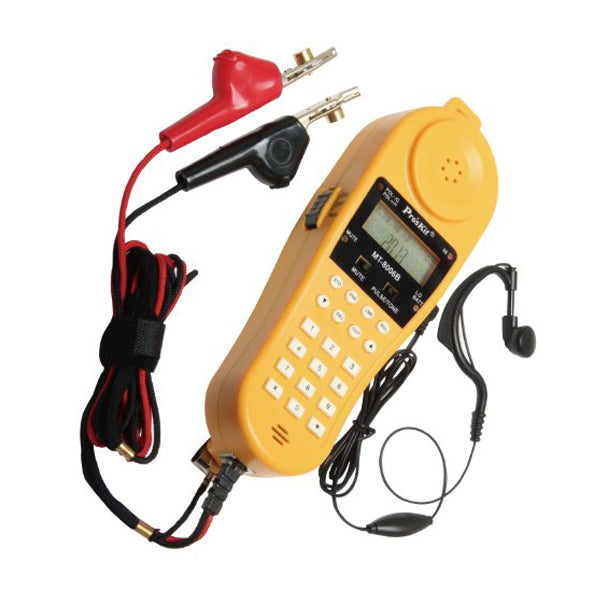

The Eclipse MT8006B Data Diver can identify the telephone line polarity easily. Smart power saving enables battery life up to 6 months. Eclipse MT8006B Data Diver is supplied with the headset provides convenient handsfree function.
Loop limit 2 KΩ maximum at 48 Vdc
(nominal 20 mA minimum loop current)
DC resistance
Talk Mode 300Ω typical
Monitor impedance >39 kΩ nominal at 1 KHz
Rotary dial output
Pulsing rate 10 pps+0.8 pps
Percent break 60/40%?2%
Inter digit interval 1000 ms typical
Leakage during Break >130 KΩ
DTMF output
Tone frequency error ?1.5% maximum
Tone level 8?2 dBm combined (typical)
High versus low tone 4 dB maximum
Memory dialing
Memory capacity 12 memories
Digit capacity 16 digits per memory
PBX pause duration 1~3.6 seconds
Power source 4pcs 1.5 V AAA batteries (not included)
