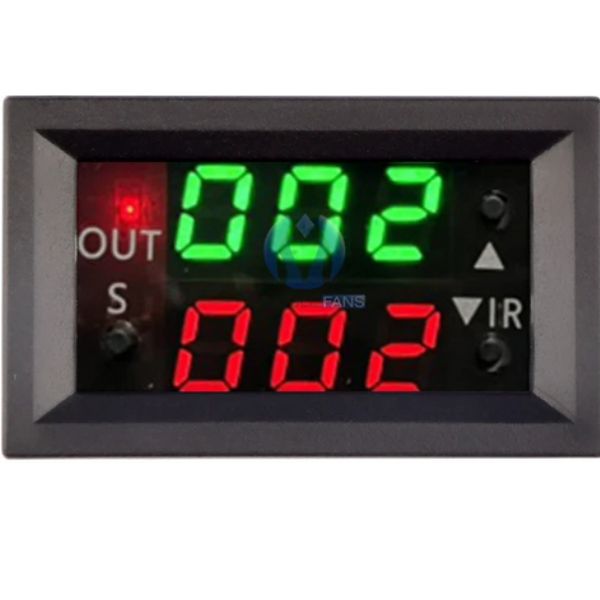

DC 12V Dual Display Time Relay Module Time Delay Relay Mini LED Digital Timer Relay Timing Delay Cycle Control Switch
Features
1: Parameter setting is simpler
2: Small and exquisite appearance
3: Direct output type
4: Timing range: 0~999 (seconds minutes hours)
Mounting opening: 45.5x26.1mm
Timing range: 0~999 (seconds minutes hours)
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: 10~60℃

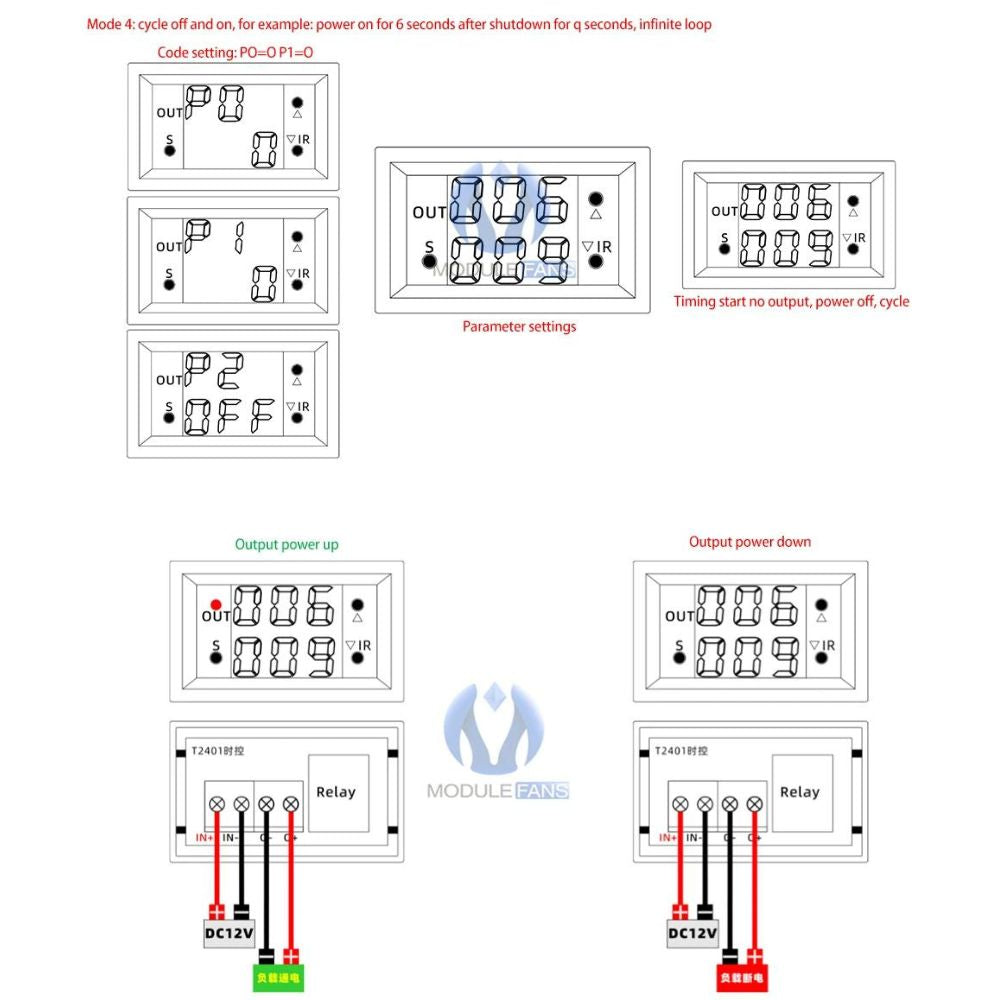

Direct output wiring is convenient green start and red stop easy to set

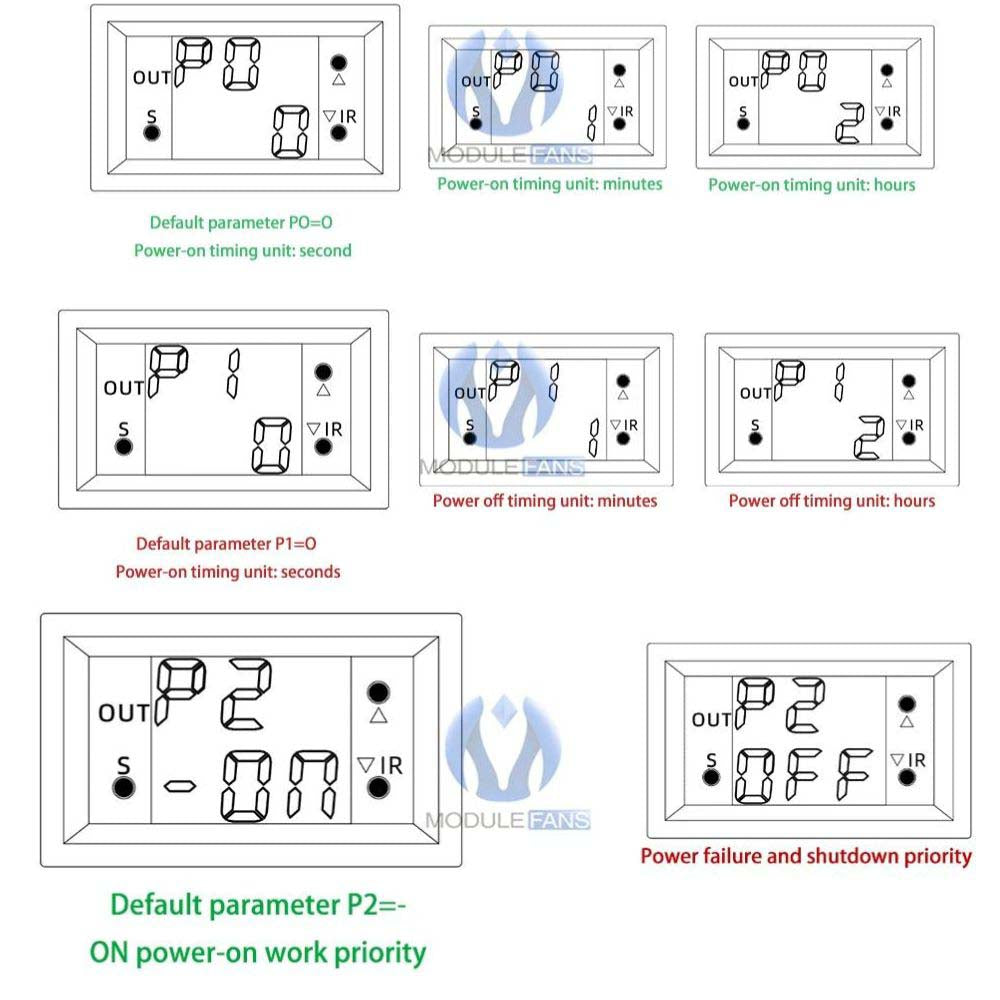

Code menu
Code menu introduction
Press and hold the S button for 6 seconds to enter the code menu

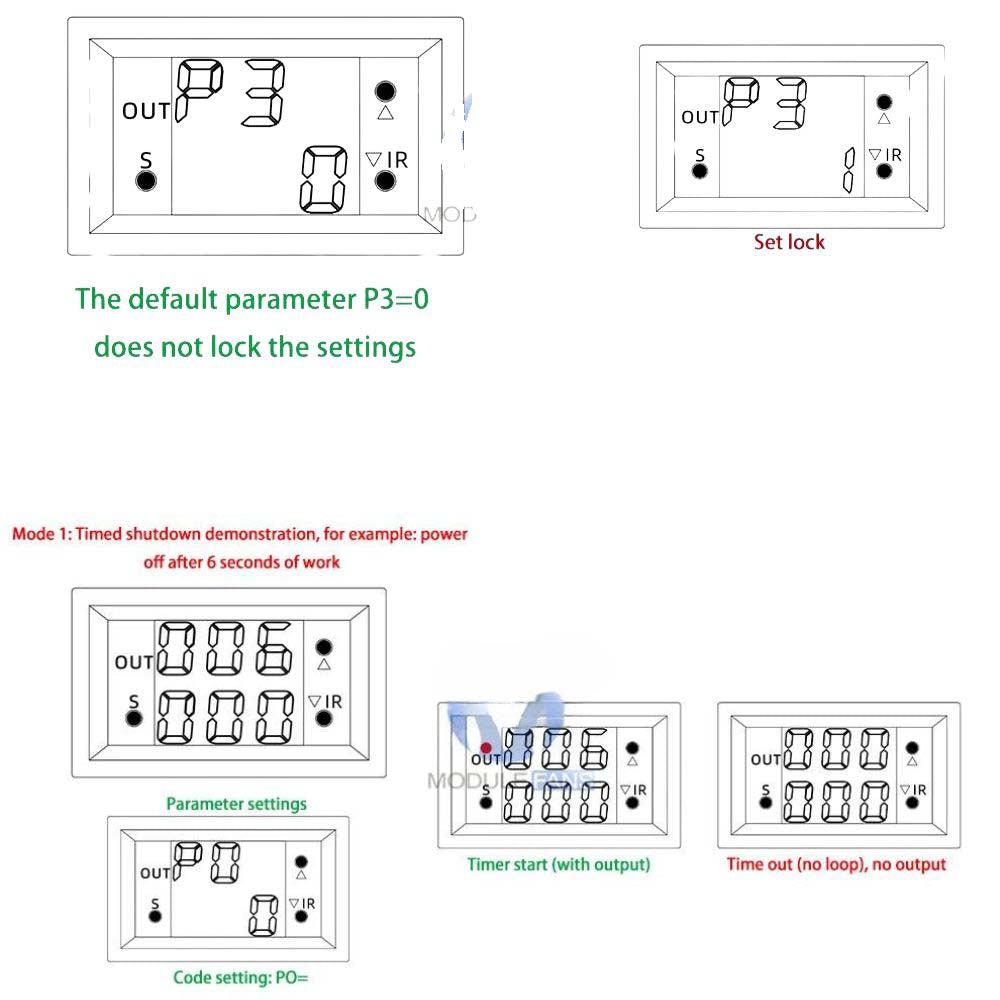

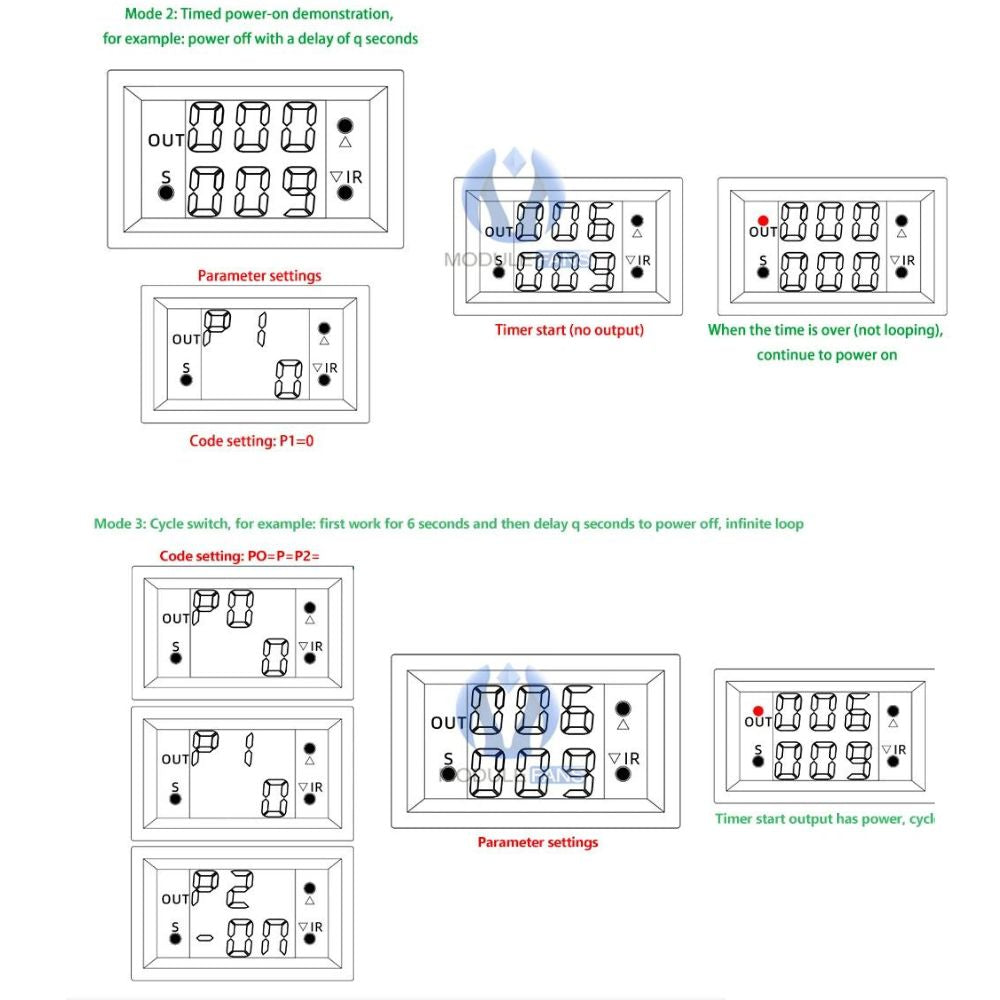

Mode setting demo
Doubleclick the S key to enter the parameter setting mode
safety warning
The output is active connect the load and then power on to avoid short circuit

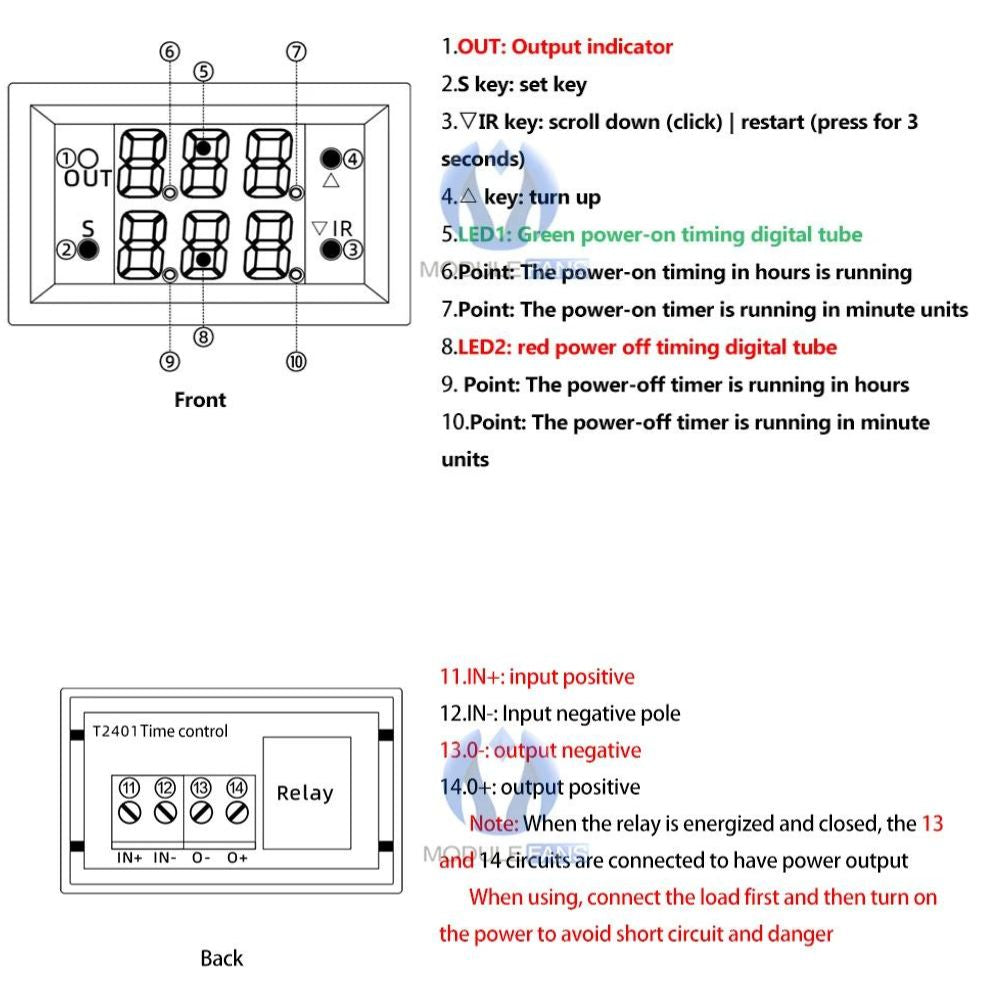

1.OUT: Output indicator
2.S key: set key 3. VIR key: scroll down (click) restart (press for seconds) 4.A key: turn up 5.LED1: Green poweron timing digital tube M
6.Point: The poweron timing in hours is running
7.Point: The poweron timer is running in minutes
8.LED2: red power off timing digital tube 9. Point: The poweroff timer is running in hours
10.Point: The poweroff timer is running in minnutes
11.IN+: input positive
12.IN: Input negative pole
13.0:output negative 14.0+: output positive Note: When the relay is energized and closed the 13 Mand 14 circuits are connected to have power output When using connect the load first and then turn on the power to avoid short circuit and danger
