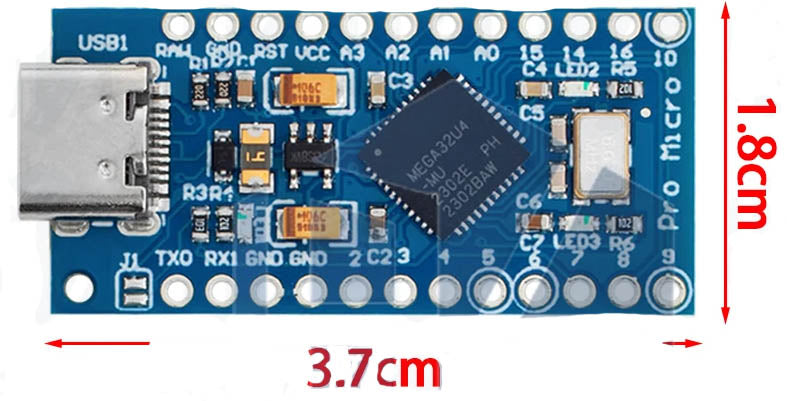

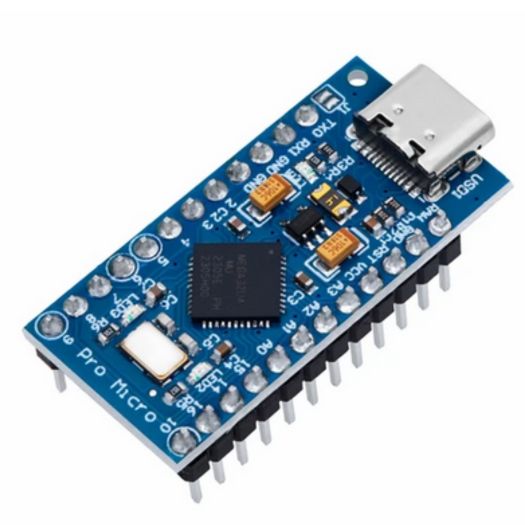

Pro Micro ATmega32U4 5V 16MHz Replace ATmega328 For Arduino TYPEC With 2 Row Pin Header For Leonardo Mini Usb Interface Pro
ATMEGA32U4 runs at 5V/16MHz Support Arduino IDE V1.0.1 Microusb interface programming on the board
Four 10bit ADC pins
12 digital I/O (5 PWM capability) Rx and Tx hardware are connected in serial
This little board does all the neat adjacent Arduino tricks:
4channel 10bit ADC
5PWM pins 12 Digital IO and hardware serial connections to Rx and Tx you're familiar with. Running at 16MHz and 5V.
There is a voltage regulator on board so it can accept voltage up to 12VDC.
If you are supplying unstable power strips be sure to connect to the RAW not VCC pins.
This latest version fixes the silk bug so that pin 14 is correctly marked. We have also
added a PTC fuse and diode to protect the power circuit and correct the RX and TX LED circuits
