111518 - TINKERKIT LCD MODULE

  • Sale
  • $12.95 CAD
  • Regular price $24.95

501 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

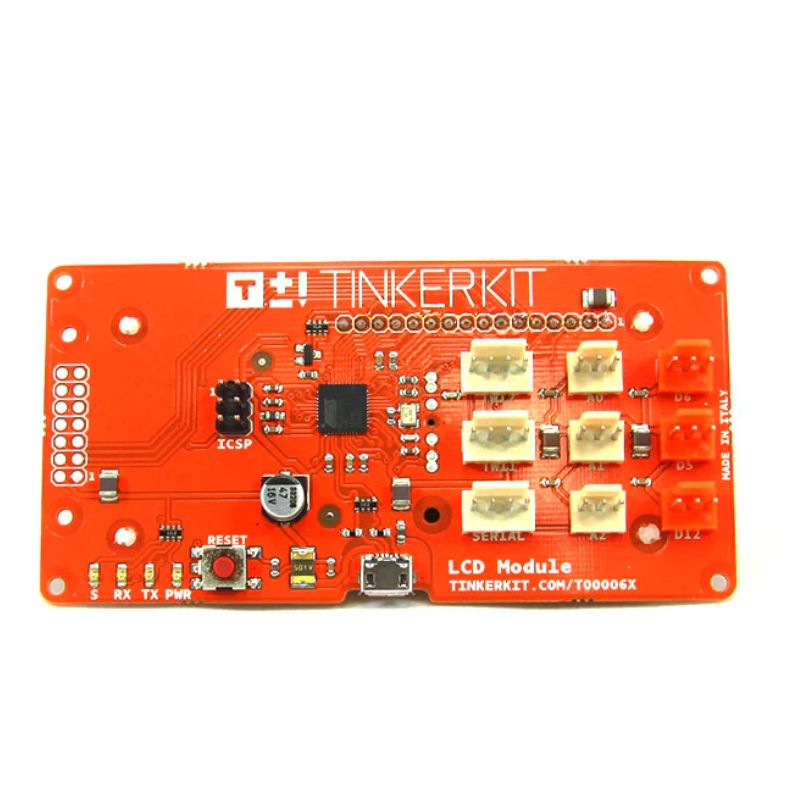

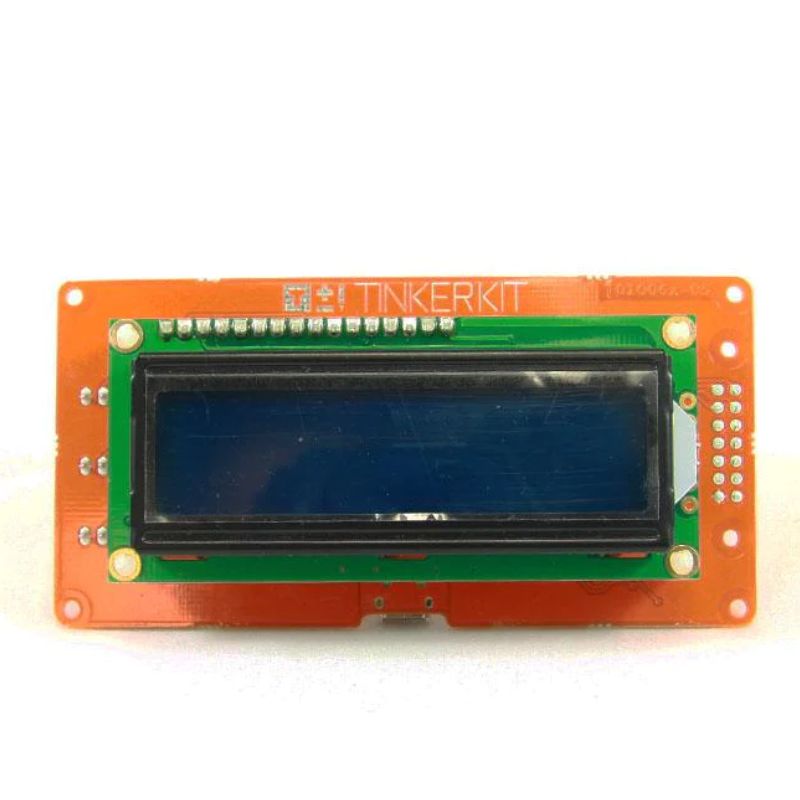

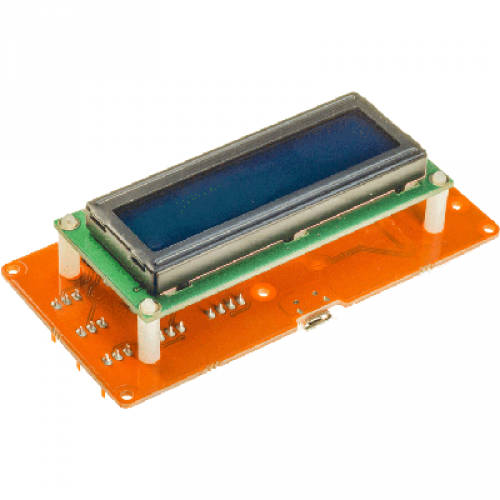

The TinkerKit LCD module makes it really easy to write text on the screen in a few minutes. There are two unique ways to write to the screen:

  • plugged to a TinkerKit shield like any other TinkerKit module
  • standalone directly connected to the USB port of your computer

Features

The TinkerKit LCD module is equipped with its own microcontroller and run with its own library. Uploading the TKLCD code is just a matter of uploading a new sketch to the LCD using:

  • the fourconnectors wire connected to the SERIAL port on the TK Shield
  • a USB cable if it is standalone

To upload LCD firmware go to Examples>TKLCD>Serial_firmware. Please note that the TinkerKit LCD will be recognize as an Arduino Leonardo board when you connect it to USB. You will need to load that code again if you want to have a fresh install of the LCD. Once uploaded you are ready to go and write your own program.

Please notice that the way you connect your LCD module is really important for declaring it in your code:

  • use TKLCD_Serial lcd = TKLCD_Serial() if you connect it to the Serial of your TinkerKit Shield
  • use TKLCD_Local lcd = TKLCD_Local() if it is stand alone i.e connected to the USB port of your computer

In both cases include the TKLCD LiquidCrystal and Wire libraries.
