ARDUINO COMPATIBLE MOS DRIVING MODULE

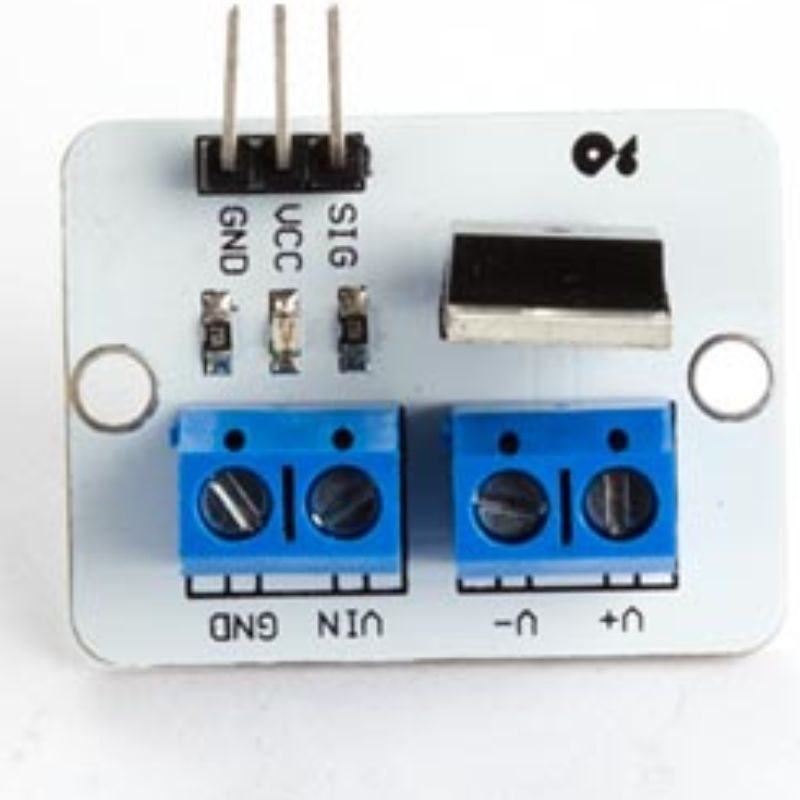

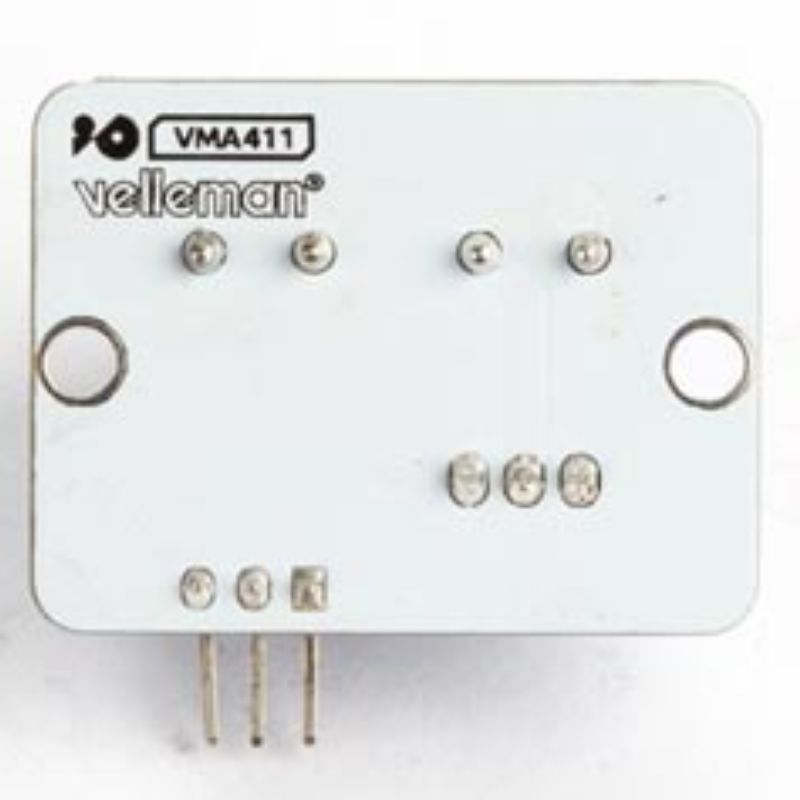

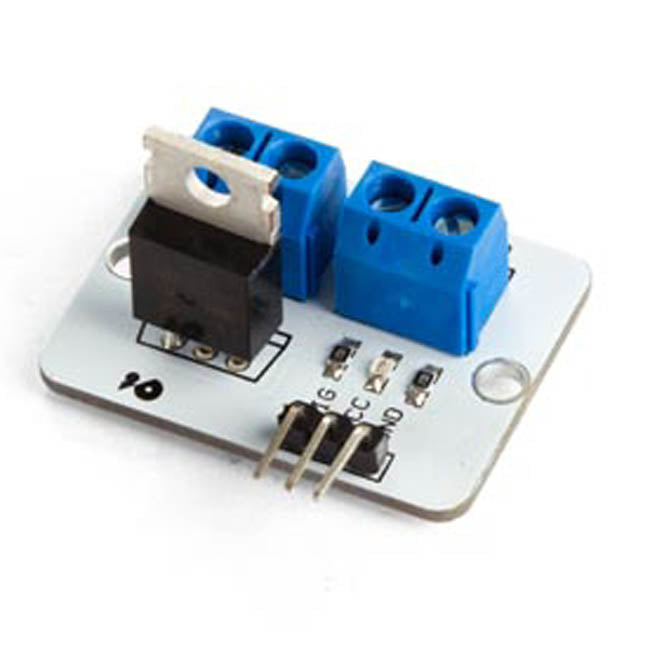

This little module is a breakout board for the IRF520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller.
Its main purpose is to provide a low cost way to drive a DC motor for robotics applications but the module can be used to control most high current DC loads.
Specifications:
- Operating voltage: 3 to 5 VDC
- Max. load voltage: 0 to 24 VDC
- Input: SIG pin logic level 3 to 5 VDC
- Max. load current: 5 A (a heatsink is required for loads > 1 A)
- MOSFET: IRF520
- Dimensions: 34 x 21 x 16 mm
