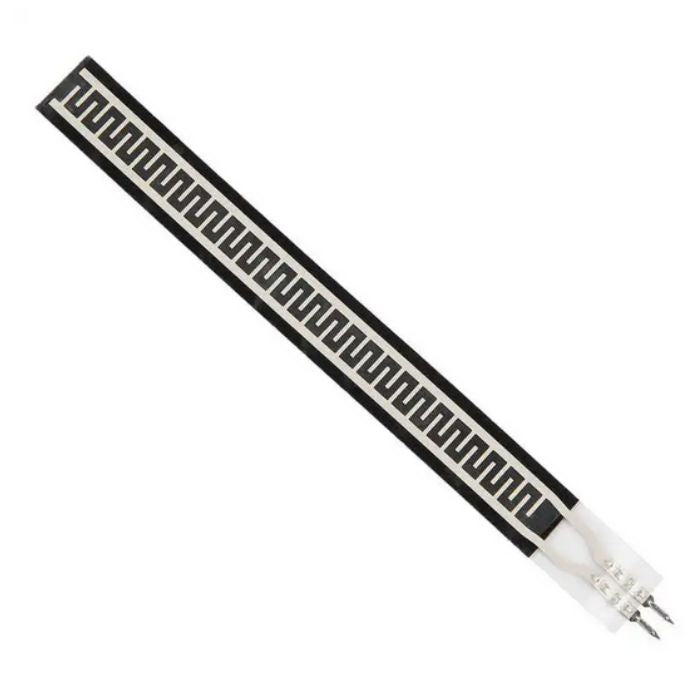

Pressure Sensor Resistance Type Thin Film Pressure Sensor Force Sensor
Features:

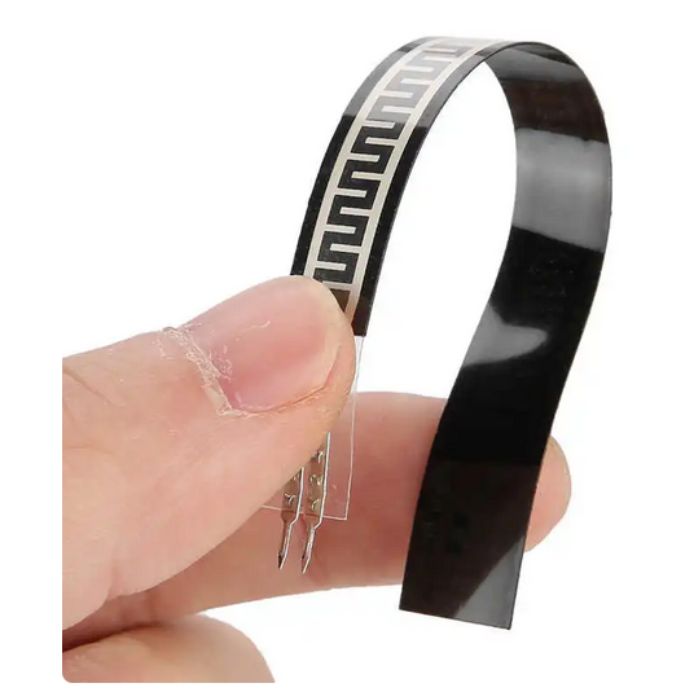

The flexible sensor has the characteristics of flexible ultrathin and extreme speed response etc.
Waterproof and pressure sensitive dual function
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
High sensitivity and long service life
Application: Smart home medical electronics.
When sensor detects outside pressure the resistance of sensor will change.
Pressure can be converted into a corresponding electrical output using simple circuit
Specification:
Model: ZD10100
Length: 100 mm/3.9in
Width:10mm/04in
Range: 0 ~ 500g
Thickness:less than 0.25mm
Response point: less than 20g
Test voltage: typical dc3.3v
Durability: more than 1 million times
Response time: less than 10ms
Recovery time: less than 15ms
Working temperature: 20℃~ 60℃
EMI: no
ESD: not sensitive
