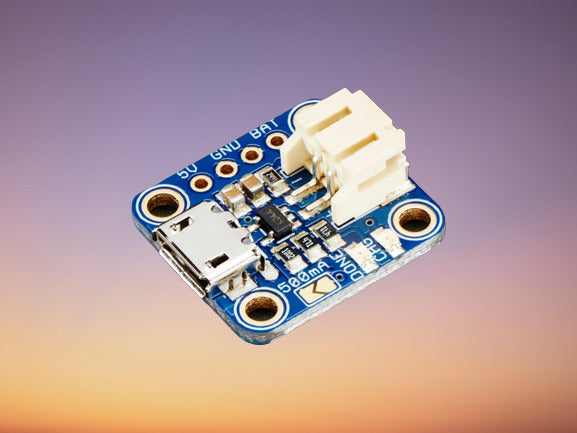

This little lipo charger is so small and easy to use you can keep it
on your desk or mount it easily into any project! Simply plug it via any
MicroUSB cable into a USB port and a 3.7V/4.2V lithium polymer or
lithium ion rechargeable battery into the JST plug on the other end.
There are two LEDs one red and one green. While charging the red LED
is lit. When the battery is fully charged and ready for use the green
LED turns on. Seriously it could not get more easy.
Charging is performed in three stages: first a preconditioning charge then a constantcurrent fast charge and finally a constantvoltage trickle charge to keep the battery toppedup. The charge current is 100mA by default so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the front for when you'll only be charging batteries with 500mAh size or larger.

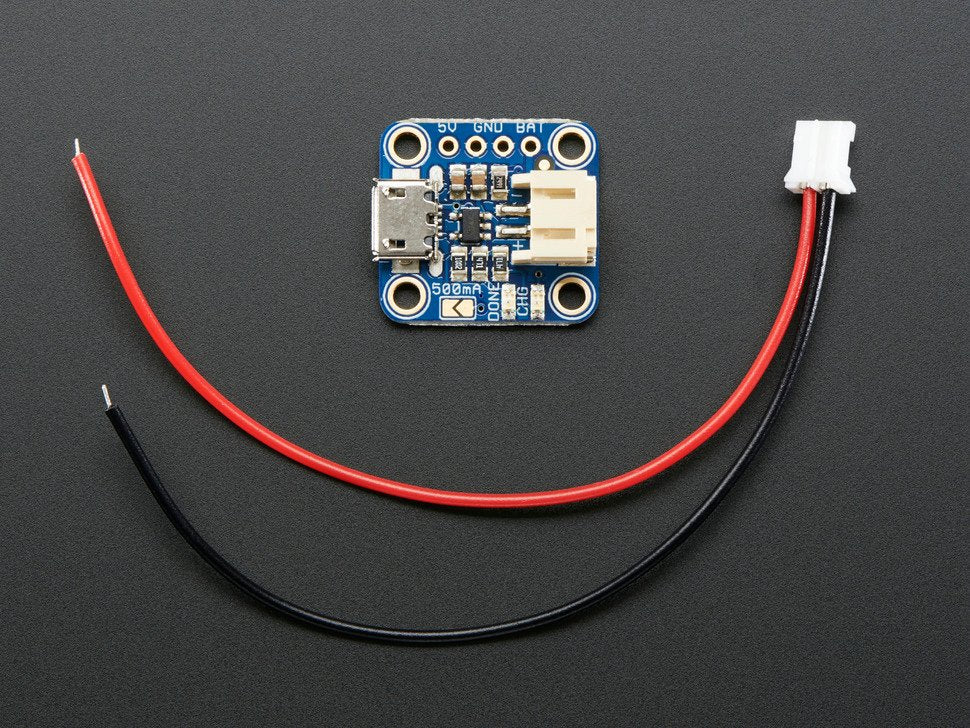

- Comes assembled and tested with a free bonus JST cable!
- 5V input via MicroB USB connector
- For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
- 100mA charge current adjustable to 500mA by soldering a jumper closed
NOTE: Battery not included.
