Adafruit PiTFT 2.8 Touchscreen Display for Raspberry Pi
Add a compact 320x240 resolution screen to the top of your Pi

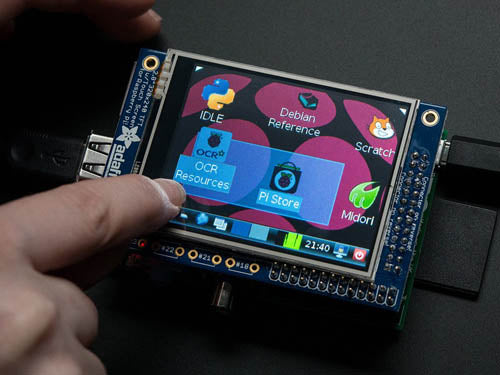

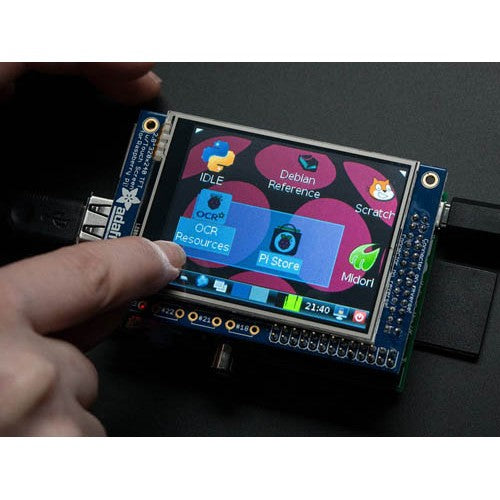

This little display for the Raspberry Pi features a 2.8 screen with 320x240 16bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the display as a console X window port displaying images or video etc. Best of all it plugs right in on top.
Its designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Model B+ as long as you don't mind the PCB overhangs the USB ports by 5mm.
Uses the hardware SPI pins (SCK MOSI MISO CE0 CE1) as well as GPIO #25 and #24. All other GPIO are unused.
There are 4 spots for optional slim tactile switches wired to four GPIOs that you can use if you want to make a basic user interface. For example you can use one as a power on/off button. The tactile buttons are not included. Some basic soldering is required to install the buttons.
Display current draw is mostly based on the backlight with fullon backlight the current draw is ~100mA.
