12 - AUDIO TO LIGHT MODULATOR KIT

  • Sale
  • Regular price $21.95 CAD

Only 5 In-Stock Remaining.

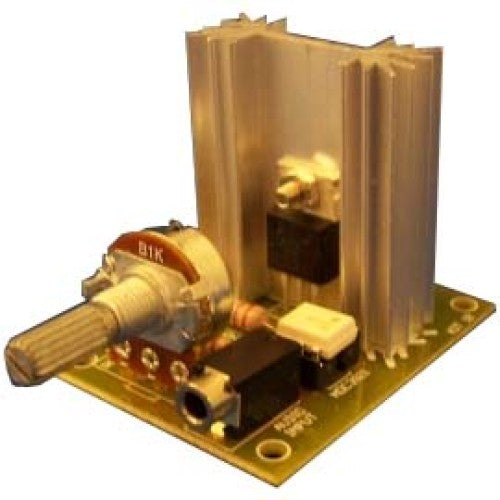

Kit 12 Audio-To-Light Modulator

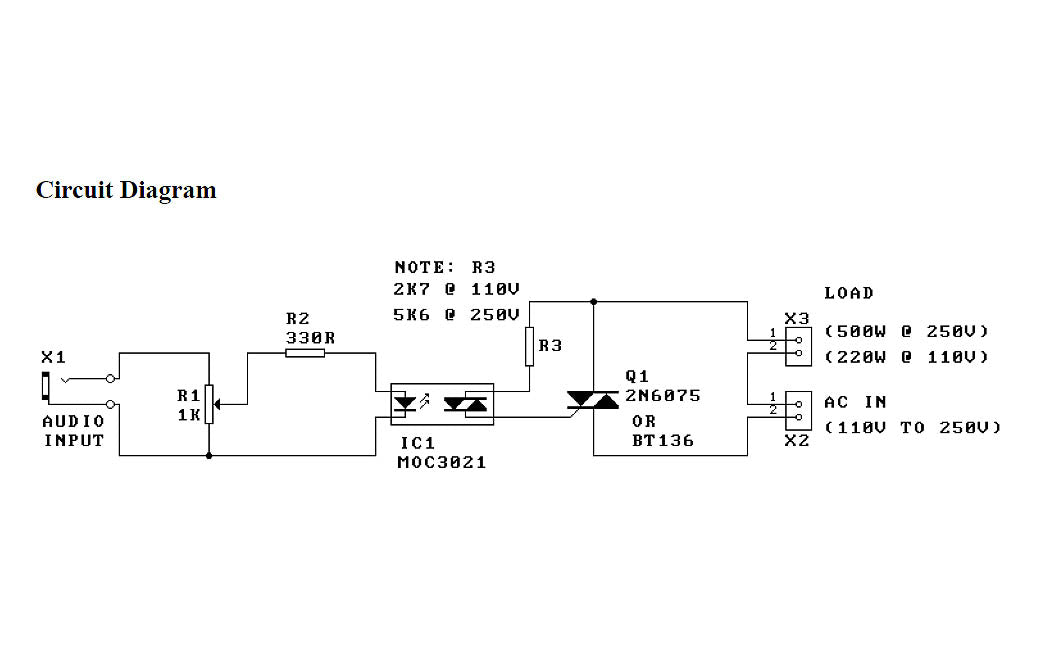

Music-to-light modulator is a circuit which controls the intensity of one or more lights in response to an audio input.

The kit is ideal to give the rhythm to any party or disco without much money. Very safe operation as it uses an optocoupler as a coupling device between the audio and the mains controlling stages of the circuit.
  • Input trigger voltage: 2.3 - 2.5V (min)
  • Operating voltage: 110 or 250 VAC
  • Power handling: 220W @ 110V or 500W @ 250V
  • PCB size: 2.16 x 1.63 inches
(To help in the decision to select an enclosure keep in mind that the heat sink used in the kit is about 1" tall.)

PLEASE NOTE !!!
THIS KIT USES 120V (or higher) MAINS ELECTRICITY AND SHOULD NOT BE ATTEMPTED BY ANYONE WITHOUT THE PROPER SKILL LEVEL. THIS SHOULD ALSO BE BUILT IN A SUITABLE PLASTIC ENCLOSURE FOR SAFETY. A FUSE IS HIGHLY RECOMMENDED. DO NOT USE LED LAMPS.

Skill Level of Item: - Basic Soldering Required
