LOAD CELL WEIGHT STRAIN SENSOR KIT 50KG 4PCS WITH HX711 MODULE

1326815 - LOAD CELL WEIGHT STRAIN SENSOR KIT 50KG 4PCS WITH HX711 MODULE

  • Sale
  • $15.95 CAD
12 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.

All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

This load sensor sometimes called a strain gauge is the same one found in digital bathroom scales. The sensor is a group of a halfbridge strain gauge.
Ways to use it:
Use one sensor with an external resistor to form a fullbridge measurement the range of a sensor range: 50kg. External resistance on the higher requirements.
Use two sensors to form a fullbridge measurement measuring range for the sum of the two sensors: 50kgx2 = 100kg
Use four sensors to form a fullbridge measurement measuring range for the sum of four sensors: 50kgx4 = 200kg

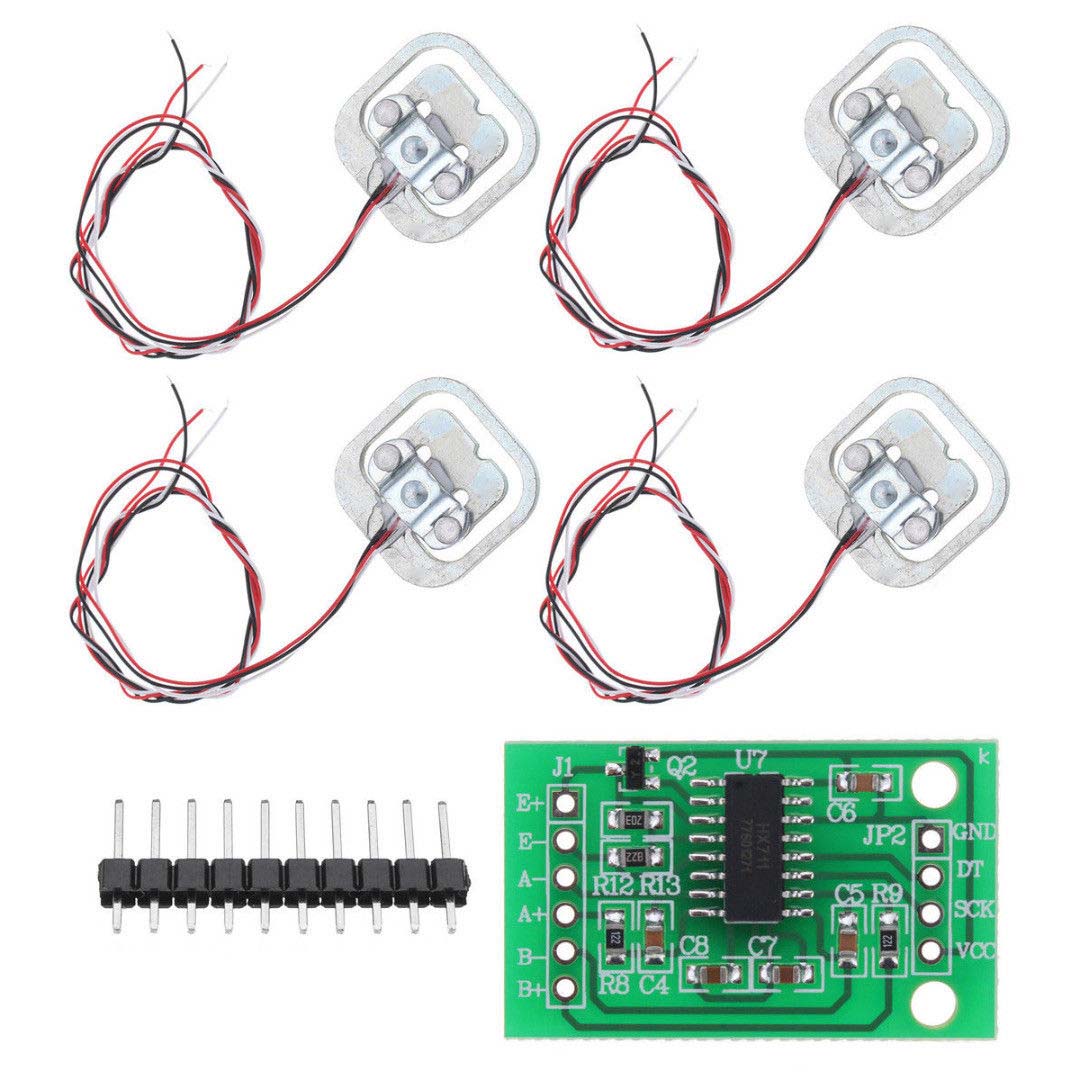

Package Includes:
  • 4 x 50kg Human Scale Load Cell
  • 1 x HX711 AD weighing module
  • 1 x 10Pin Needle
