K7102RS - METAL DETECTOR KIT K7102RS

  • Sale
  • Regular price $14.95 CAD

17 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


To come up against an electric cable while drilling a hole in a wall can have catastrophic consequences. Likewise drilling into gas water or central heating pipes can be extremely hazardous. With a handy metal detector it can now be determined beforehand whether there are metal objects to be found in a wall ceiling or floor.

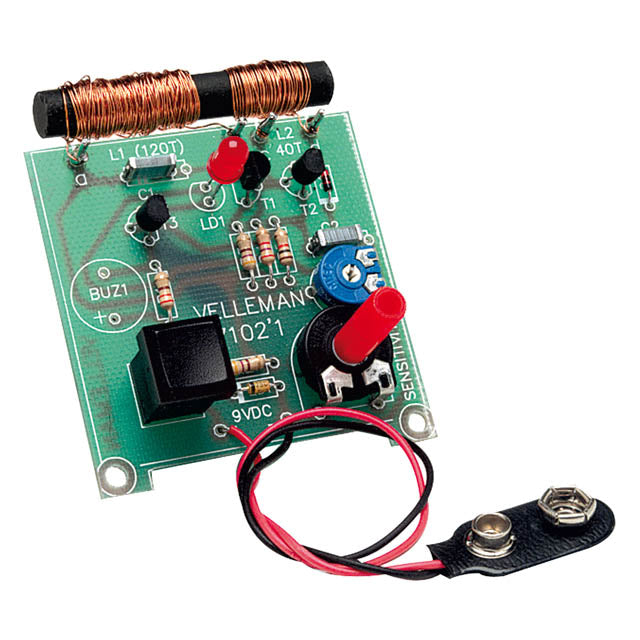

An LED indicates if a metal object is in the vicinity. If an audio signal is also desired space has been provided on the PCB for a buzzer ( type like SV4/12S ) to be connected (not included).
The PCB has been specially constructed to fit entirely into to the separately available box.
  • Metal detecting distance adjustable: up to 8cm (3.15)
  • Power supply: 9V battery (not incl.)
  • Dimensions: 56 x 64mm (2.2 x 2.5)
Troubleshooting Hint: If you experience difficulties with the calibration of the unit (I.E. if the LED doesn't turn off when there isn't any metal present ) replace C1 with a ceramic 1.2nF (122) capacitor. This behaviour is due to a spread on the component values and differences created when winding the coils.
