K8031 - ONE CHANNEL DIGITAL PC SCOPE

  • Sale
  • Regular price $219.95 CAD

In stock.

Stock Status: Limited Stock


MFR. No. : K8031
STOCK No. : 2511-BJ1

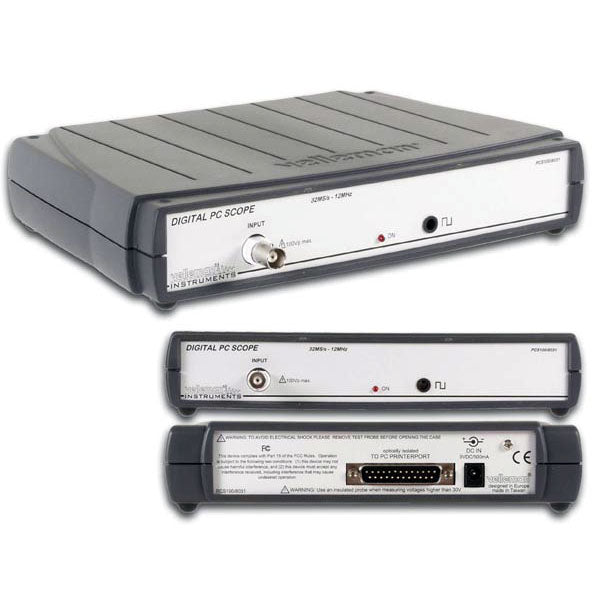

This is a digital storage oscilloscope using a computer and its monitor to display waveforms. All standard oscilloscope functions are available in the Windows program supplied. Its operation is just like a normal oscilloscope. Connection is through the computer's parallel port the scope is completely optically isolated from the computer port.

Features
1 channel
Input impedance: 1Mohm / 30pF Frequency response: 0Hz to 12MHz (± 3dB)
Step markers for voltage time and frequency.
Vertical resolution: 8 bit.

Optically isolated from computer.
Record and display of screens & data.
Auto set-up function. Supply voltage: 9 - 10V DC / 500mA
dimensions: 9'' x 6.5'' x 1.8''
weight: 14oz
Minimum System Requirements:
IBM compatible PC
Windows 98 ME (Win2000 or NT possible) XP
SVGA display card (min. 800x600)
mouse
free printer port LPT1 LPT2 or LPT3
CD Rom player

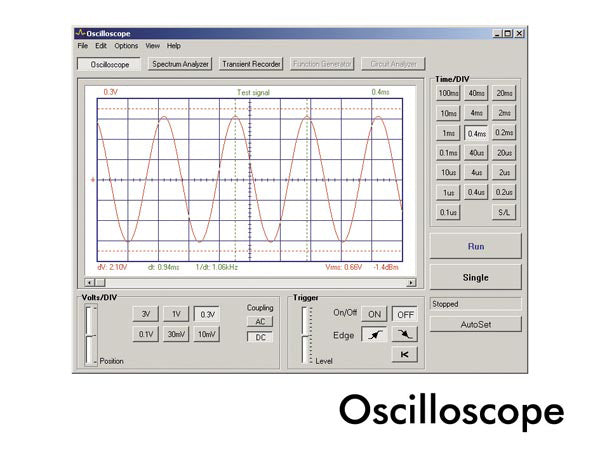

Oscilloscope:
timebase: 0.1µs to 100ms per division
trigger source: CH1 or free run
trigger level: adjustable per ½ division
input sensitivity: 10mV to 3V per division
record length: 4079 samples
sampling frequency: 800Hz to 32MHz (Real time) true RMS readout (only AC component)

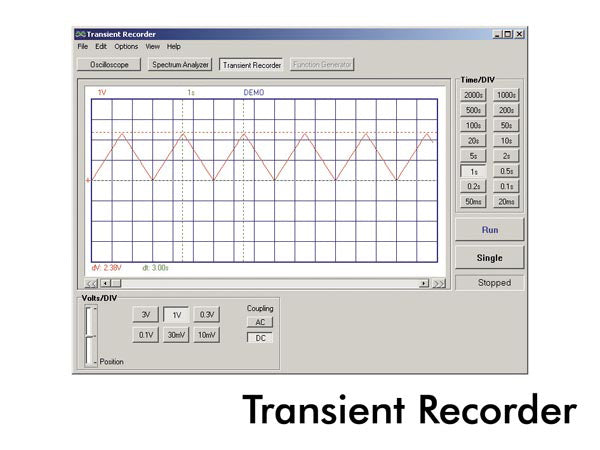

Transient Recorder:
timescale: 20ms/div to 2000s/div
max record time: 9.4hour/screen
automatic storage of data
automatic recording for more than 1 year
markers for time and amplitude
zoom function

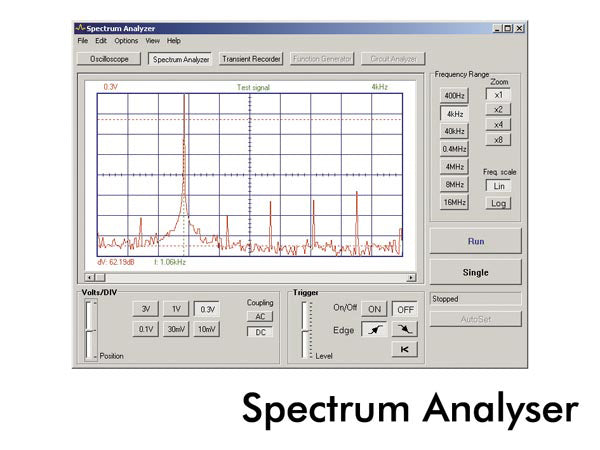

Spectrum Analyzer:
frequency range: 0 .. 400Hz to 16MHz
linear or logarithmic timescale
zoom function.
