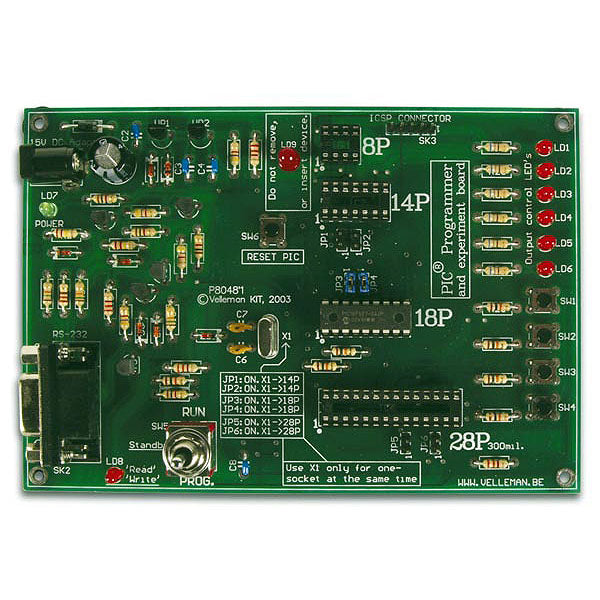

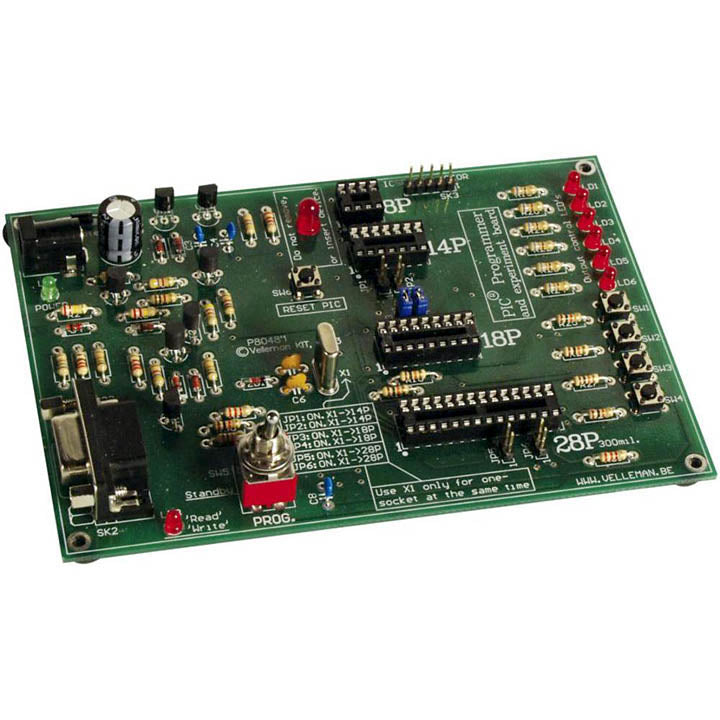

K8048RS - PIC PROGRAMMER AND EXPERIMENT BOARD

  • Sale
  • Regular price $24.95 CAD

22 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


Suitable for programming Microchip FLASH PIC microcontrollers.
Supports 4 different 300 mil. PIC controllers: 8p 14p 18p and 28p.
Test buttons and LED indicators to carry out educational experiments such as the enclosed programming examples. Easy connection to a PC through the serial port. Enclosed is a Flash Microcontroller (PIC16F627) that can be reprogrammed up to 1000 times for experimenting. Software disc to compile and load your source code is included.
Minimum system requirements: IBM Compatible PC Pentium or better Windows 95/98/ME/NT/2000/XP CDROM free serial RS232 port.
Serial cable or power supply not included.
e.g. Power supply requirements: 12Vdc unregulated or 15Vdc regulated / 300mA
Supports the following microcontrollers:
PIC12F629 PIC12F675 PIC16C83 PIC16CR83 PIC16F83 PIC16C84 PIC16CR84 PIC16F84 PIC16F84A PIC16F870 PIC16F871 PIC16F872 PIC16F873 PIC16F873A PIC16F874 PIC16F874A PIC16F876 PIC16F876A PIC16F877(A)(ICSP only) PIC16F627 PIC16F627A PIC16F628 PIC16F628A PIC16F648A PICF630 PIC16F676. PIC16F818 PIC16F819
Software disc included.
Dimensions: 5.75 x 4 inches.
