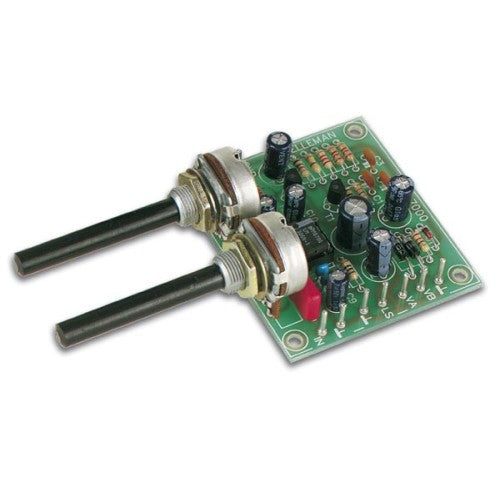

This signal tracer /injector has been designed to inject or detect a specific signal into an audio circuit in need of repair (such as amplifiers radios tone controls ...) so as to detect the fault. In this way problems can be traced more easily. The signal tracer may also be used as a simple monitor or amplifier.
- Injector: 02.5 Vrms output (adjustable)
- Output impedance: 1.5K Ohm
- Frequency: 1 kHz
- Tracer: 3.5 mV to 10 Vrms
- sensitivity (adjustable) Gain: 40 dB
- Input impedance: 50K Ohm
- Output power: 0.5 Watt / 8 Ohm
- Power supply: 79 VAC or 912 VDC / 150mA
- Dimensions: 2.4 x 2.1 inches
