GM21 - MOTOR GEAR 3-6V 11-23RPM 360:1 MINI METAL GEAR MOTOR

  • Sale
  • Regular price $28.95 CAD

18 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

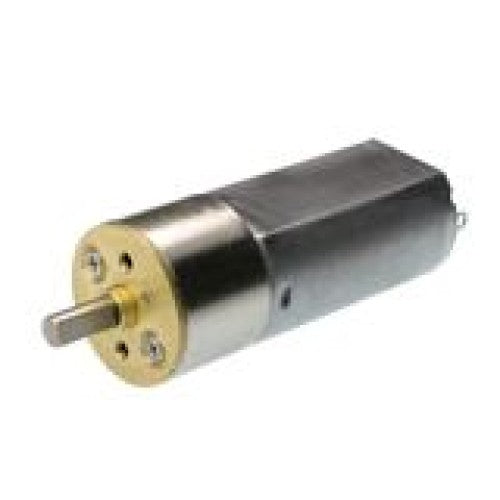

The 360:1 Mini Metal Gear Motor looks like our other mini metal gear motors
except the motor is longer and the gearing is an enclosed in a cylindrical casing.
This compact brute of a gear motor offers a measured stall torque of 103.2 In*oz (7434gm*cm) at 6V that's considerable!
Of course with a motor this small we trade the increase in torque for a decrease in speed it's among the slowest spinning motors we carry turning at a only 23RPM at 6V.
The sealed gearbox makes the motor more resistant to sideloads.
Note: The motor's mounting holes are threaded for two M2.0 metric screws
Features
  • 360:1 Mini Metal Gear Motor
  • Gear Ratio: 360.00:1 At 3 Volts
  • Unloaded RPM (3V): 11
  • Unloaded Current (3V): 38 mA
  • Stall Current (3V): 360 mA
  • Stall Torque (3V): 49.60 in*oz At 6 Volts
  • Unloaded RPM (6V): 23
  • Unloaded Current (6V): 42 mA
  • Stall Current (6V): 692 mA
  • Stall Torque (6V): 103.20 in*oz
  • Length: 47.60 mm
  • Width: 15.50 mm
  • Height: 15.50 mm
  • Weight: 26.60 g
