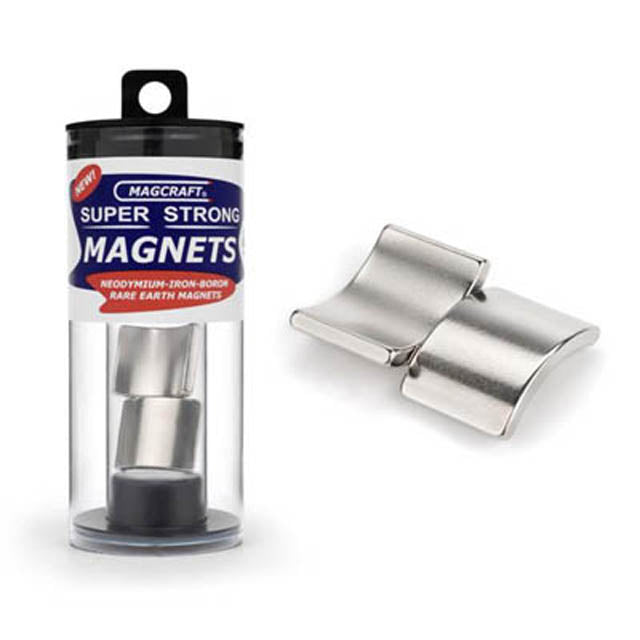

NSN0627-MAGNET ARC 19MM OR 15.87MM IR 90DEG 19.5MM LONG S RARE EARTH(2 pcs/pkg)

  • Sale
  • Regular price $19.95 CAD

In stock.


MFR. No. : NSN0627
STOCK No. : 3522-BA3-2
Rare Earth Magnet - Arc 0.75 in. Outside Radius x 0.625 in. Inside Radius x 90 Deg x 0.75 in. Long N Part Number NSN0627
Imperial Dimensions 0.75 inch outside radius x 0.625 inch inside radius x 90 deg x 0.75 inch long
Metric Dimensions 19.05 mm outside radius x 15.875 mm inside radius x 90 deg x 19.05 mm long
Material Sintered Neodymium-Iron-Boron (NdFeB)
Shape Arc
Plating Ni-Cu-Ni (Nickel)
Magnetization Direction Diameter
Grade N40
Pull Force (lbs[g]) [0]
Surface Field(G) 4551
Maximum Operating Temperature 80 Deg C (176 Deg F)
Dimensional Tolerance +/-0.005''
Magnet Quantity 2
Volume (cm3) 0
Weight (g) 8
Brand Magcraft
Packaging Magpak Tube
UPC 875661000276
Remanent Flux Density Br (kG [T]) 12.5-12.8 [1.25-1.28]
Coercivity HcB (kOe [kA/m]) >=10.9 [>=867]
Intrinsic Coercivity HcJ (kOe [kA/m]) >=12.0 [>=995]
Maximum Energy Product Bhmax (MGOe [kJ/m3]) 38-41 [302-326]
Density p(g/cm3) >=7.45
Compression Strength (Mpa) 600-1200
Bending Strength (Mpa) 150-380
Vickers Hardness (HV) 460-660
Recoil Permeability (urec) 1.05
Electrical Resistance (Ohm*mm2/m) 1.25-1.55
Curie Temperature Tc (°C) 310
Thermal Expansion Coefficient 100°C//(x10^-6/K) 6
Thermal Expansion Coefficient 100°C?(x10^-6/K) -1
