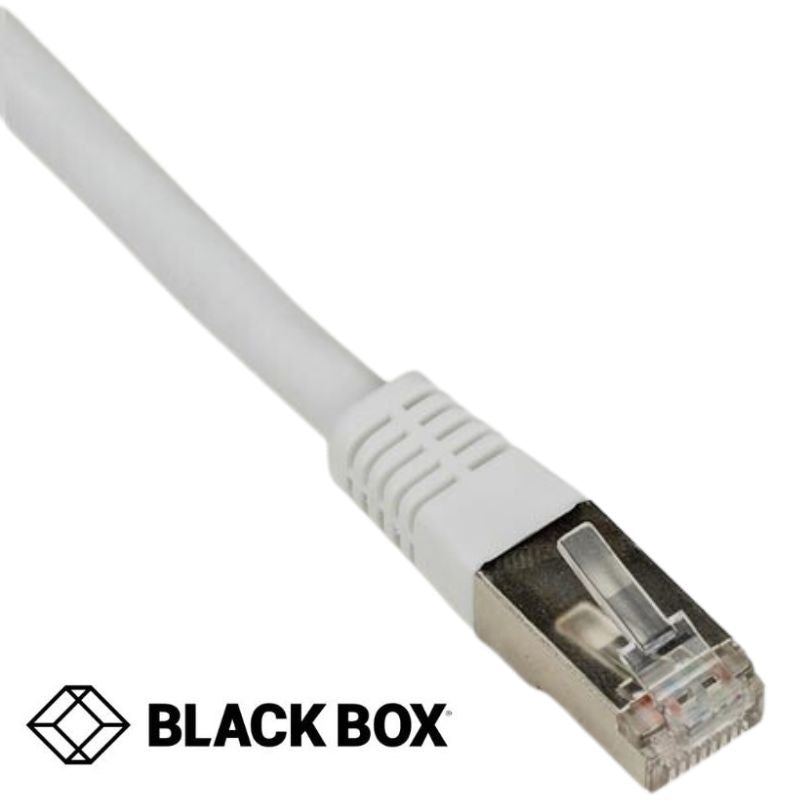

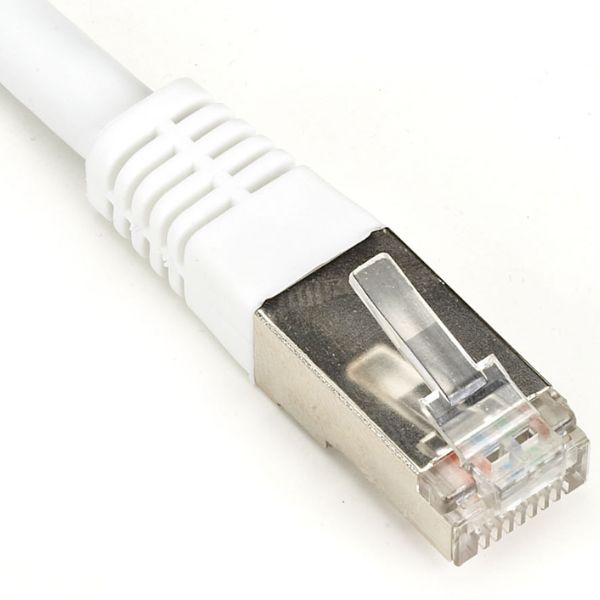

CAT5e 100MHz Molded SlimLine Stranded Ethernet Patch Cable Shielded (F/UTP) CM PVC (RJ45 M/M)
- Shielded CAT5e cable constructed to protect against EMI/RFI interference
- Cable tested to meet or exceed CAT5e industry standard of 100 MHz
- Cabling ETL verified to ANSI/TIA568B2
- 50micron goldplated contacts provide superior conductivity
- Molded slimline boots are ideal for highdensity applications
- Connector designed for an insertion and extraction life of 750 cycles
- This cable is perfect for 1000BASET 100BASETX 10BASET and other highspeed applications
| General | |
| Connector Plating | 50μ |
| Cable Type | Stranded |
| Frequency | Up to 100 MHz |
| Shielded | F/UTP |
| Attenuation (Maximum) | 22.5dB at 100MHz |
| Return Loss (Minimum) | 19dB at 100MHz |
| PSNEXT (Minimum) | 32.3dB at 100MHz |
| Approvals | RoHS CE UL/cUL |
| NEXT (Minimum) | 35.3dB at 100MHz |
| Snagless Connector | No |
| Conductor Gauge | 26 AWG |
| Impedance | 100± 15ohms |
| Jacket | CM PVC |
| Standards | TIA/EIA568B.2 Category 5e |
| Item Specifications | |
| Connector A Type/Gender | (1) RJ45 (Male) |
| Connector B Type/Gender | (1) RJ45 (Male) |
