Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
GigaBase 3 Premium Cable constructed to exceed industry standards
Cable tested to 350 MHz surpassing 100MHz CAT5e standard
Cabling ETL verified to ANSI/TIA568C.2
50micron goldplated contacts provide superior conductivity
Connector designed for an insertion and extraction life of 750 cycles
Offers superior nearend crosstalk (NEXT) compared to standard CAT5E cable
Snagless boots prevent connector damage due to snags during installation
Ideal for highspeed applications

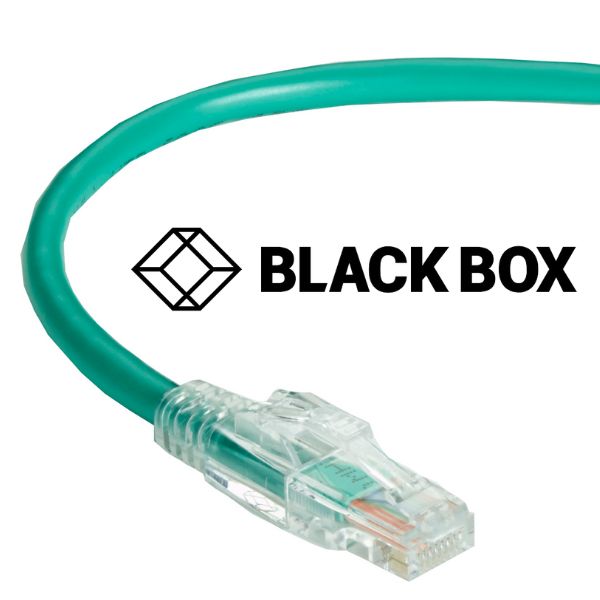

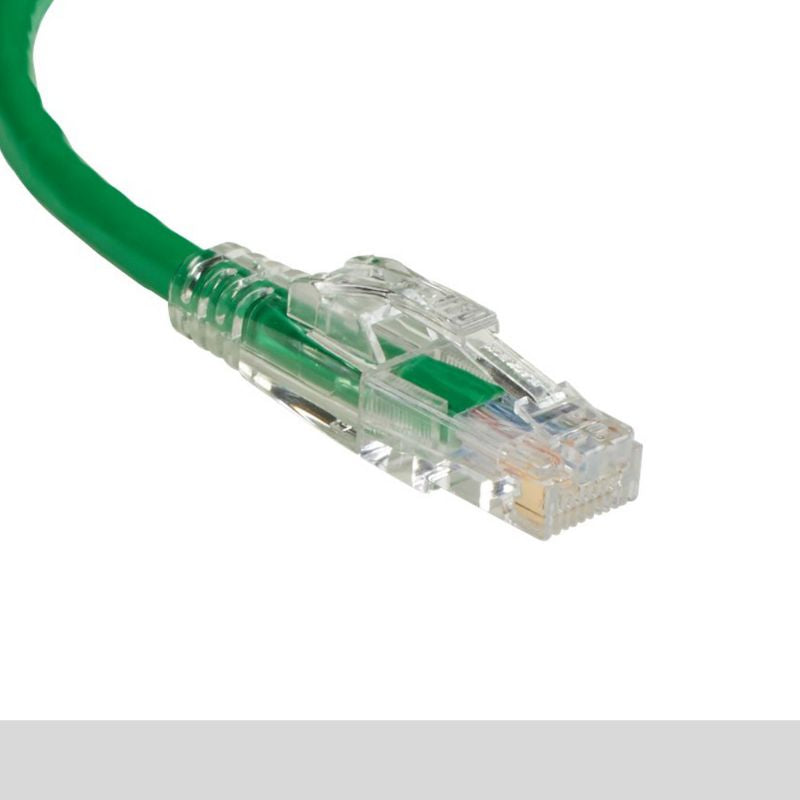

GigaBase® 3 CAT5e 350MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
- GigaBase 3 Premium Cable constructed to exceed industry standards
- Cable tested to 350 MHz surpassing 100MHz CAT5e standard
- Cabling ETL verified to ANSI/TIA568C.2
- 50micron goldplated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior nearend crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- Ideal for highspeed applications
Electrical Performance | |
Attenuation | (Maximum) 22.5dB at 100 MHz 45.8dB at 350MHz |
NEXT | (Minimum) 35.3dB at 100 MHz 27.1dB at 350MHz |
PSNEXT | (Minimum) 32.3dB at 100 MHz 24.1dB at 350MHz |
Return Loss | (Minimum) 19dB at 100 MHz 4.56dB at 350MHz |
General | |
Approvals | TIA/EIA568C.2 Category 5e |
Conductor Gauge | 24 AWG |
Impedance | 100+/15 ohms |
Jacket | CM PVC |
Shielding | UTP |
Conductor Type | Stranded |
Standards | TIA/EIA568C.2 CAT5e |
Cable Frequency | Up to 350 MHz |
Connector Plating | 50µ |
Connector Type | Snagless |
Item Specifications | |
Connector A Type/Gender | (1) RJ45 (Male) |
Connector B Type/Gender | (1) RJ45 (Male) |
