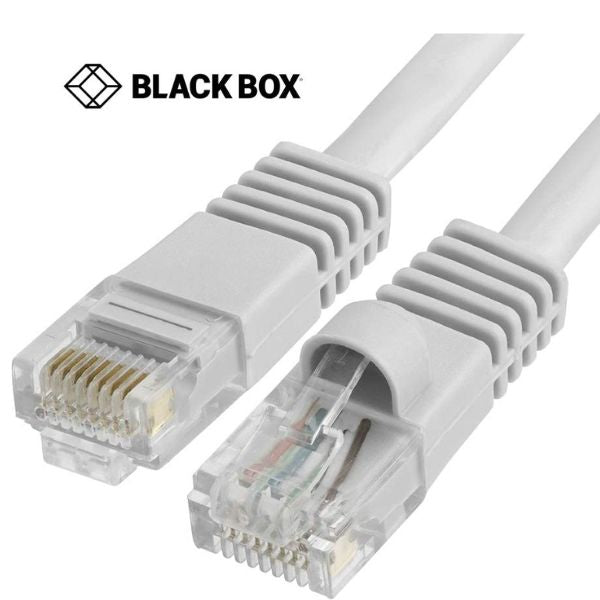

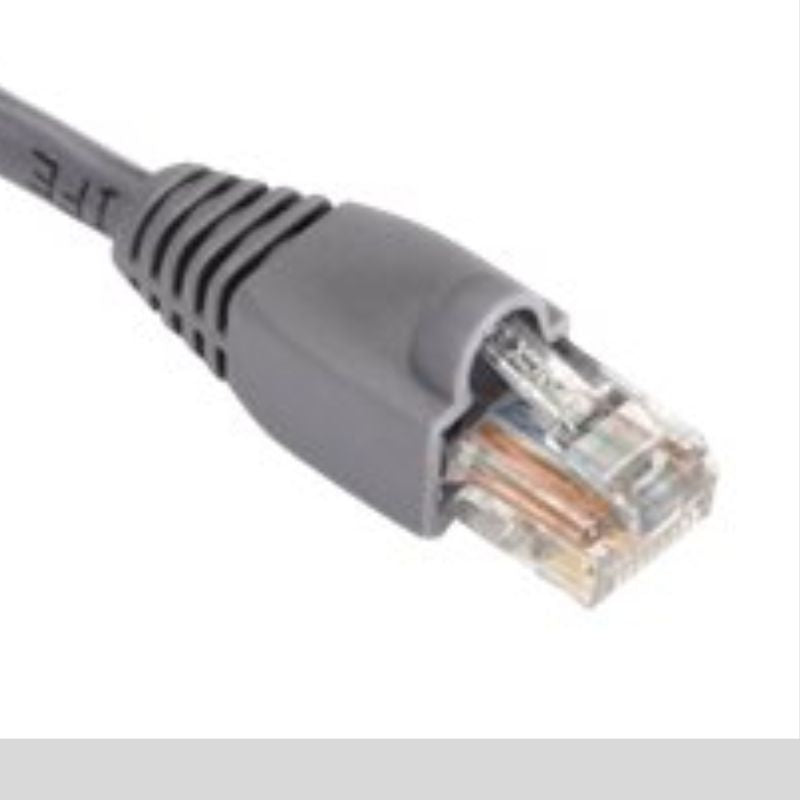

GigaBase® CAT6 550MHz Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)
- Constructed to exceed industry standards
- Tested to 550 MHz surpassing 250MHz CAT6 standard
- Cabling is component level verified to ANSI/TIA568C2
- 50micron goldplated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior nearend crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- This cable is ideal for 1000BASET 100BASETX 10BASET and other highspeed applications
General Approvals RoHS CE UL/cUL Connector Plating 50μ Shielded No Return Loss (Minimum) 15.6dB at 250MHz 2.60dB at 550MHz NEXT (Minimum) 38.3db at 250MHz 33.2dB at 550MHz PSNEXT (Minimum) 36.3dB at 250MHz 31.2dB at 550MHz Snagless Connector Yes Attenuation (Maximum) 40.5dB at 250 MHz 62.1dB at 550MHz Cable Jacket CM PVC Cable Type Stranded Conductor Gauge 24 AWG Frequency Up to 550 MHz Impedance 100 ± 15 ohms Cable Type Stranded Standards TIA/EIA568C.2 Category 6 Conductor Gauge 24 AWG Impedance 100 ± 15 ohms Standards TIA/EIA568C.2 Category 6 Frequency Up to 550 MHz Item Specifications Connector B Type/Gender (1) RJ45 (Male) Connector A Type/Gender (1) RJ45 (Male) Connector B Type/Gender (1) RJ45 (Male)
