29 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com
NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.
All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.

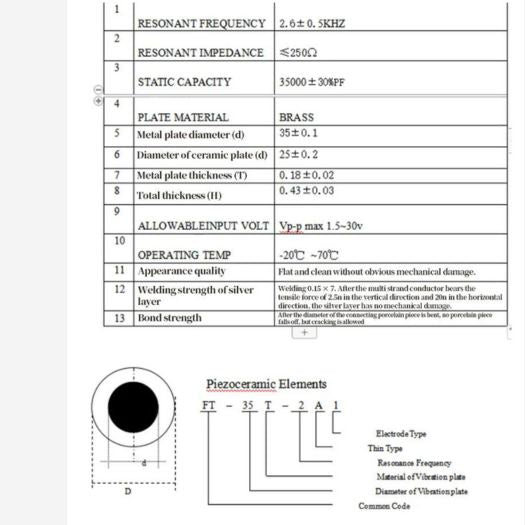

RESONANT FREQUENCY 2.6±0.5KHZ
RESONANT IMPEDANCE
<=250 OHMS
STATIC CAPACITY
35000±30%PF
PLATE MATERIAL
BRASS
Metal plate diameter (d)
35±0.1mm
Diameter of ceramic plate (d)
25±0.2mm
Metal plate thickness (1)
0.18±0.02
Total thickness (H)
0.43 ±0.03
ALLOWABLE INPUT VOLT Vpp max 1.530v
OPERATING TEMP 20°C70°C
