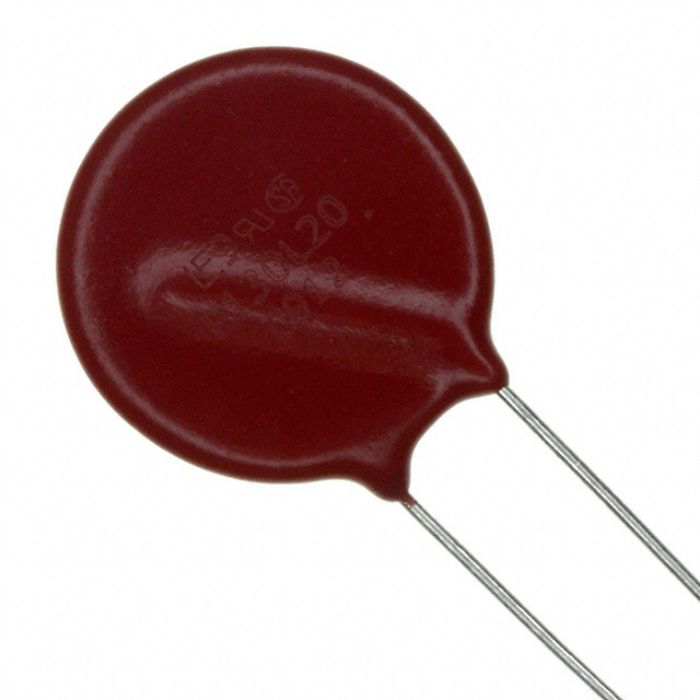

The LA Series of transient voltage surge suppressors are radiallead varistors (MOVs) that are designed to be operated continuously across AC power lines. These UL recognized varistors require very little mounting space and are offered in various standard lead form options.
MetalOxide Varistors Datasheet© 2024 Littelfuse Inc.
Specifications are subject to change without notice.
Revised: VL 16/9/2024
2LA Series
Radial Lead Varistors
LA Series Ratings & Specifications
Part V130LA20BP
Number Branding P130L20B
Model Size Disc Dia. 20 mm
VMAX AC (V) 130
Max Rated DC Voltage 175
Surge Energy (WTM) (J) 70
Peak Pulse Current (ITM) 1xAmps (A) 6500
VNDC MIN (V) 184
VNDC MAX (V) 220
Max Clamp Voltage (Vc) (V) 325
Clamp Polarity Bidirectional
Typ Capacitance (pF) 1900
