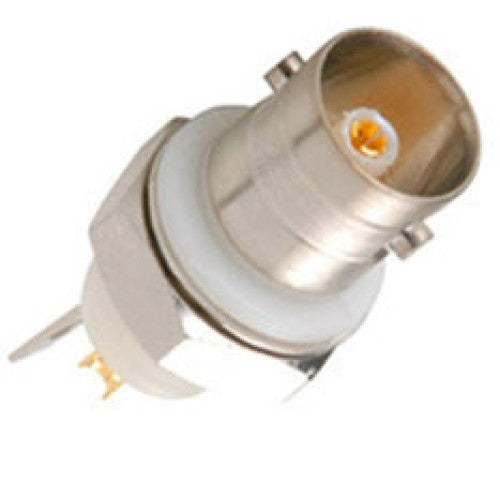

BNC ISOLATED CHASSIS JACK
CONNECTOR SPECIFICATIONS:
MATERIALS
- Body: Nickel Plated Brass
- Contacts: Gold Plated Brass or Phosphor Bronze
- Dielectric: Derlin
- Nominal Impedance: 50Ω
- Frequency Range: 04 GHz
- Voltage Rating: 500VAC
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: 5000MΩ min.
