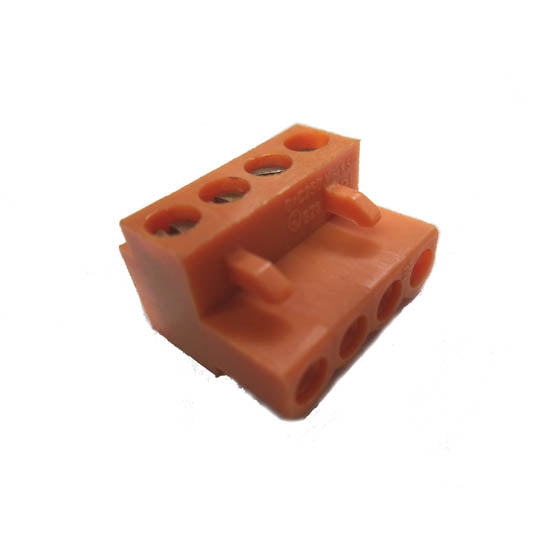

Pitch 5.08mm
4 position
Screw M2.5 steel Zinc Plated
Wire Guard Phosphor bronze NI Plated
Contacts Brass Tin Plated
Housing PA66 UL94V0
Electrical:
Rated IEC 15A UL 10A @ 300V
Withstanding Voltage 2500v/min
Wire Range 2812AWG
Mechanical;
Temperature Range 40 to +105 degree C
Max soldering +150C for 5 Sec
Torque 0.4NM (3.5lb.in)
Strip Length 78mm
THIS PART MATES WITH GTSA4312
