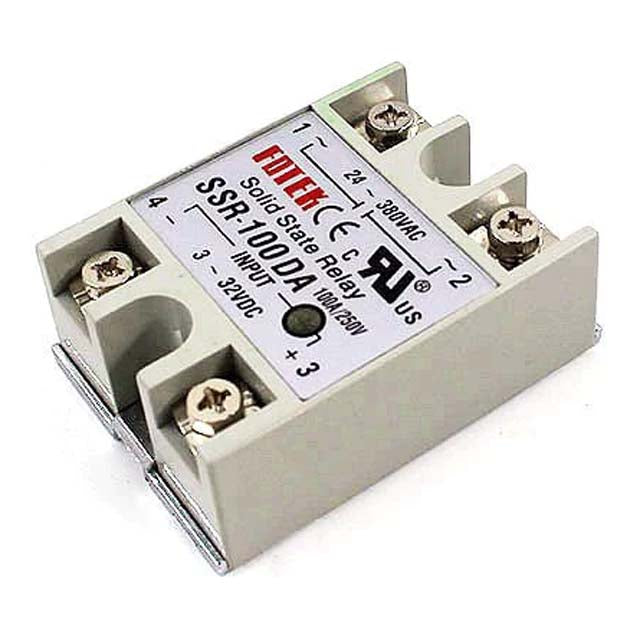

SSR-100DA - RELAY SSDC 3-32V 100A/380VAC CONTROL CURRENT 25MA

  • Sale
  • Regular price $39.95 CAD

21 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


Input voltage: 332VDC
Output voltage: 24380VAC
Output current: 60A
Working voltage: 250V
On voltage: ≤1V
Oneoff Time: ≤10ms
Off leakage Current: ≤2mA

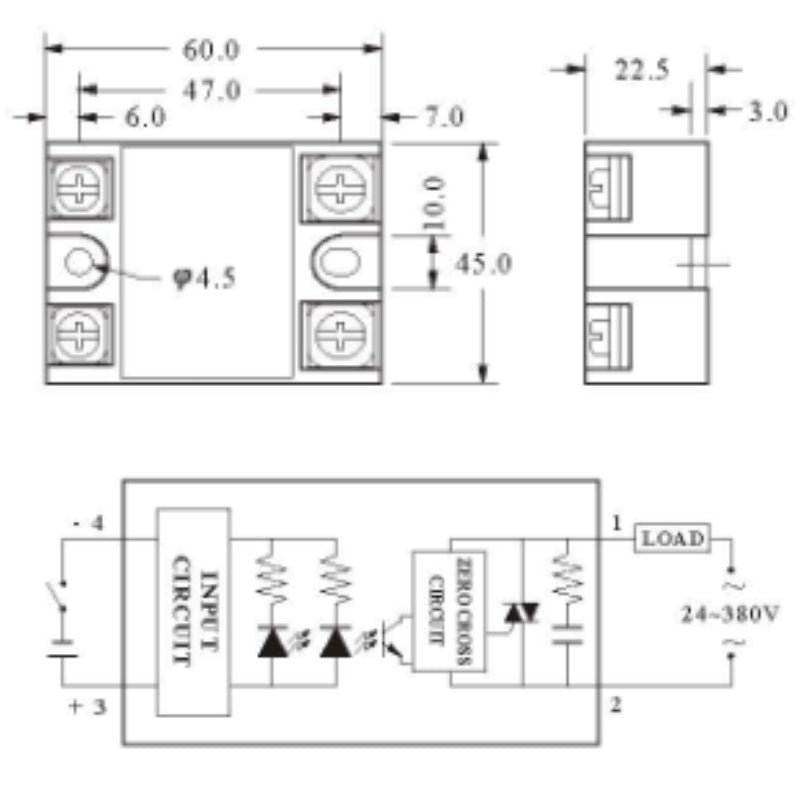

Item size: 60*45*23mm


Main Application:

Industrial automation installment

Computer periphery connection

AC motor control

Automatic fire control and security system

Street light signal light traffic light etc
