Only 5 In-Stock Remaining.
- Primary 117/234 VAC 50/60 Hz.
- All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 series.

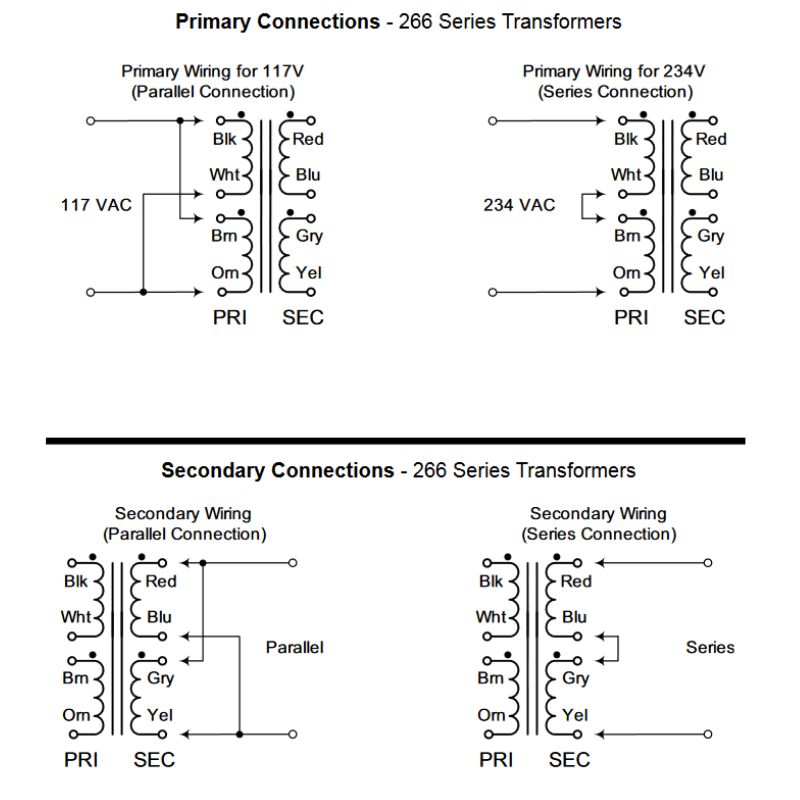

- Secondaries can be used as; a center tapped secondary parallel connected or used individually (except 266LA25).
- Units are designed for use with all windings engaged.
- Open style.
- Minimum 6 long leads.
- Dual bobbin design no electrostatic shield required.
- We use Class B insulation (130 degrees C) for extra protection UL listed as a Class A (105 degree C) design
- HiPot test of 2 000V RMS.
- UL listed (# E207860) Type 3AH
- CSA certified (209651)
