166N24 - TXFR 24VCT 4A IP115V CHMT

  • Sale
  • Regular price $65.95 CAD

14 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


Features
  • Economical single primary 115 VAC 60 Hz. (or 117 50/60 Hz. see table) (If you require117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.

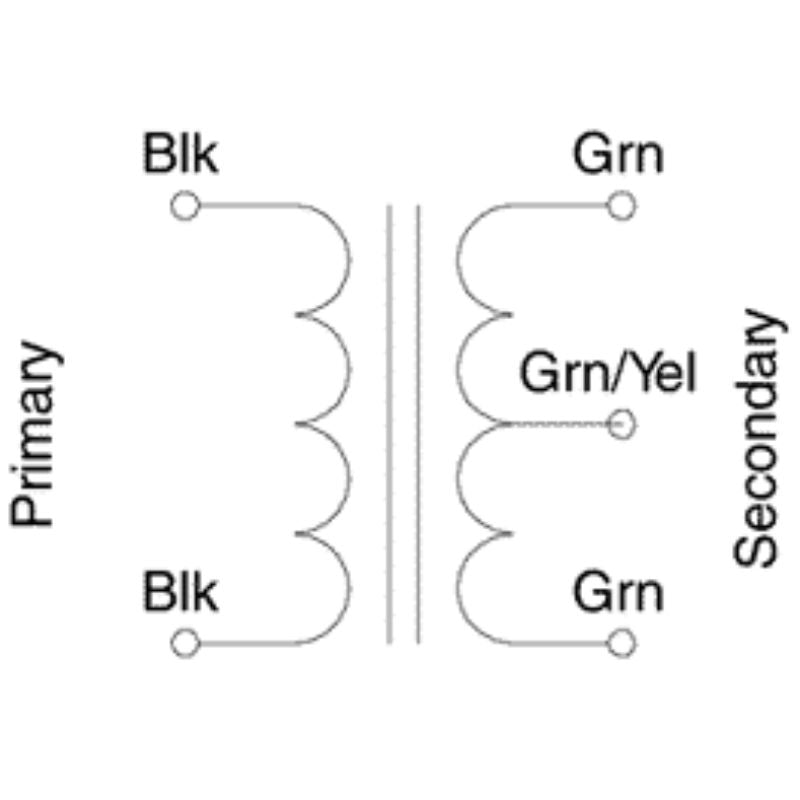

  • Most secondaries are center tapped (C.T.) VAC (RMS)

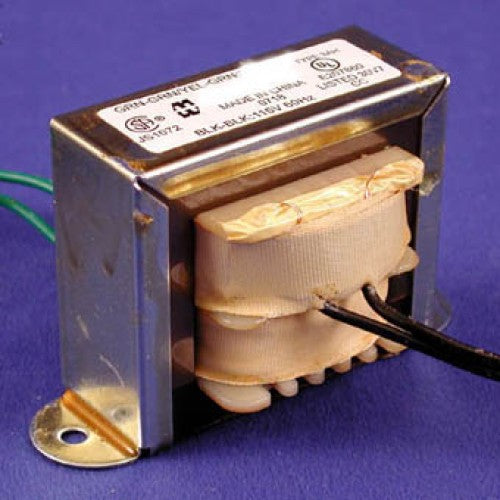

  • Open style channel bracket two hole chassis mount.
  • Minimum 6 long leads.
  • Dual bobbin design no electrostatic shield required.
  • We use Class B insulation (130 degrees C) for extra protection UL listed as a Class A (105 degree C) design
  • HiPot test of 2 000V RMS.
  • UL listed.
  • CSA certified.
