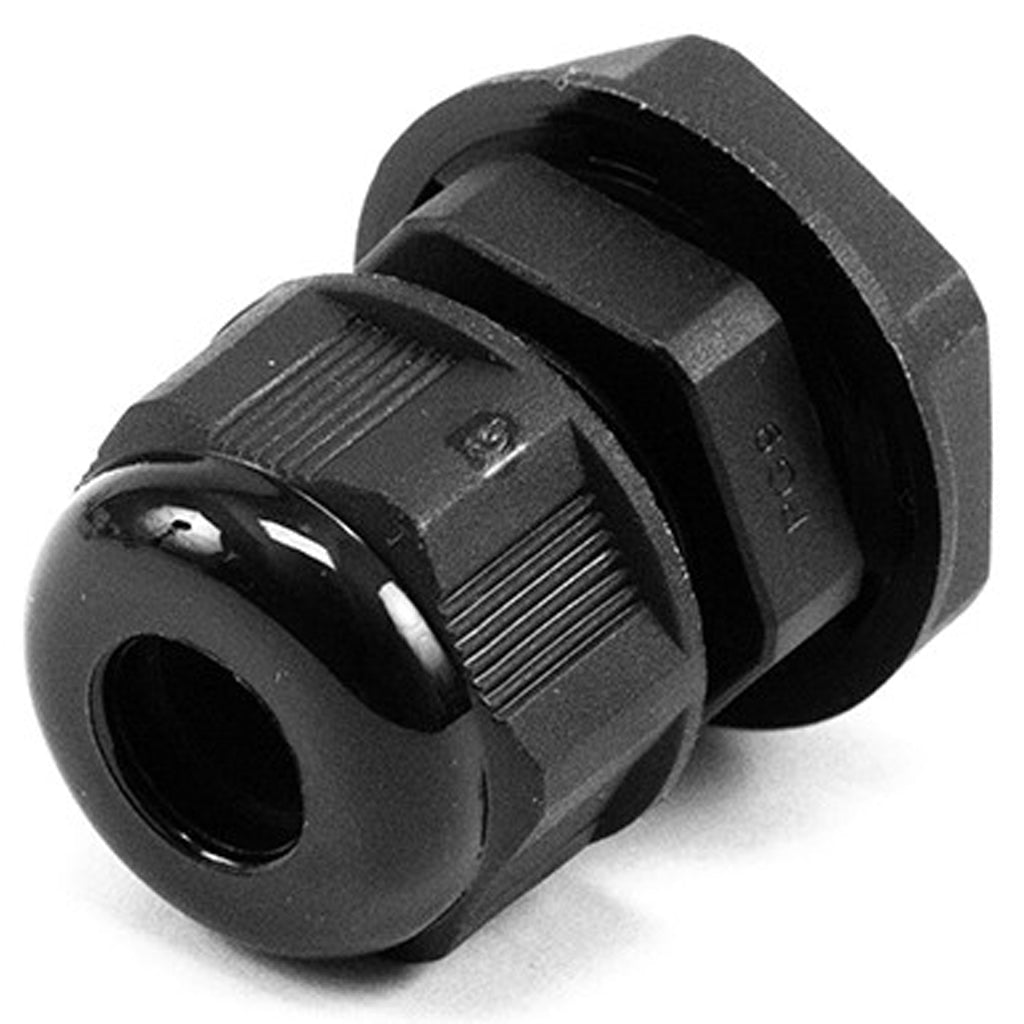

Liquidtight cordgrip made from nylon
-
Available in black (RAL 9005)
-
Used where cable is entering or leaving an enclosure.
-
Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
-
The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
-
Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
-
Nylon locknut and EPDM oring included (as shown).
-
Operating Temperatures:
-
Static state: 40°C to 100°C (up to 120° instantaneous)
-
Dynamic state: 20°C to 80°C (up to 100° instantaneous)
-
-
Designed to meet NEMA Type 4 4X 6 6P 12 & 13 Protection to IP68.
-
UL94V2 flammability rating.
-
UL listed.
