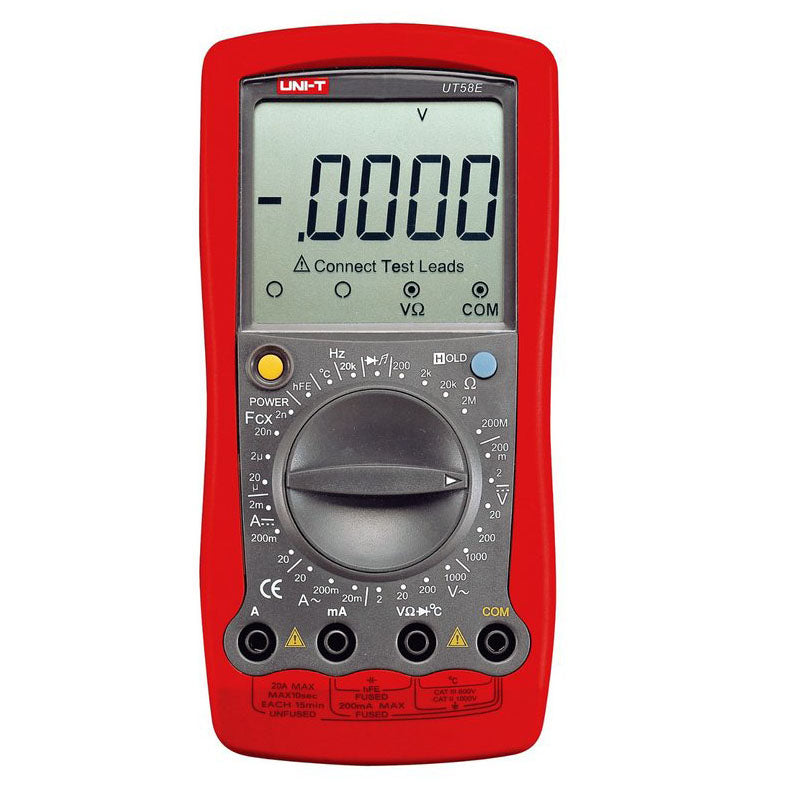

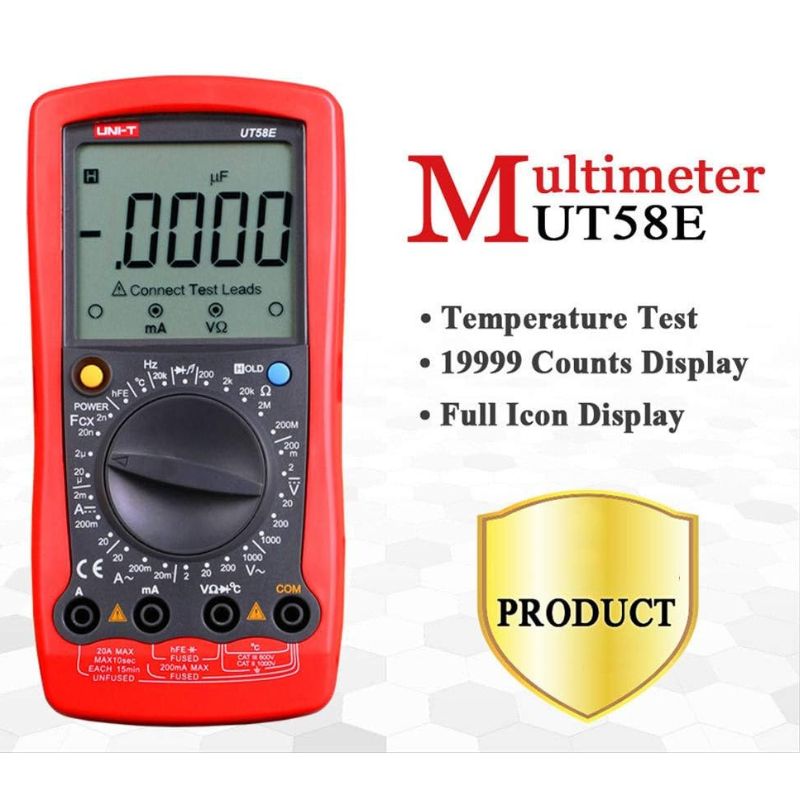

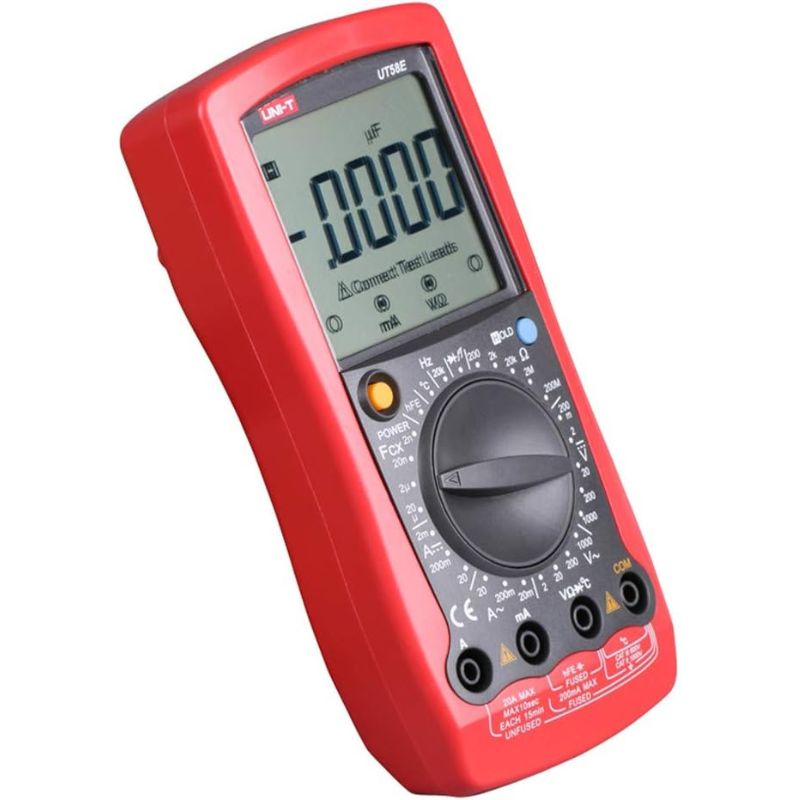

UT58E - MULTIMETER DIGITAL 20A CAP/DIODE/HFE/TEMP/VOLT/CUR

  • Sale
  • Regular price $94.95 CAD

15 In-Stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com

NOTE:
When you proceed to CHECKOUT, you will have an option for Curb-Side Pickup Click button and select location.


All Items in your cart must be available at your desired store location for Sayal to offer Curb-Side Pickup for that location.


Specifications Range Best Accuracy
Model   UT58E
DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.05%+3)
AC Voltage (V) 2V/20V/200V/1000V ±(0.5%+10)
DC Current (A) 2mA/20mA/20A ±(0.5%+5)
AC Current (A) 20mA/200mA/20A ±(0.8%+10)
Resistance (Ω) 200Ω/2KΩ/20KΩ/2MΩ/200MΩ ±(0.5%+10)
Capacitance (F) 2nF/20nF/2μF/20μF  ±(3%+4)
Frequency (Hz) 20KHz ±(1.5%+5)
Temperature (°C) 40 °C ~ 1000°C ±(1%+30)
Features
Display Count 2000
Manual Range
Diode
Transistor
Auto Power Off
Continuity Buzzer
Data Hold
Low Battery Indication
Full Icon Display
Input Impedance for DCV Around 10MΩ
Test Lead Connection Indications
General Characteristic
Power 9V Battery(6F22)
LCD Size 60mm×54mm
Product Color Red and Grey
Product Net Weight 350g (Including holster)
Product Size 179mm×88mm×39mm

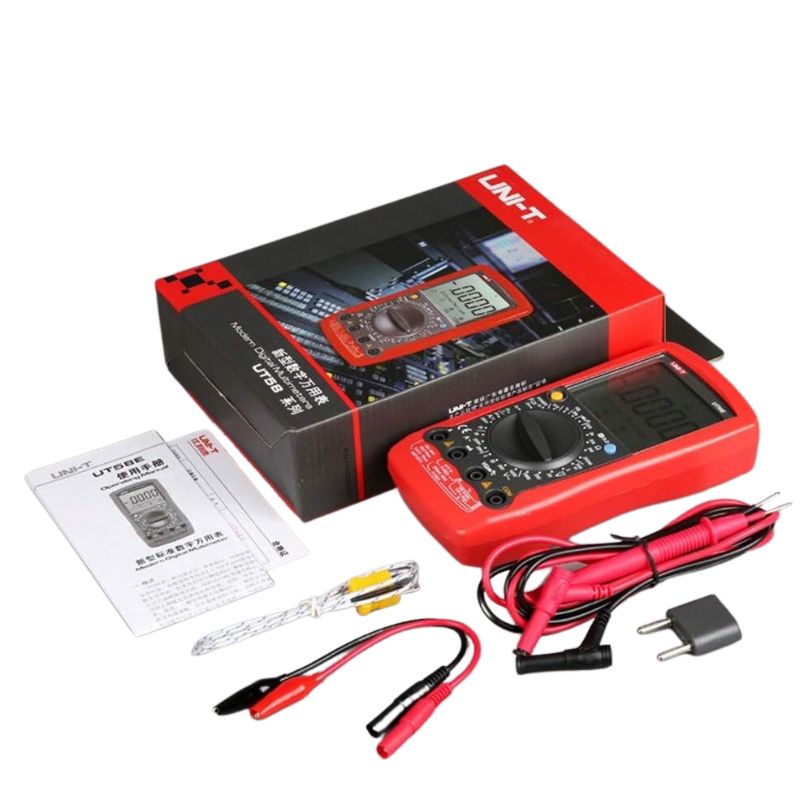

Standard Accessories Battery Test Lead Holster MuliPurpose Socket Point Contact Temperature Probe
Standard Individual Packing Gift Box English Manual
Standard Quantity Per Carton 40 PCs
Standard Carton Measurement 598mm×418mm×340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight 27 Kg
